NetBAY Power Distribution Units
175
have more than one power cord. To remove all electrical current from the device,
ensure that all power cords are disconnected from the power source.
Cabling instructions for vertical-mount PDUs
If your Rack PDU came with more than two line cords, select either the high-voltage
cords or the low-voltage cords for your installation. Use the following procedure to
connect and route cables for Rack PDUs that you mounted vertically in the side of
your rack cabinet:
1. Connect one of the line cords to the main inlet on the Rack PDU. Use the line cord
that you will connect to your primary power source.

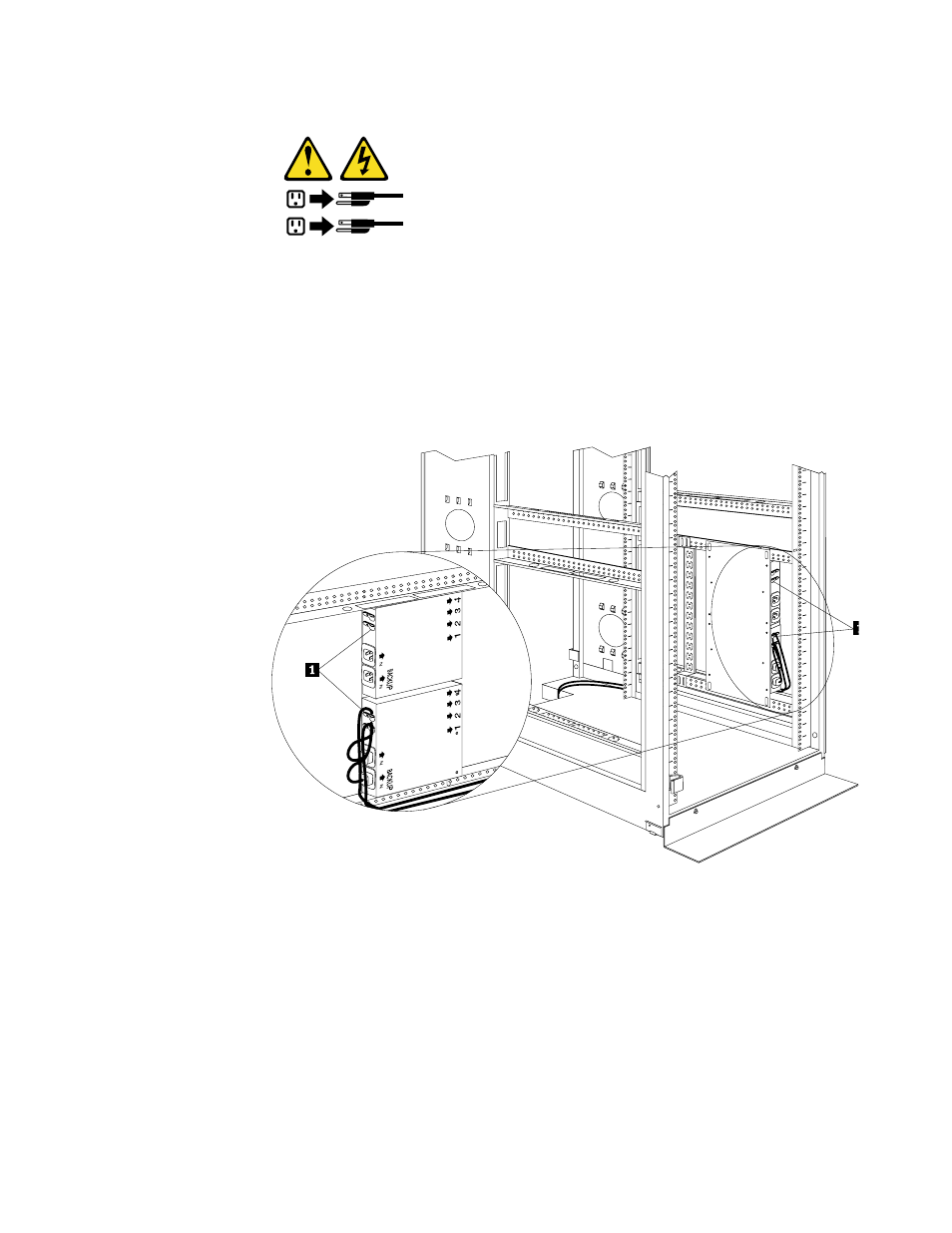

Figure 84. Connecting and routing the line cords
2. Connect the other line cord to the Backup inlet on the Rack PDU. Use the line
cord that you will connect to your backup power source.
3. Remove the screws on the cable clamps c1d and route the line cords through the
clamps; then, reinstall the screws on the cable clamps
c1d and repeat step 1. and
step 2. for the other device if you installed two devices.
4. Route the line cords down and toward the rack side braces; then, route the line
cords along the side brace towards the back of the rack cabinet and secure them
with the cable straps that come with this option.
5. Route each line cord towards a dedicated independent power source, such as a
UPS or electrical outlet. Use the provided cable straps to secure the line cords
1
2
MAIN
MAIN
