NetBAY Power Distribution Units
169

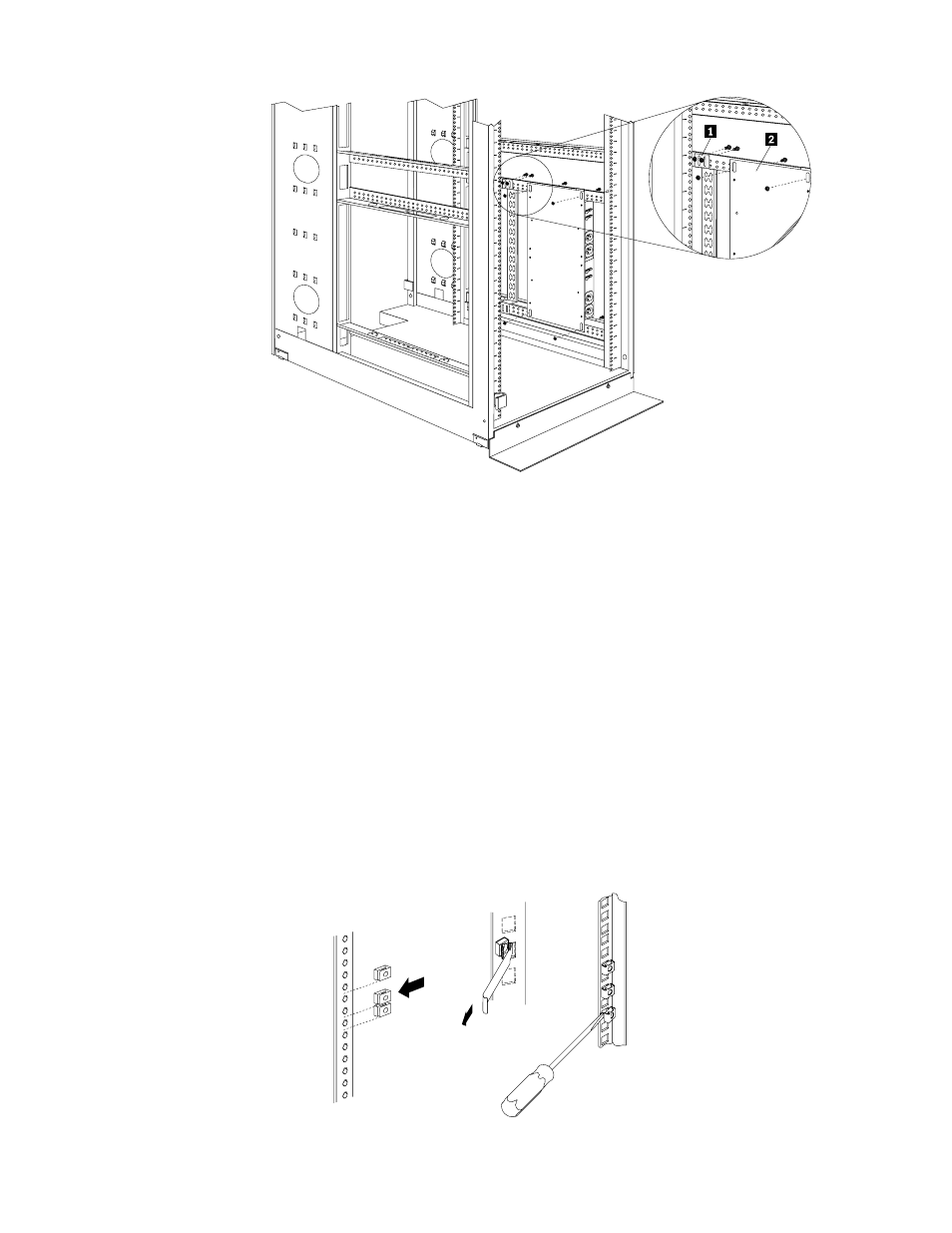

Figure 79. Installing the vertical mounting plate and cable-management bracket
5. Install the cable-management bracket 1 beside the vertical mounting plate with
four M6 screws and nuts that come with this option.
Proceed to “Cabling your PDUs” on page 173 for instructions on how to cable
your Rack PDU.
Installing a single device horizontally
Use the following procedure to mount a single Rack PDU horizontally in your rack
cabinet:
1. Refer to the documentation that comes with your rack cabinet for additional
information.
Notes:
a. Removing the rack doors and side panels might make your Rack PDU
installation easier.
b. Use clip nuts for rack cabinets with round holes; use cage nuts for rack
cabinets with square holes.
Cage
nuts
Cage
nuts
Clip
nuts
