NetBAY 42 Enterprise Rack (Type 9308 Models 42P, 42X, 4SA, 4SB, 42S, 42E)
107

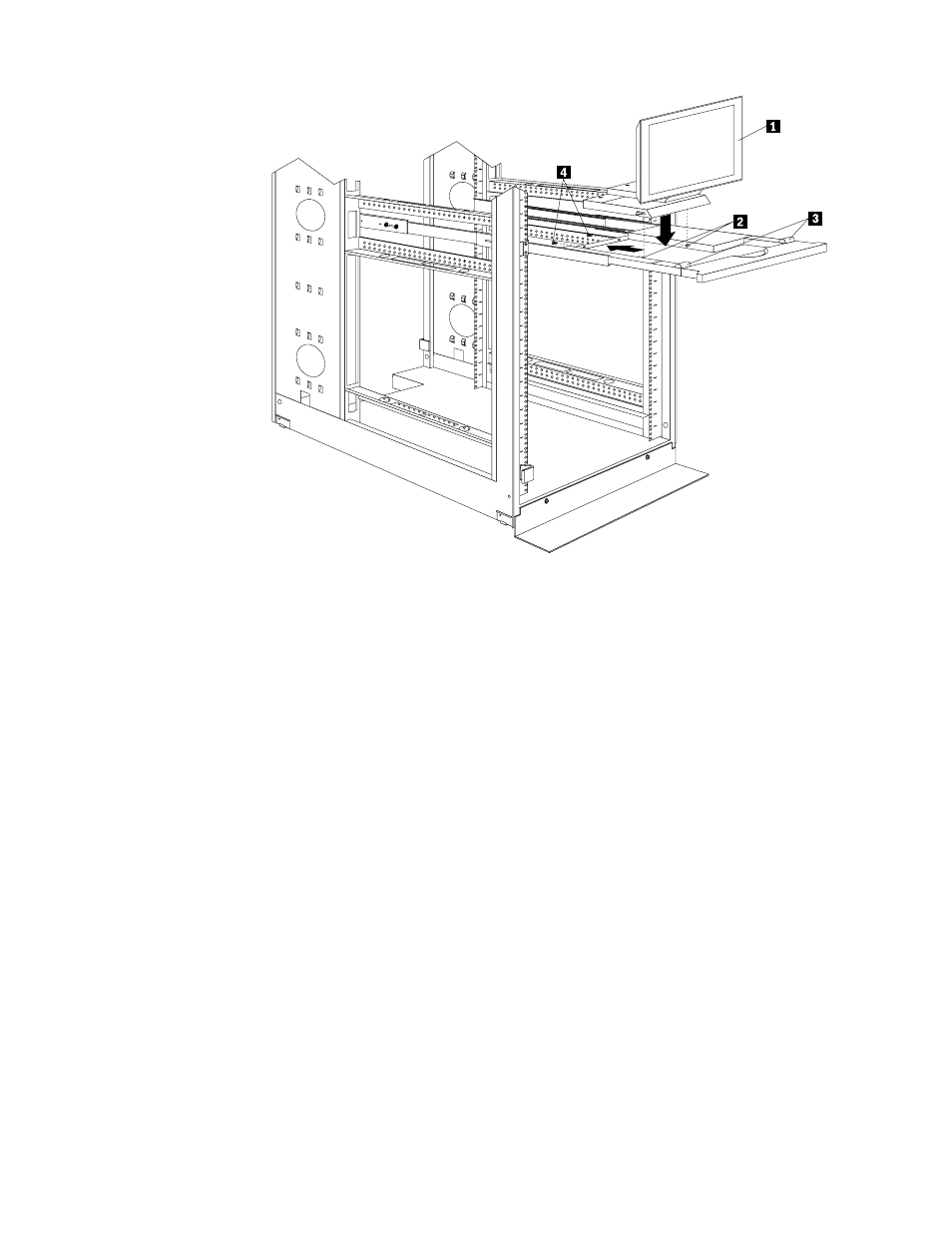

Figure 52. Installing the flat panel monitor in the keyboard tray
Note: Clean the installation area on the keyboard tray with a suitable cleaning
agent, such as alcohol, before installing the rubber bumpers on the front of
the keyboard tray.
5. Open the flat panel monitor c1d to its full upright position and align the grooves in
the stand with the mounting studs
c2d in the keyboard tray. When the monitor
stand is sitting inside the keyboard tray, slide it towards the back until it stops.
Note: Install or remove the flat panel monitor only when the display is in its
upright position.
6. Secure the monitor stand in the back of the keyboard tray with the two provided
screws
c4d.
7. Place the flat panel monitor power supply, which came with your flat panel
monitor, inside the monitor stand. If necessary, insert the power supply spacer
c3d behind the power supply and over the cable to keep the power supply in
place.
