Hardware Maintenance Manual: IBM PC Server/Enterprise Racks

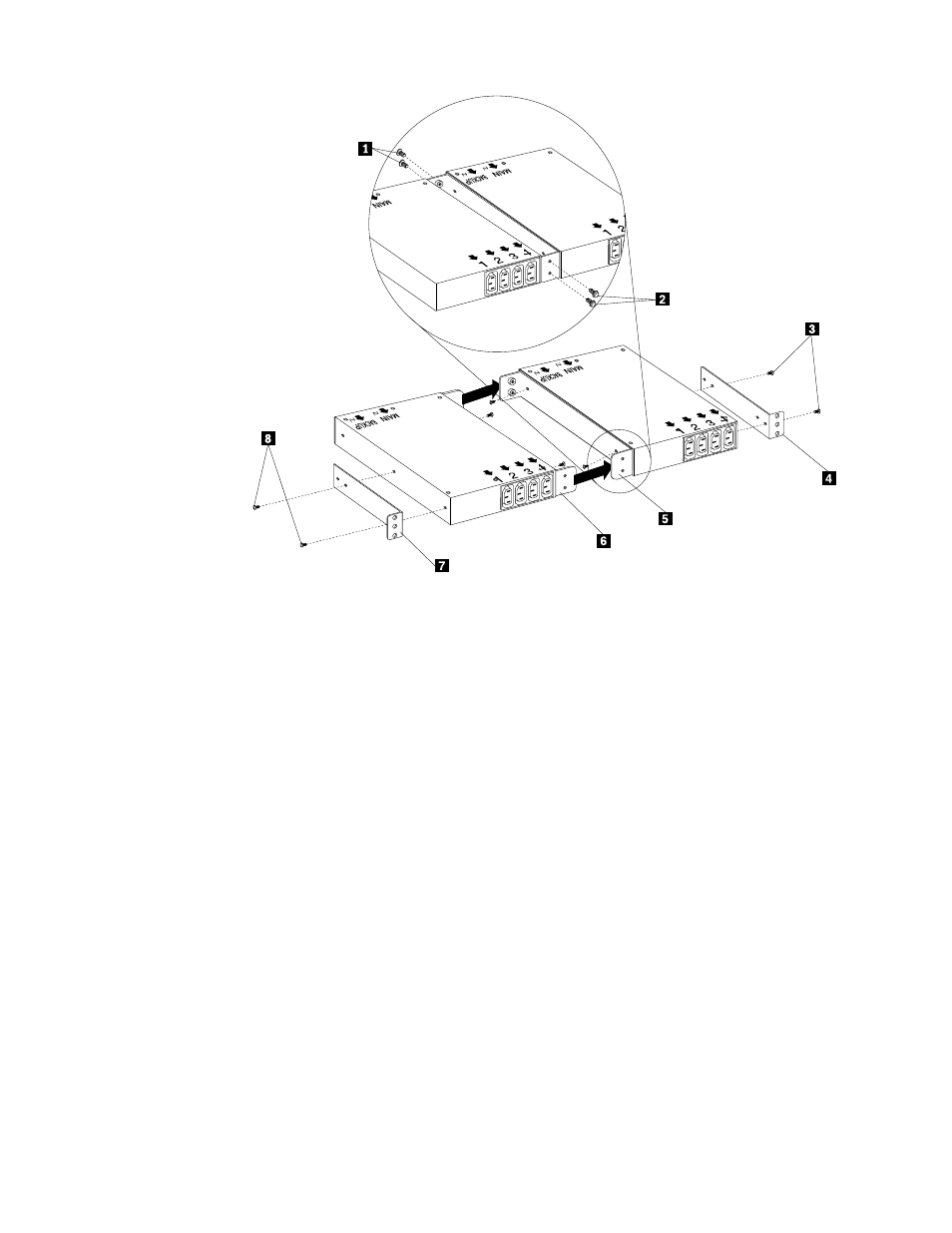

Figure 82. Installing the mounting brackets for two devices
3. Push the two Rack PDUs together, aligning the holes on the dual-device
attachment brackets; then, use four M6 screws to secure the front
c1d and rear c2d
of the brackets to each other.
4. Install a horizontal mounting bracket c4d on the Rack PDU on the right with two
M3x5 screws c3d; then, install the other horizontal mounting bracket c7d on the
Rack PDU on the left with two M3x5 screws c8d.
Note: There are two sets of mounting holes on the brackets. You can align the
Rack PDU to be even with the back of the rack cabinet or recessed inside,
depending on how you install the brackets.
5. Determine the U level within your rack cabinet where you are going to install the
Rack PDUs; then, install both Flat Panel Monitor Rack Mount Kits
c2d in the rear
of the rack cabinet with four M6 screws and clip nuts or cage nuts (two screws
and nuts per bracket).
