A300 Motherboard
the A300 keyboard/mouse connector. See Figure 5-14.
Step 3: Insert the cable connectors . Once the cable connector is properly aligned with
the keyboard/mouse connector on the A300, connect the cable connector to the
onboard connectors. See Figure 5-14.

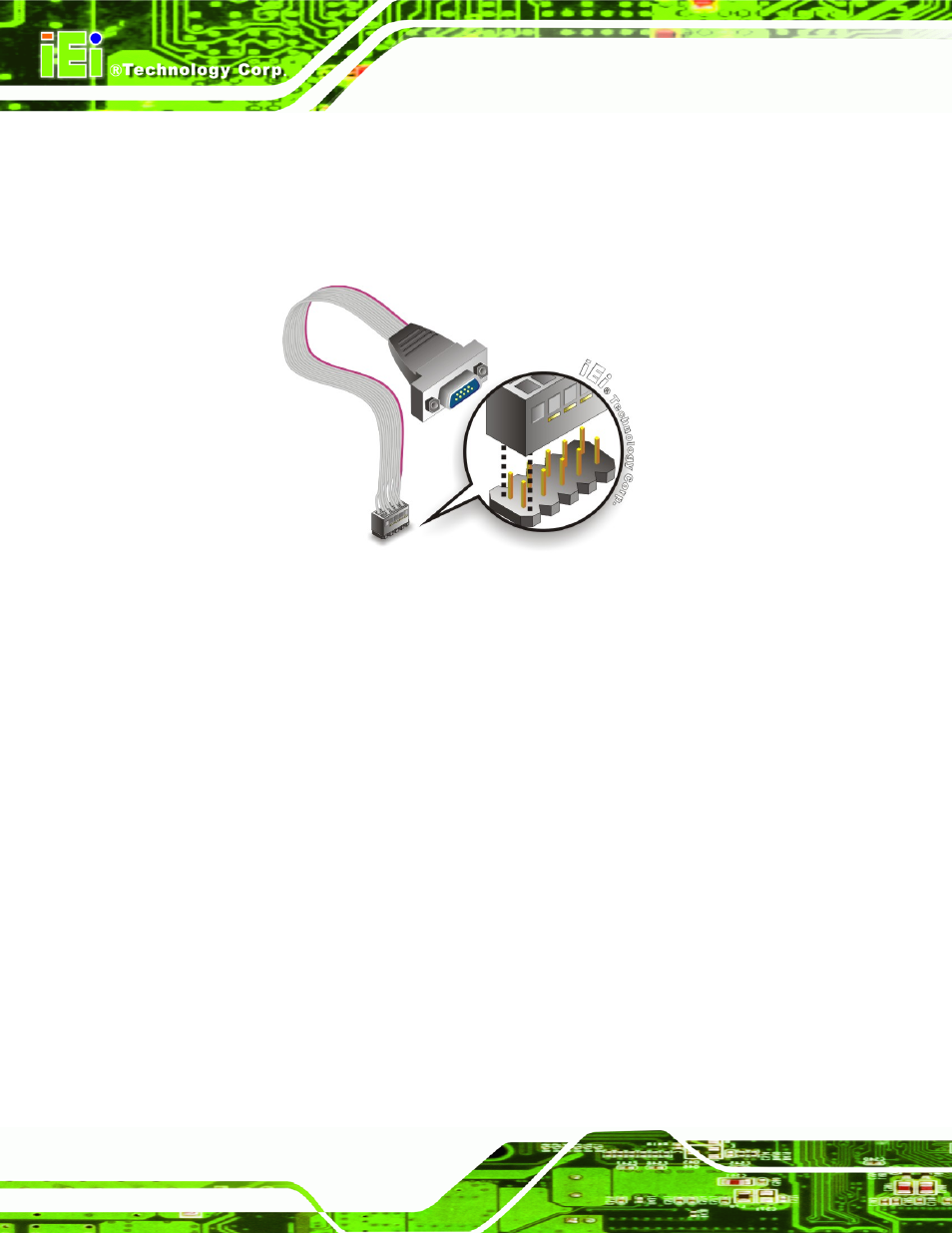

Figure 5-14: Single Port RS-232 Cable Connection
Step 4: Attach DB-9 serial port connectors to the chassis. The DB-9 single port
connector can be inserted into the preformed hole in the chassis. Once, inserted
the DB-9 connectors should be secured to the chassis with the retention
screws. Step 0:
5.8 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
Audio devices
DVI-I devices
Keyboard and mouse
RJ-45 Ethernet cable connectors
Serial port devices
USB devices
VGA monitors
Page 80
