After having done one of the above, save the changes and exit the CMOS Setup menu.
The clear CMOS jumper settings are shown in Table 5-3.
Clear CMOS Description
Short 1-2 Keep CMOS Setup Default
Open 2-3 Clear CMOS Setup
Table 5-3: JP2 Clear CMOS Jumper Settings

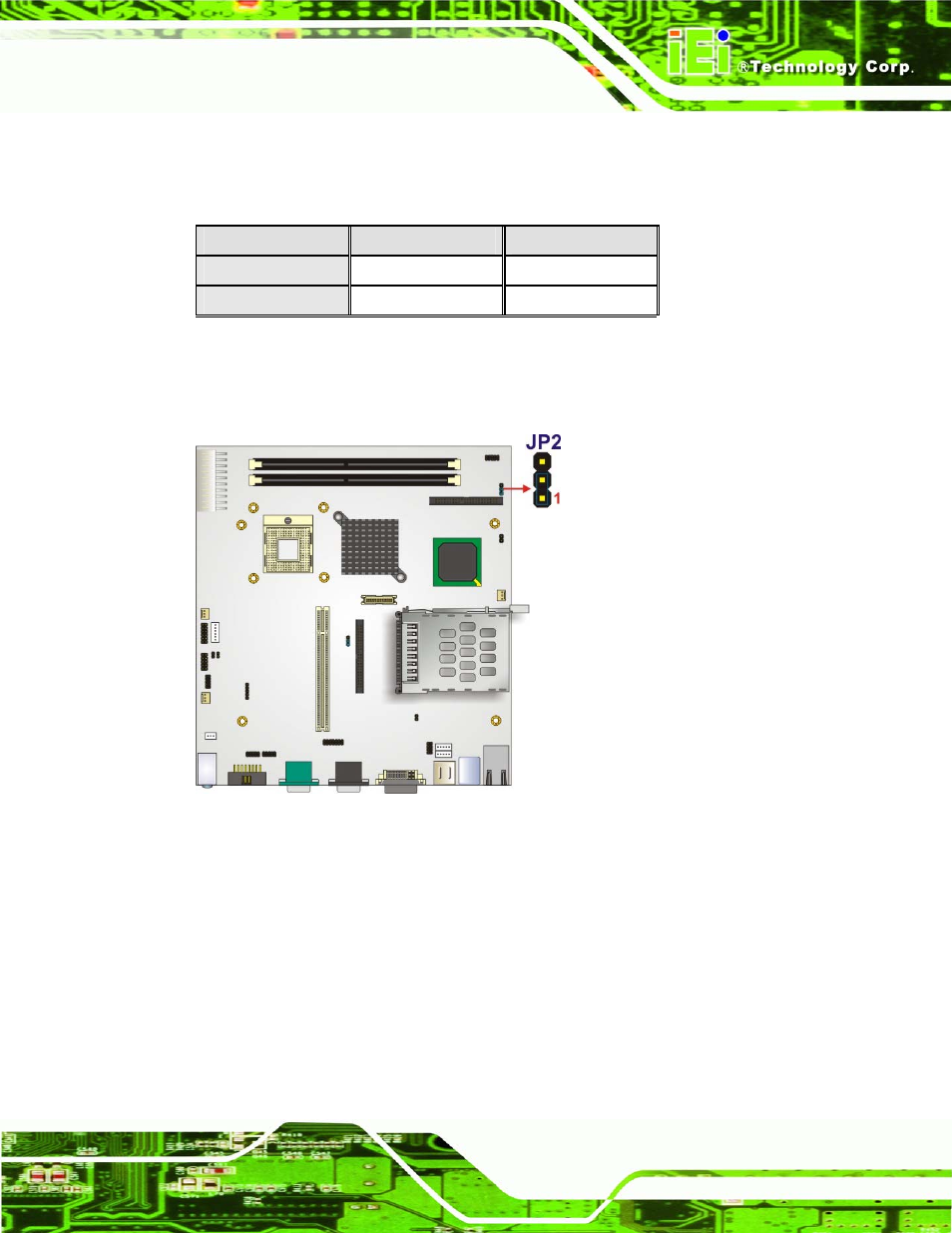

The location of the clear CMOS jumper is shown in Figure 5-9 below.
Figure 5-9: JP2 Clear CMOS Jumper
5.5.3 COM Port Setting Jumper
Jumper Label: CN13
Jumper Type: 12-pin header
Jumper Settings: See Table 5-4
Jumper Location: See Figure 5-10
