A300 Motherboard
2.2.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 2-2.

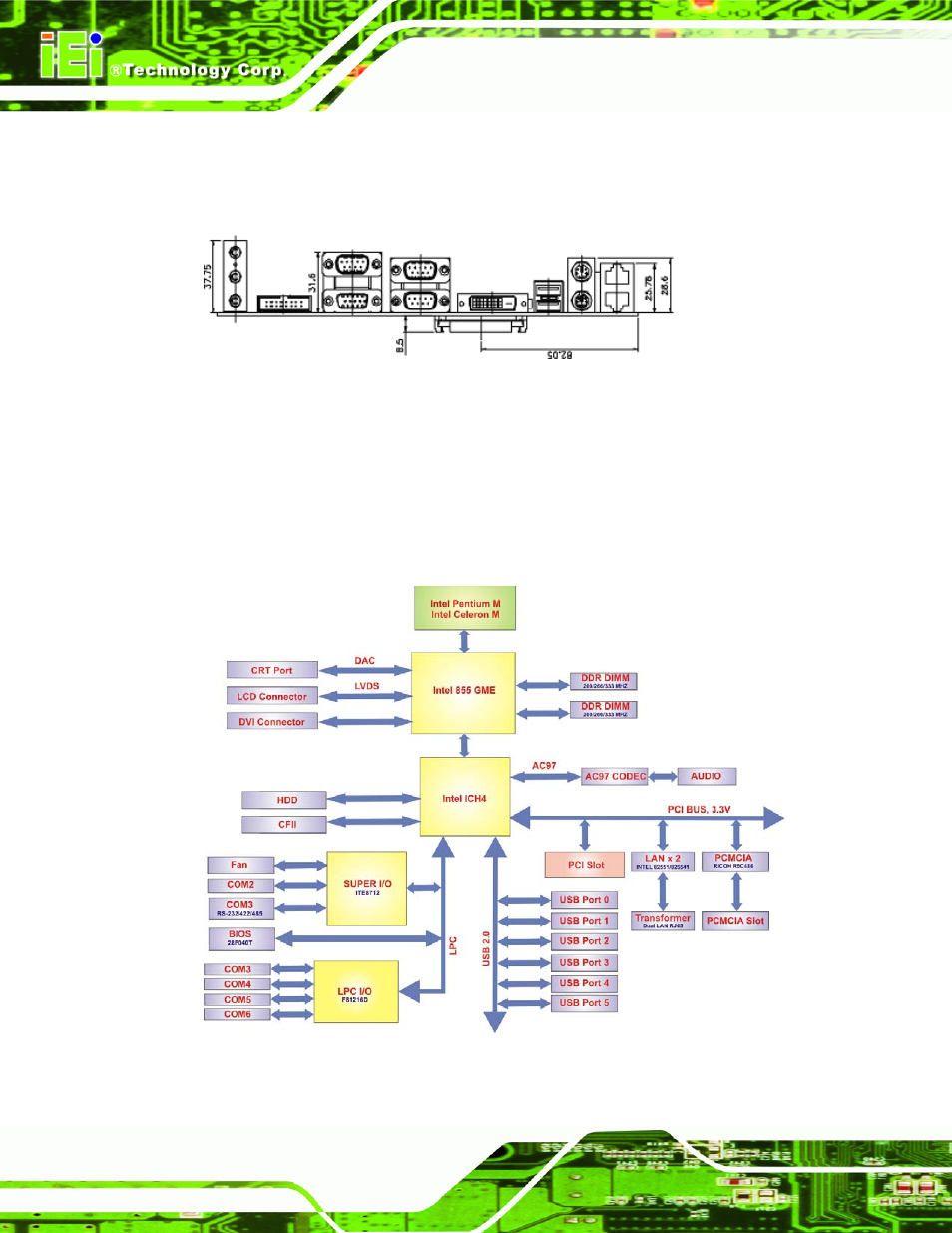

Figure 2-2: External Interface Panel Dimensions (mm)
2.3 Data Flow
The A300 motherboard comes with an Intel
®
Pentium M / Celeron M CPU. Figure 2-3
shows the data flow between the system chipset, the CPU and other components installed
on the motherboard.
Figure 2-3: Data Flow Block Diagram
