A300 Motherboard

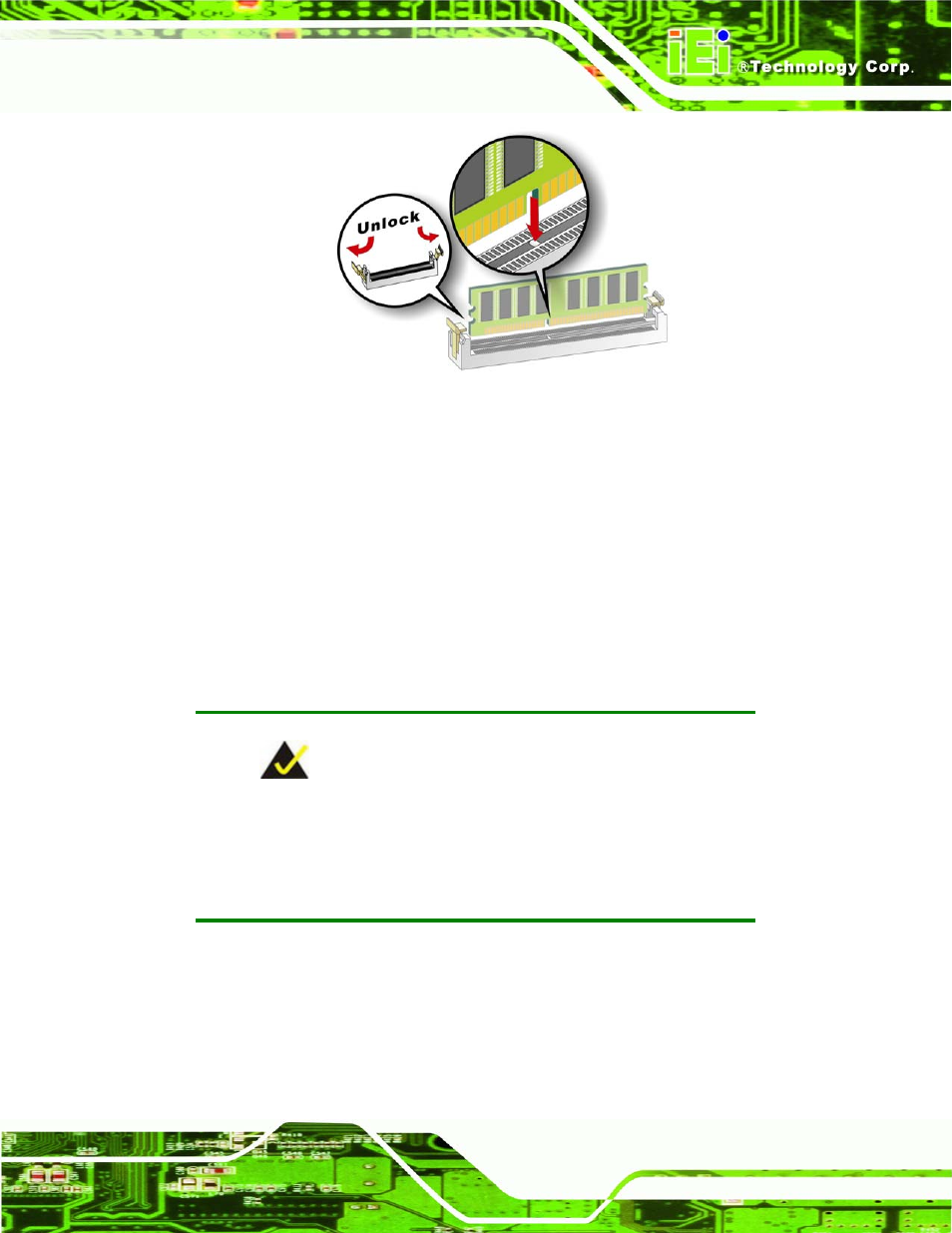

Figure 5-6: Installing the DIMM Module
Step 2: Slowly slide the DIMM module along the plastic guides on both ends of the
socket. Press the DIMM module down into the socket until it clicks into position
and the two handles have automatically locked the memory module into place
(Figure 5-6).
Step 3: To remove the memory module, push both handles outward, and the memory
module is ejected by the mechanism in the socket. Step 0:
5.4.2 CF Card Installation
Note:
The A300 can support both CF Type I cards and CF Type II cards. For
the complete specifications of the supported CF cards please refer to
Chapter 2.
To install the a CF card (Type 1 or Type 2) onto the A300, please follow the steps below:
Step 1: Locate the CF card socket. Place the A300 on an anti-static pad with the
solder side facing up. Locate the CF card.
Step 2: Align the CF card. Make sure the CF card is properly aligned with the CF
Page 69
