A300 Motherboard
The 20-pin ATX power connector is connected to an AT power supply.

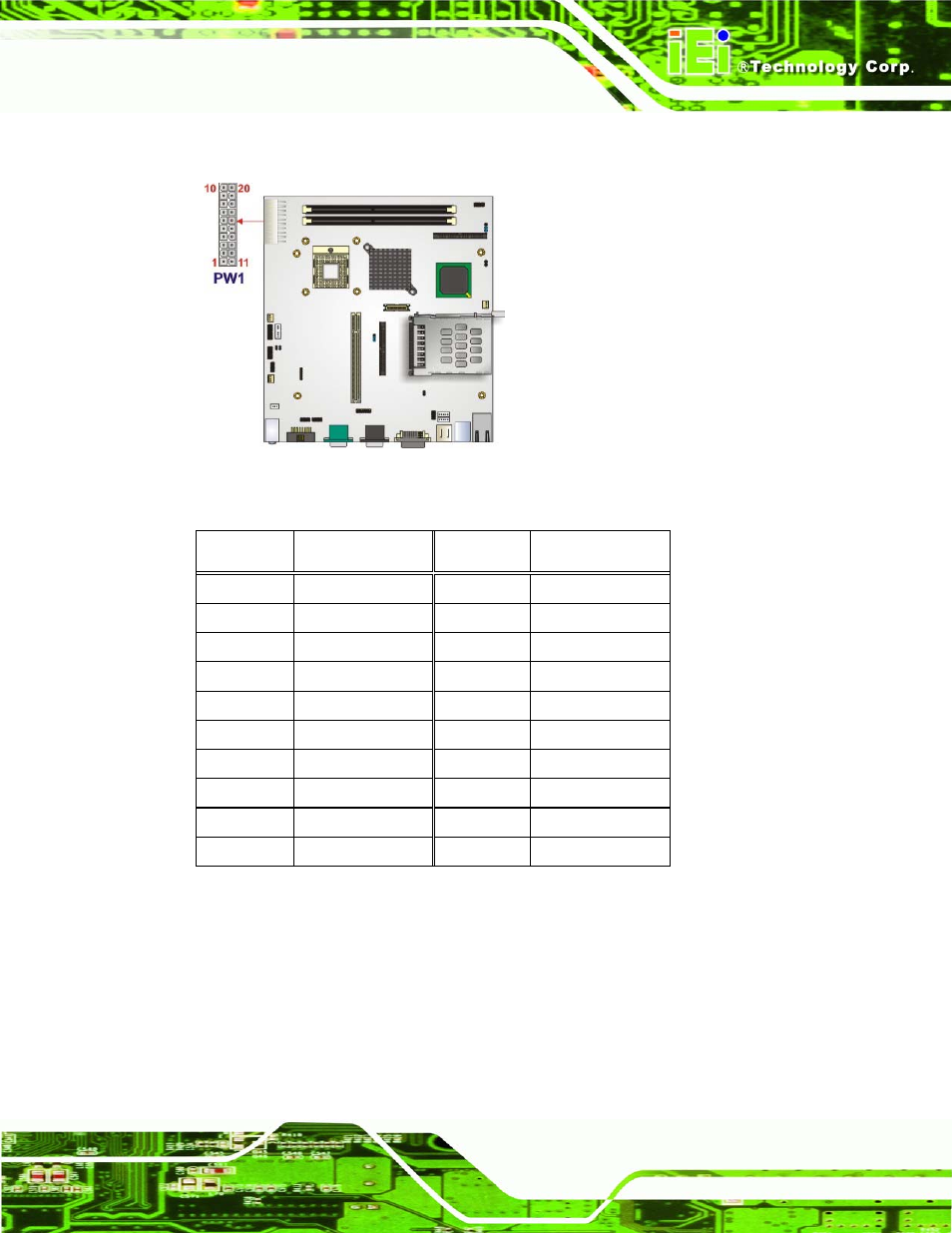

Figure 4-3: ATX Power Connector Location
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1 3.3V
11
3.3V
2 3.3V
12
-12V
3 GND
13
GND
4 5V
14
PSON
5 GND
15
GND
6 5V
16
GND
7 GND
17
GND
8 PWR
OK 18
-5V
9 5VSB 19
5V
10 12V
20 5V
Table 4-3: ATX Power Connector Pinouts
4.2.2 Audio Connector
CN Label:
AUDIO1
CN Type:
3-pin wafer connector
CN Location:
Page 33
