A300 Motherboard

4.1 Peripheral Interface Connectors

Section 4.1.2 shows peripheral interface connector locations. Section 4.1.2 lists all the

peripheral interface connectors seen in Section 4.1.2.

4.1.1 A300 Layout

Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

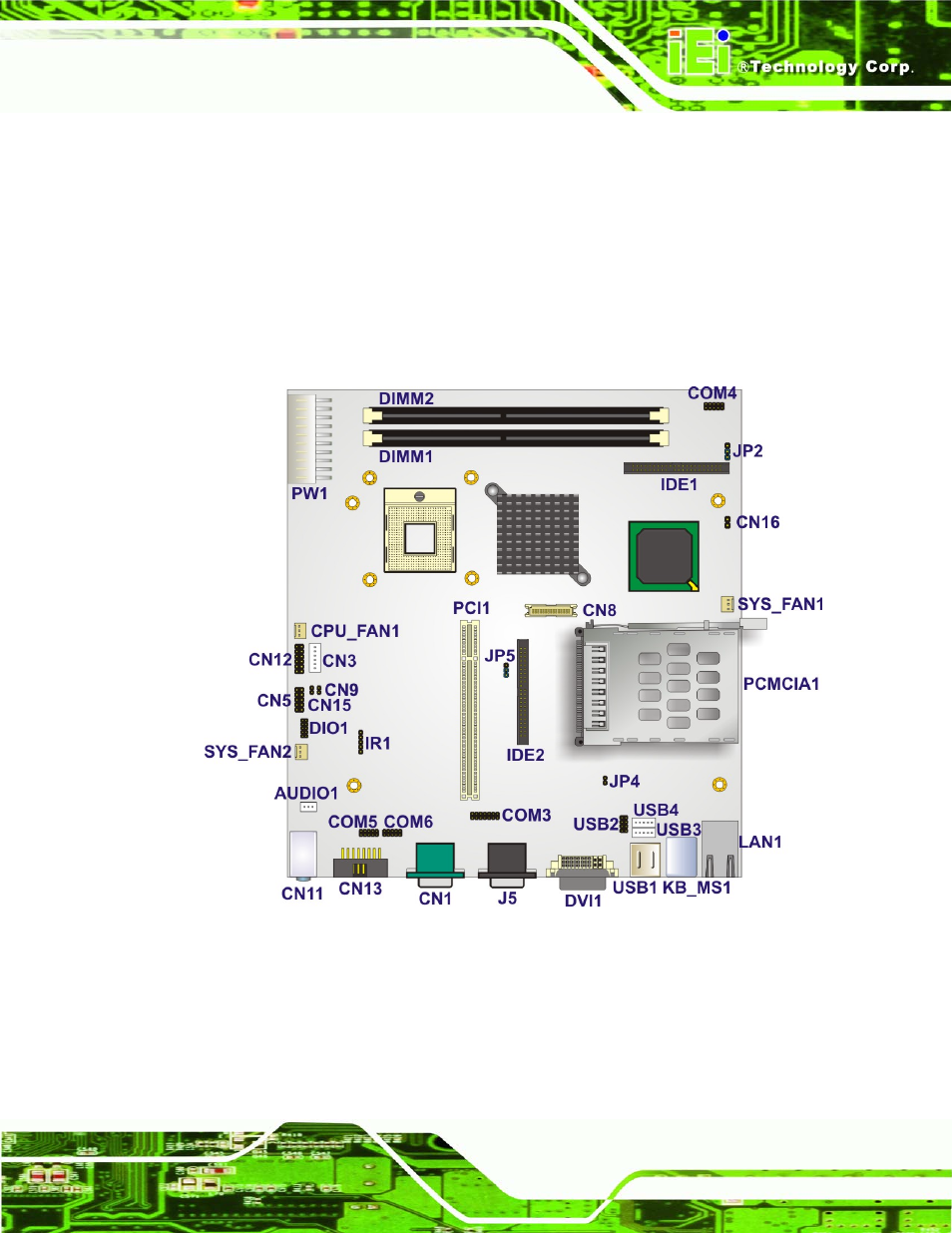

Figure 4-1: Connector and Jumper Locations

Page 29
