Page 106
A300 Motherboard
6.1.2 Super IO Configuration
The Super IO Configuration menu (BIOS Menu 3) sets or changes the configurations for
the serial ports.

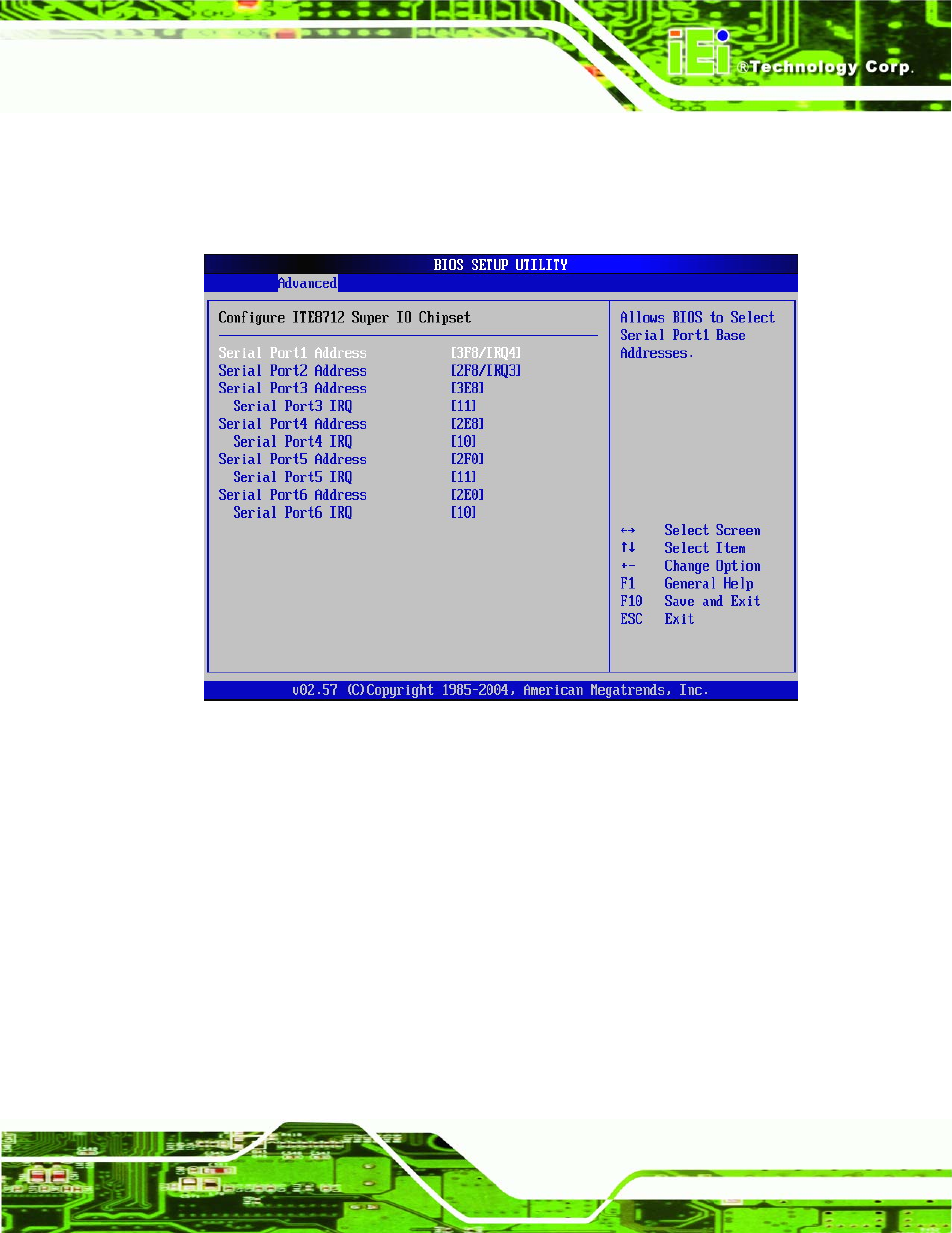

BIOS Menu 3: Super IO Configuration
Serial Port1 Address [3F8/IRQ4]
The Serial Port1 Address option allows BIOS to select the Serial Port 1 base address.
Disabled
No base address is assigned to Serial Port 1
3F8/IRQ4
(Default)
Serial Port 1 I/O port address is 3F8 and the interrupt
address is IRQ4
3E8/IRQ4
Serial Port 1 I/O port address is 3E8 and the interrupt
address is IRQ4
2E8/IRQ3
Serial Port 1 I/O port address is 2E8 and the interrupt
Page 91
