Page 94
A300 Motherboard

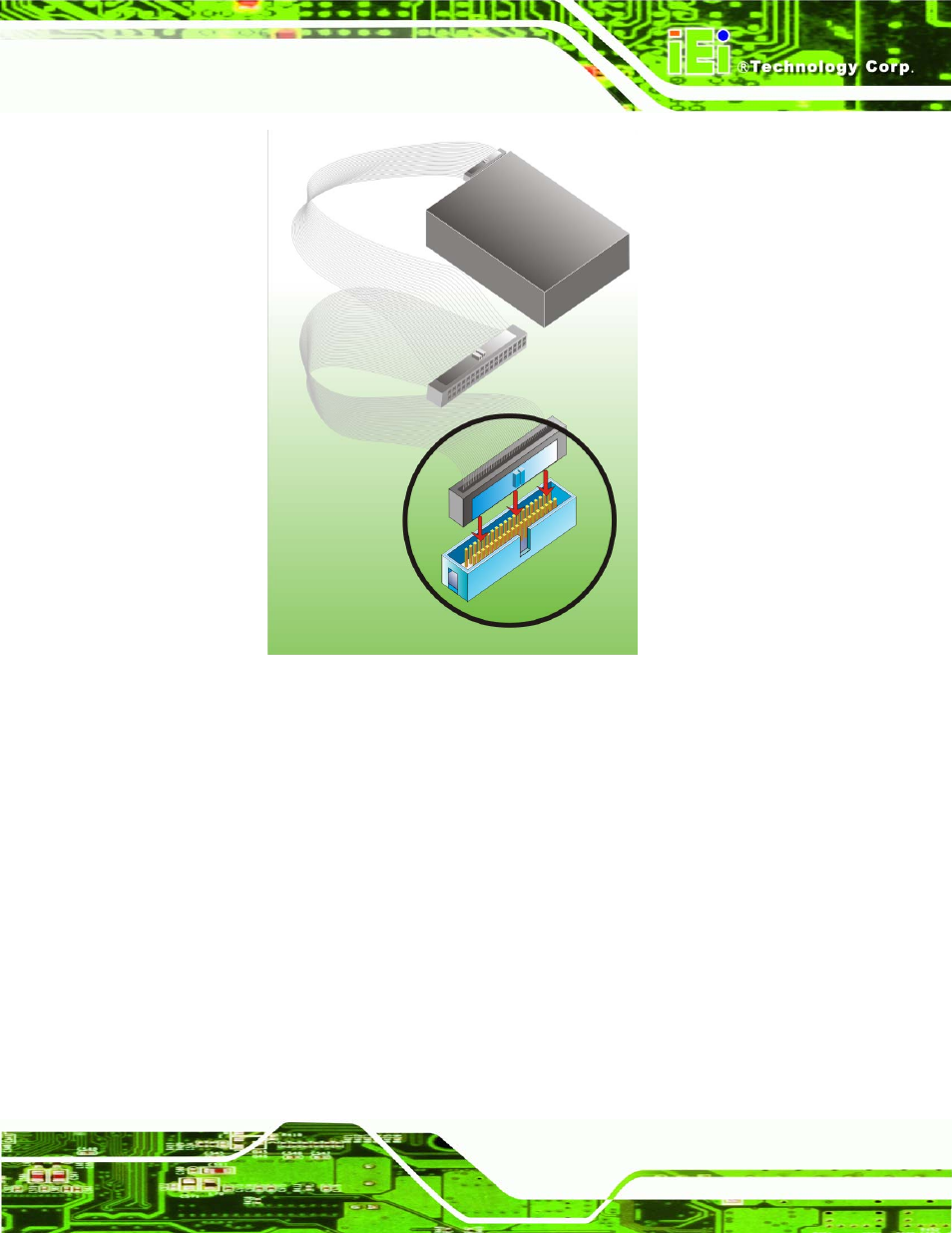

Figure 5-13: IDE Cable Connection
Step 3:
Connect the cable to an IDE device. Connect the two connectors on the other
side of the cable to one or two IDE devices. Make sure that pin 1 on the cable
corresponds to pin 1 on the connector
Step 0:
5.7.3 Single Port RS-232 Cable
The A300 is shipped with two single port RS-232 cables. The single port RS-232 cable
connects one serial port connector on the cable to the 10-pin serial port connector on the
A300. To connect the single port RS-232 cable, please follow the steps below.
Step 1:
Locate the serial port connector. The location of the 10-pin serial port
connector is shown in Chapter 3.
Step 2:
Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
