Page 64

A300 Motherboard

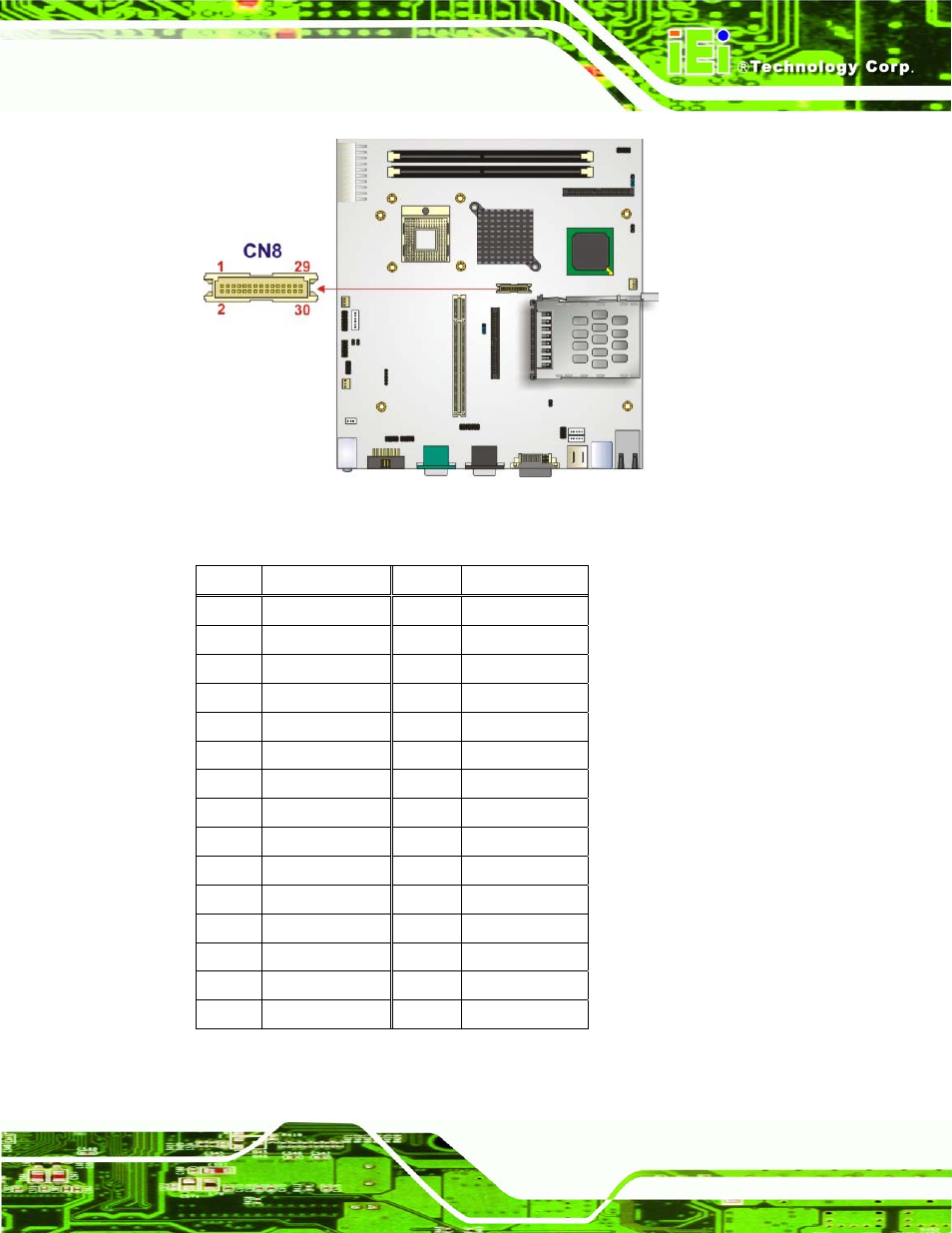

Figure 4-17: TFT LCD LVDS Connector Pinout Locations

PIN NO. DESCRIPTION

1 GND

2 GND

3 Rin0+

4 Rin0-

5 Rin1+

6 Rin1-

7 Rin2+

8 Rin2-

9 CLK1+

10 CLK1-

11 Rin3+

12 Rin3-

13 GND

14 GND

15 Rin4+

16 Rin4-

17 Rin5+

18 Rin5-

19 Rin6+

20 Rin6-

21 CLK2+

22 CLK2-

23 Rin7+

24 Rin7-

25 GND

26 GND

27 LCD_VDD 28 LCD_VDD

29 LCD_VDD 30 LCD_VDD

Table 4-19: TFT LCD LVDS Port Connector Pinouts

Page 49
