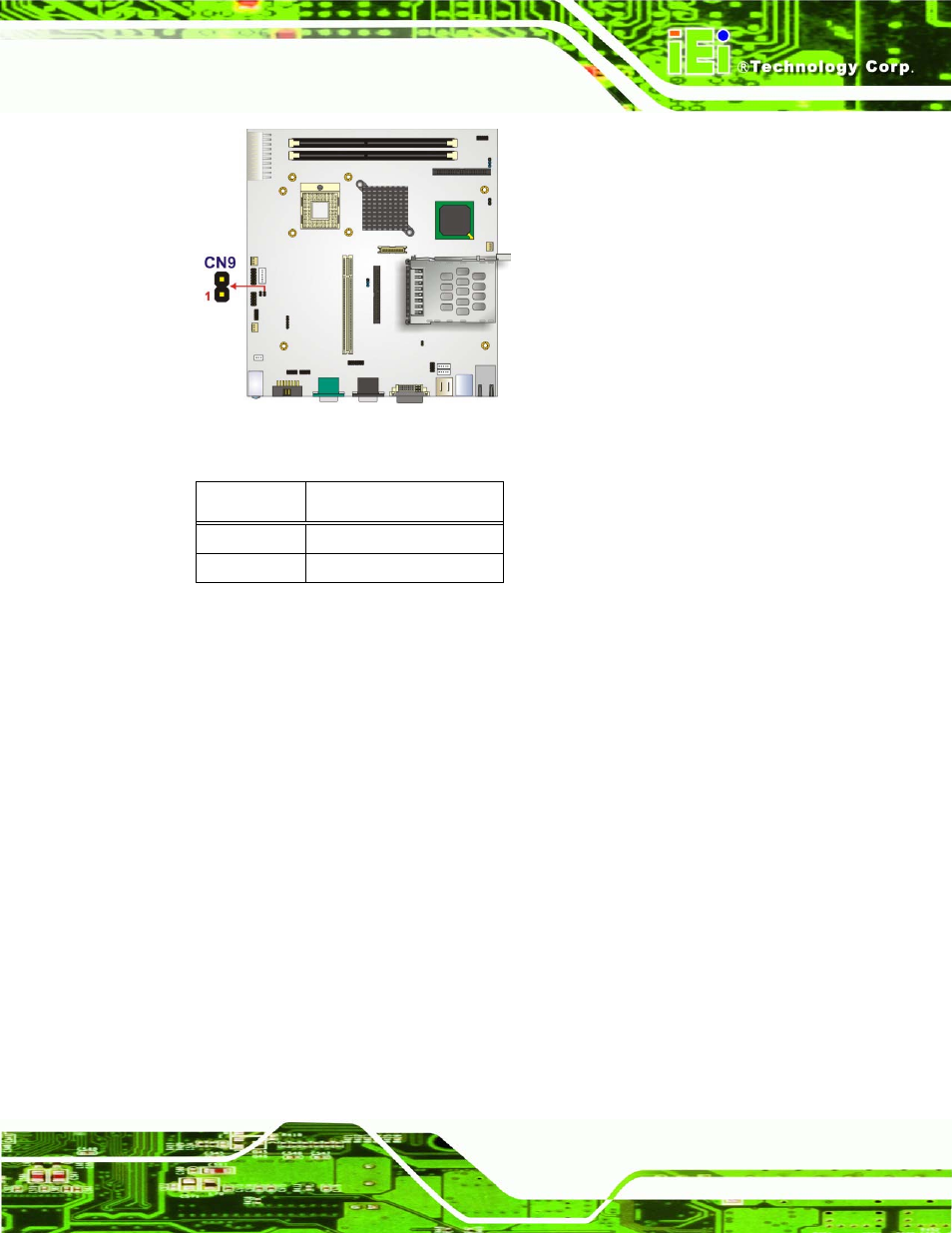

Figure 4-12: LED Connector Locations

PIN NO.

DESCRIPTION

1 +LED

2 -LED

Table 4-12: LED Connector Pinouts

4.2.11 Power Button Connector

CN Label:

CN15

CN Type:

2-pin header (1x2)

CN Location:

See Figure 4-13

CN Pinouts:

See Table 4-13

The power button connector is connected to a power switch on the system chassis to

enable users to turn the system on and off.
