A300 Motherboard
A13 ACT B13 ACT
A14 LINK B14 LINK
A15-17 GND B15-17 GND
Table 4-23: RJ-45 Ethernet Connector Pinouts

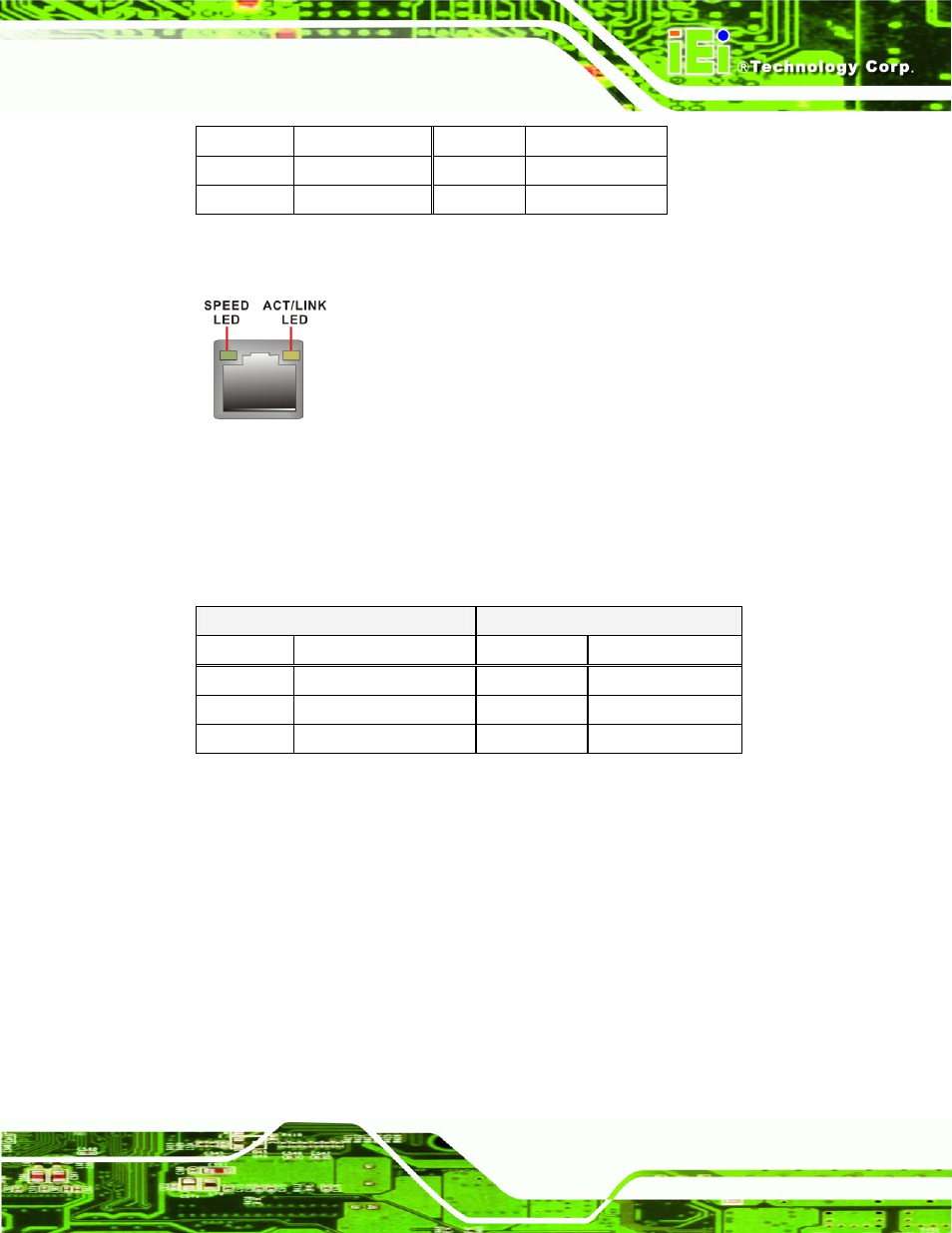

Figure 4-23: J7 Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
Table 4-24.
SPEED LED ACT/LINK LED
STATUS DESCRIPTION STATUS DESCRIPTION
OFF 10Mbps connection OFF No link
ORANGE 100Mbps connection YELLOW Linked
GREEN 1Gbps connection BLINKING Data Activity
Table 4-24: RJ-45 Ethernet Connector LEDs
4.3.5 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type: PS/2 connector
CN Location: See Figure 4-20 (labeled number 1)
CN Pinouts: See Table 4-25
The A300 keyboard and mouse connectors are standard PS/2 connectors.
Page 55
