HDR 24/96
term, is a system for keeping track of points within your recording and providing short-cut
mechanisms to return to those points quickly. The HDR front panel does not offer full locating
features, but does offer two Dedicated Locate points which are also used in conjunction with the
looping features (page 60). The Remote 24 adds two more Numbered Locates and the
corresponding Auto-punch features (page 82). The Remote 48 offers a fully featured Autolocator
(page 54) with dedicated buttons for many of its mostly industry-standard functions.

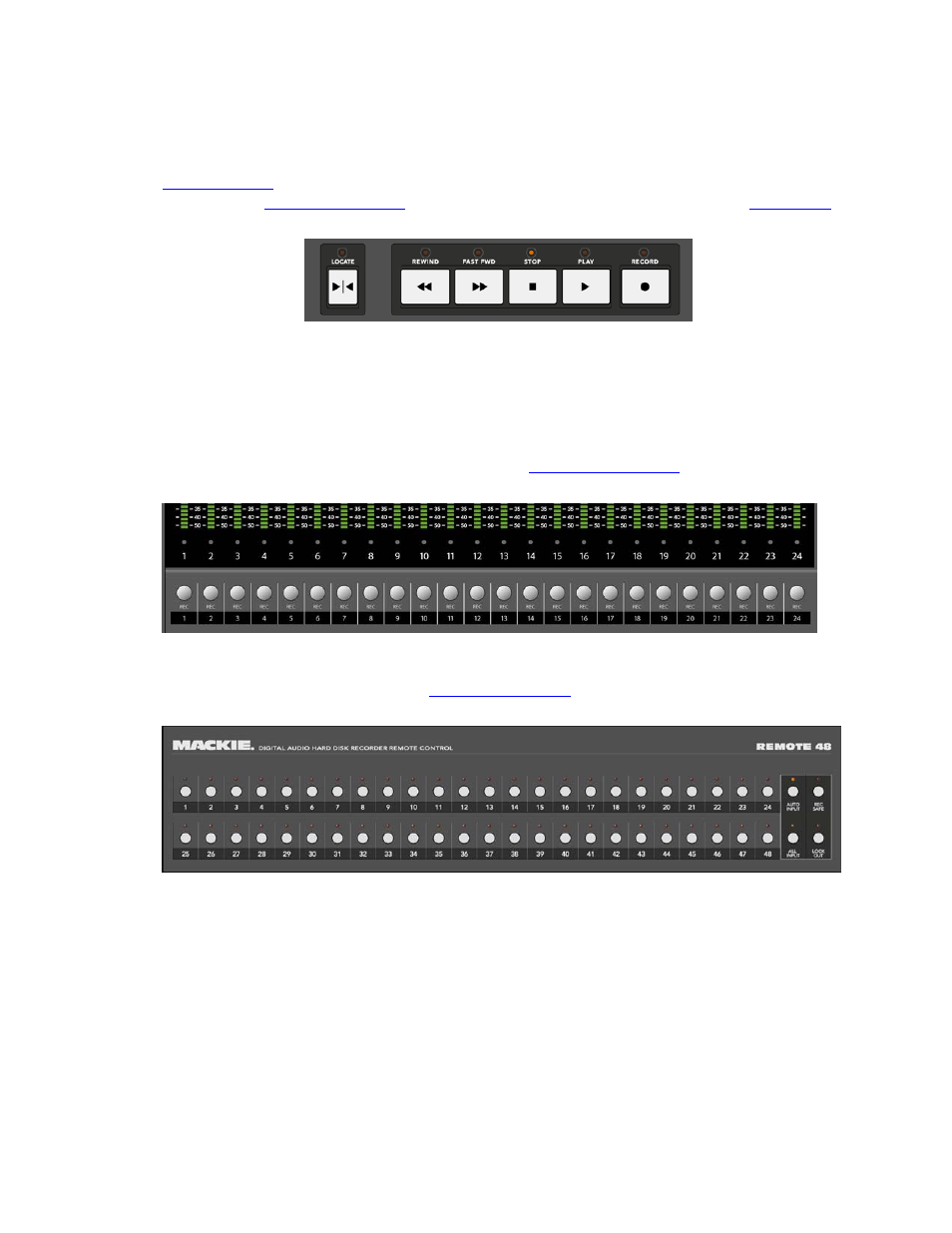

Remote 48 Transport – Same as Front Panel but adds LOCATE button
Track Controls
Track Controls are used to arm each track for recording (In the GUI there are also separate
monitoring controls for each track). The front panel buttons are labeled REC, while on the
Remote 24 and 48 the Record Ready buttons are simply labeled with their track number 1 through
24 and 1 through 48 respectively. See the section on
Recording Operations (page 77) for more
details.
Front Panel Track Controls
Track arming buttons interact with the Monitoring Controls , which are described in detail in other
sections of this manual (page 84).
Remote 48 Track Controls
Current Time Display
Current transport time is always displayed on the front panel and Remote 48. In these LED
displays the format will be either motion picture timecode or musical score position. If you want
the BBT display, it must be selected through the GUI or the Remote 48 where the TIME UNITS
button will toggle the formats.
• SMPTE time in hours:minutes:seconds:frames ................................... HH:MM:SS:FR
• Musical score (BBT) position in bars:beats:ticks ...................................BARS:BB:TT
HDR 24/96 12
