Grizzly G0623X3 - Manual (Page 87)

Model G0623X/G0623X3 (Mfg. Since 5/12)
-85-
721
722
701
720
719
703
716
717
718
715
711
710
709
714
713
712
707
705
708
706
704
702

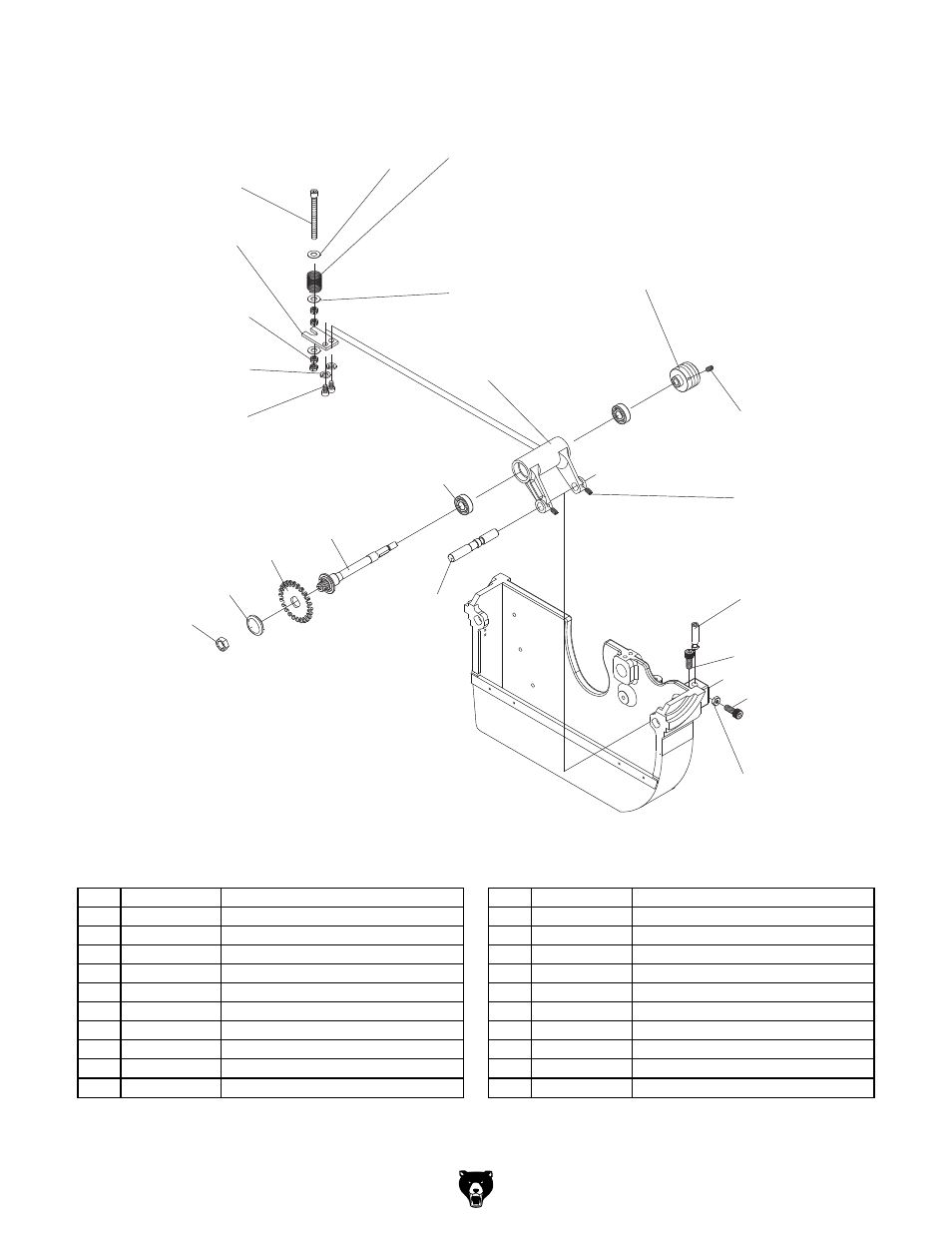

scoring trunnion
REF PART # DESCRIPTION REF PART # DESCRIPTION
701 P0623X0701 ARBOR FLANGE 712 P0623X0712 ADJUST SCREW M8-1.25 X 100
702 P0623X0702 SCORING SAW BLADE CSA 22MM 713 P0623X0713 PLATE
703 PCAP14M CAP SCREW M8-1.25 X 20 714 PLW04M LOCK WASHER 8MM
704 P0623X0704 SHAFT CSA 22MM 715 PCAP31M CAP SCREW M8-1.25 X 25
705 P0623X0705 SHAFT 716 P0623X0716 LOCK
706 P0623X0706 BEARING 717 PLN04M LOCK NUT M8-1.25
707 P0623X0707 REGULATOR 718 PW04M FLAT WASHER 10MM
708 P0623X0708 SCORING PULLEY 60HZ 719 P0623X0719 HEX NUT M12-1.75 - 6H
709 PSS02M SET SCREW M6-1 X 6 720 PW04M FLAT WASHER 10MM
710 PSS02M SET SCREW M6-1 X 6 721 PCAP02M CAP SCREW M6-1 X 20
711 P0623X0711 ADJUST SHAFT 722 PN01M HEX NUT M6-1
