-42-
Model G0623X/G0623X3 (Mfg. Since 5/12)
the scoring blade included with the model
g0623X/g0623X3 has wedge shaped teeth. With
this style of scoring blade, the kerf thickness is
adjusted by changing the height of the scoring
blade. raising the scoring blade higher increases
the kerf thickness.
changing/adjusting
scoring blade
3. place a straightedge across the body of the
main blade (not the teeth) and align the body
of the scoring blade to the main blade, by
turning the alignment control (
figure 71) with
a 6mm hex wrench.
4. adjust the height of the scoring blade, by
turning the height control ( figure 71) with a
6mm hex wrench, until the exposed portion
equals the kerf thickness of the main blade.
note: The easiest way to match the scor-
ing blade kerf is by laying a straightedge on
the table, and placing it up against the main
blade teeth and beyond the scoring blade,
then adjusting the scoring blade height until
its teeth align with the main blade teeth. Also
check on the other side of the blades to verify
that the kerf thickness matches and the scor-
ing blade is aligned with the main blade.
5. tighten the controls lock.
6. move the blade cover back into its original
position next to the blades, then center the
sliding table.
7. perform a test cut and check for chip out on
the underside of the test piece. if there is
chip out, make the adjustments necessary to
match the kerfs.
5. install the new scoring blade as shown in
figure 70, tighten the arbor nut, and adjust
the scoring blade alignment and height as
necessary.

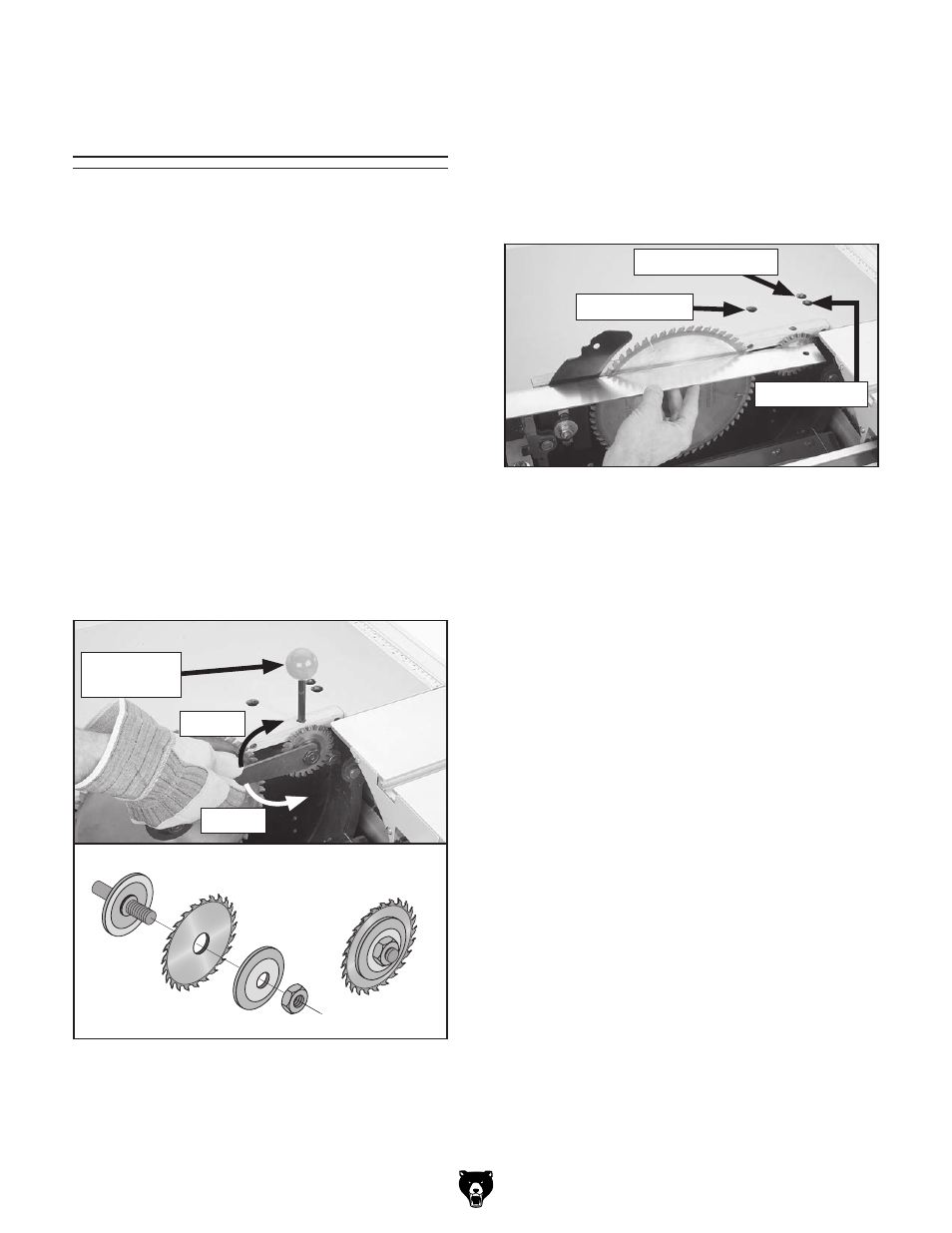

figure 70. removing/installing scoring blade.
arbor lock
tool
loosen
tighten
changing scoring blade
1. disCoNNeCt saW from poWer!
2. remove the blade guard and move the blade
tilt to 0˚ (blade 90˚ to table).
3. move the sliding table to the side and pull the
blade cover open.
4. insert the arbor lock tool in the table, rotate
the scoring blade to seat the arbor lock tool,
and use the arbor wrenches to remove the
arbor nut and scoring blade (see
figure 70).
1. disCoNNeCt saW from poWer!
2. unlock the scoring blade controls by inserting
a 6mm hex wrench into the controls lock hole
shown in
figure 71 and turning the mecha-
nism inside counterclockwise until loose.
adjusting scoring blade
figure 71. Checking and adjusting scoring blade
positioning.
height Control
alignment Control
Controls lock
