power connection
before the machine can be connected to the
power source, an electrical circuit must be made
available that meets the minimum specifications
given in Circuit requirements on
page 14. if
a power circuit has not been prepared for the
machine, do that now. to ensure a safe and code-
compliant setup, we strongly recommend that all
electrical work be done by an electrician or quali-
fied service personnel.
g0623X3 440v power connection
hardwire setups require power supply lines to be
enclosed inside conduit, which is securely mount-
ed and constructed in adherence to applicable
electrical codes.
a hardwire setup for this machine must be
equipped with a locking disconnect switch as a
means to disconnect the power during adjust-
ments or maintenance, which is a typical require-
ment for lock-out/tag-out safety programs (com-
monly required by osha).
figure 4 on page 15 shows a simple diagram of
a hardwire setup with a locking disconnect switch
between the power source and the machine. due
to the complexity required for planning, bending,
and installing the conduit necessary for a hardwire
setup, this type of setup should only be performed
by an experienced electrician.
g0623X/g0623X3 230v/220v power
connection
insert the plug into a matching Nema recep-
tacle, (see
figure 2 for g0623X and figure 3 for
g0623X3 on page 14).
to connect the model g0623X/g0623X3 to
power:

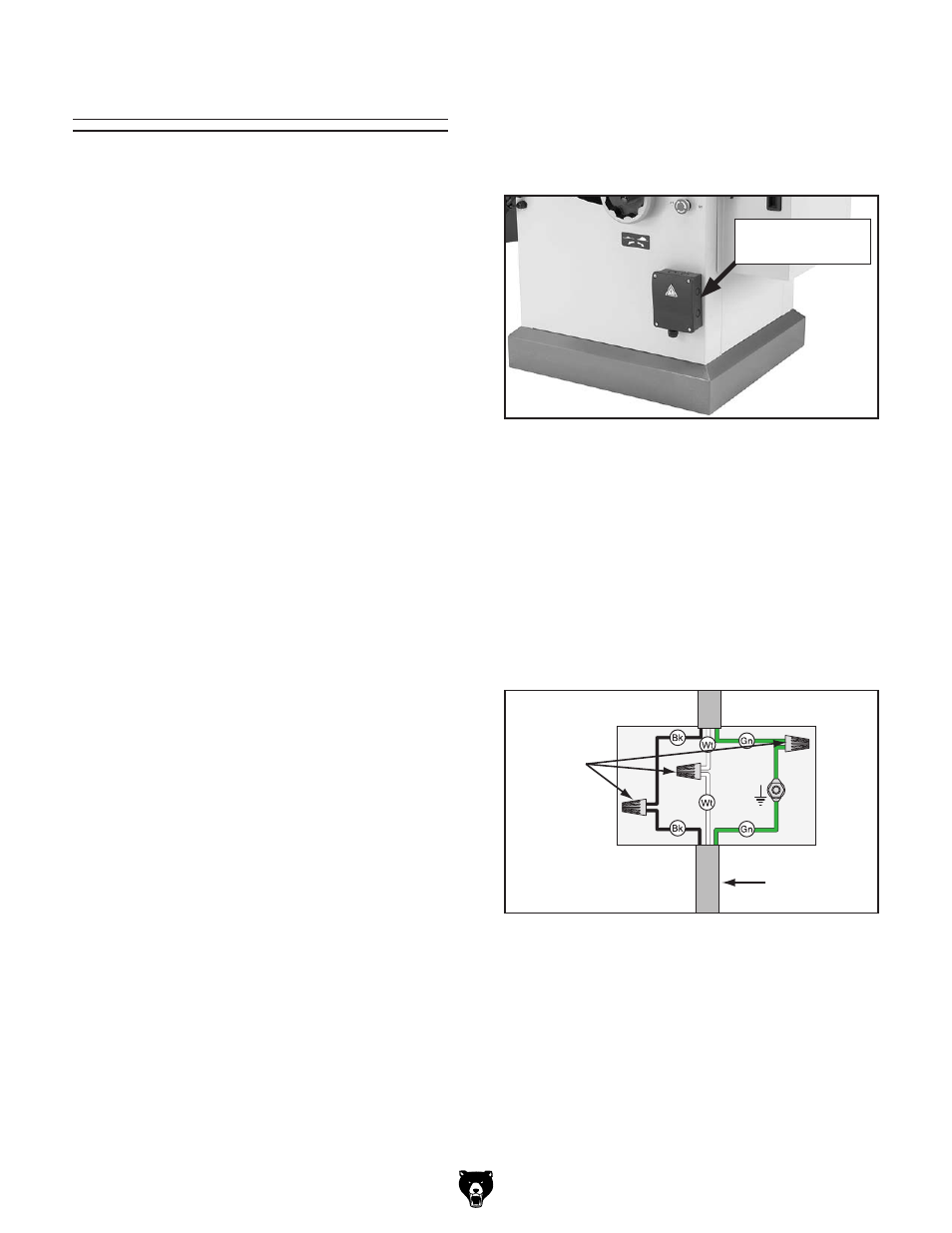

1. open the power connection box shown in
figure 49.
figure 49. power connection box.
power
Connection box
2. loosen the strain relief on the bottom of the
connection box, then insert the incoming
power wires into the connection box.
3. g0623X: Connect the incoming power wires
and ground wire to the wires in the connec-
tion box using wire nuts, (see
figure 50),
then wrap each of the wire nuts and their
respective wires with electrical tape to secure
them together.
figure 50. model g0623X incoming power wires
connected.
Ground
Incoming
Power Line
Connect
Wires
with
Wire
Nuts
