-18-
Model G0623X/G0623X3 (Mfg. Since 5/12)

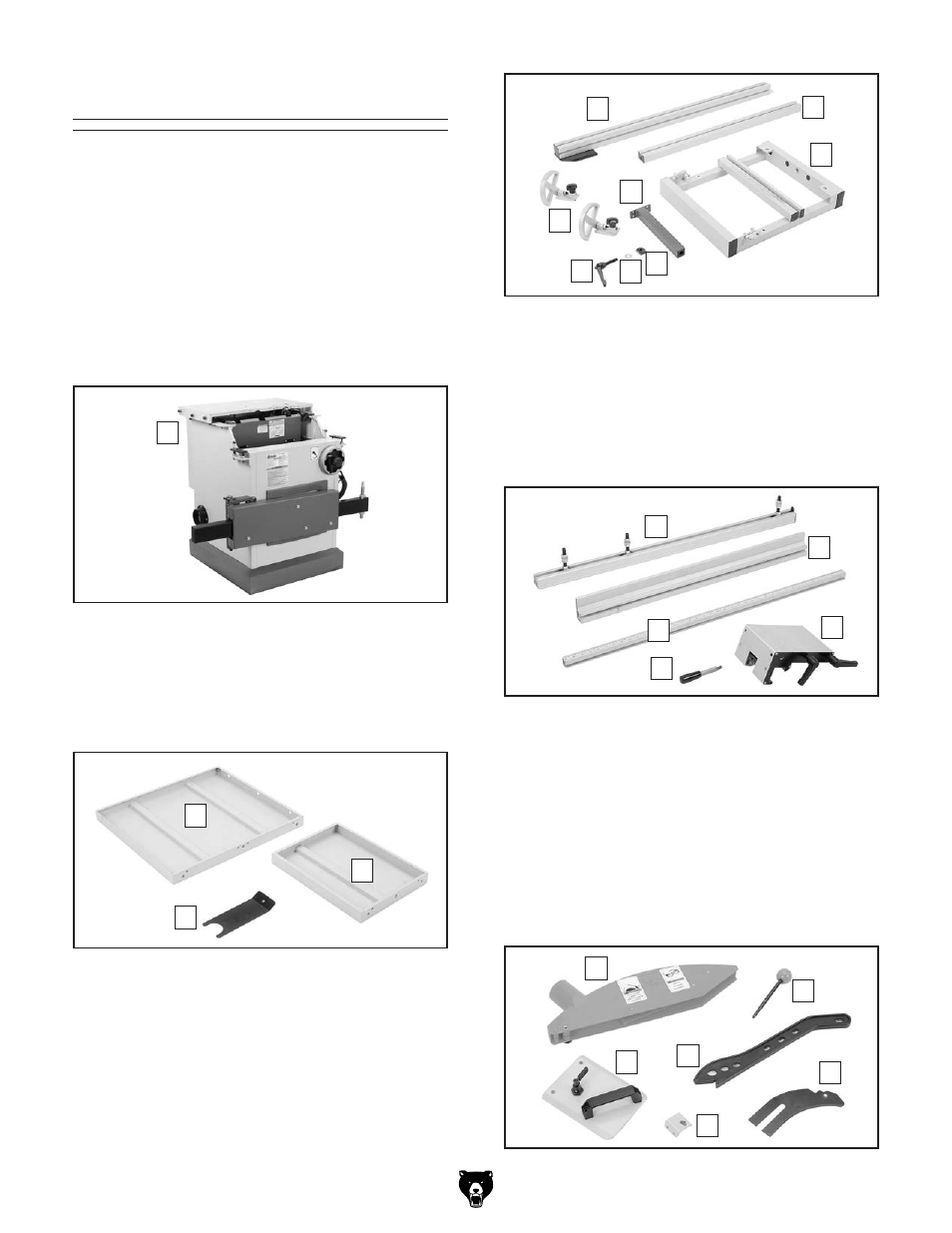

inventory
after all the parts have been removed from the
boxes in the crate, you should have the items
listed below.
if any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
inventory item: (figure 5) Qty
a. table saw ................................................... 1
a
figure 5. table saw.
inventory item: (figure 6) Qty
b. large extension table ............................... 1
c. small extension table ................................ 1
d. hose support ............................................. 1
inventory item: (figure 7) Qty
e. Crosscut fence .......................................... 1
f. support bar ................................................ 1
g. Crosscut table ........................................... 1
h. Crosscut table support leg ....................... 1
i. flip stops ................................................... 2
J. lock lever m12-1.75 x 55 ........................... 1
K. flat Washer 12mm ..................................... 1
l. t-Nut m12-1.75 ............................................ 1
inventory item: (figure 8) Qty
m. rip fence rail ............................................ 1
n. rip fence ................................................... 1
o. rip fence scale ......................................... 1
p. rip fence lever w/hex Nut m8-1.25 ......... 1
Q. rip fence base .......................................... 1
figure 8. rip fence items.
N
o
m
p
Q
inventory item: (figure 9) Qty
r. blade guard w/Cap screw & lock Nut ...... 1
s. arbor lock tool .......................................... 1
t. sliding table handle w/lock ...................... 1
u. push stick .................................................. 1
v. riving Knife ................................................ 1
W. end Cover ................................................... 1
X. Wrench 17mm (not shown) ......................... 1
y. Wrench 19/22mm (not shown) .................... 1
figure 7. Crosscut table items.
e f
i
g
l
K J
h
figure 6. extension table items.
b
C
d
figure 9. miscellaneous components.
r
s
v
t
W
u
