sliding table
adjustment
the sliding table features an adjustment bar with
bolts that control how easily the sliding table
moves across the base (see
figure 131). these
adjustment bolts are factory set. they can only
be accessed by removing the end covers from
both ends of the sliding table base and sliding the
plastic plate out of the way.

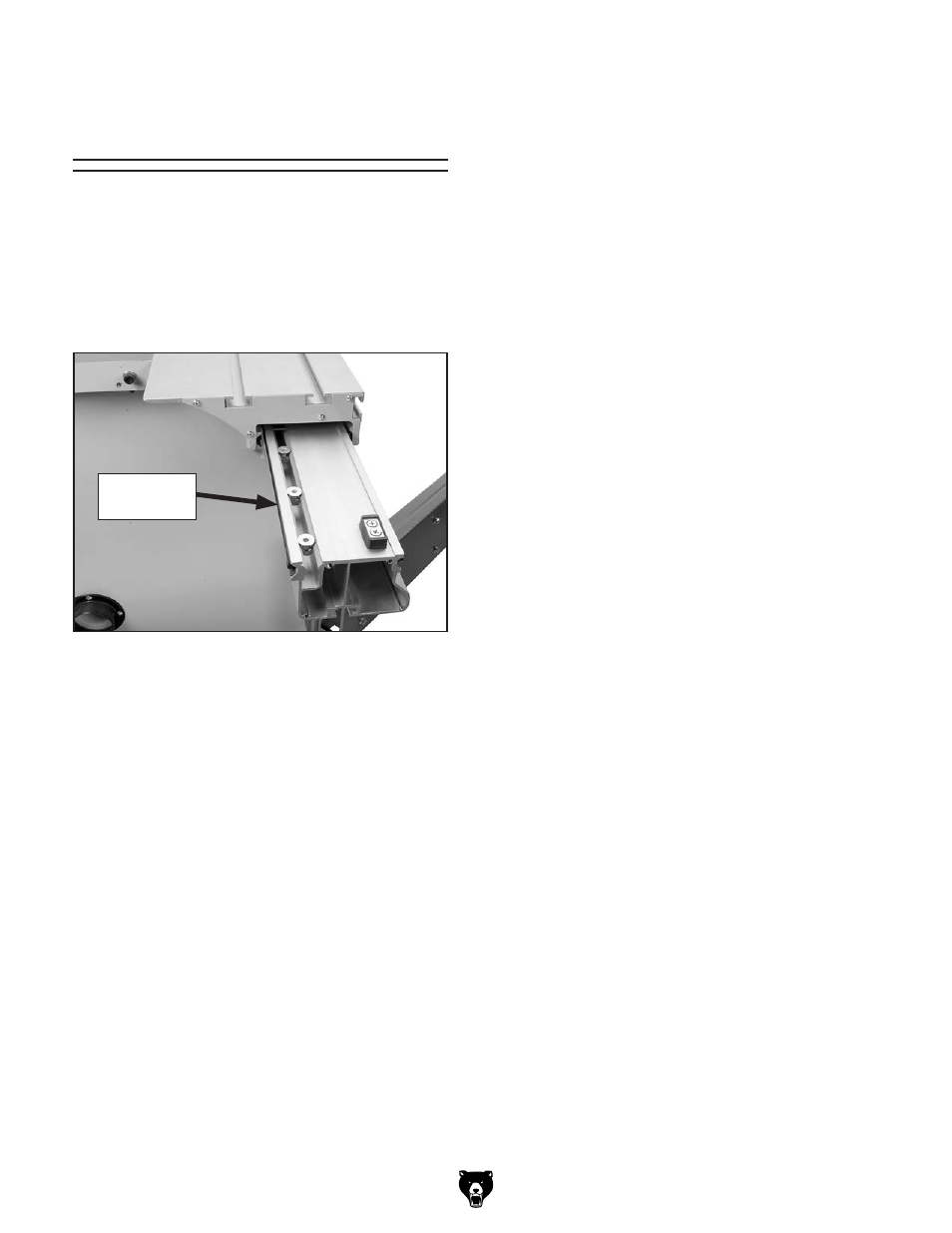

figure 131. adjustment bolt access location.
adjustment
bolt
if the adjustment bolts do require adjustments,
turning them counterclockwise increases pres-
sure against the steel rails. this reduces table
movement slop, which increases accuracy, but
makes it harder to slide the table.
turning the adjustment bolts clockwise decreases
the pressure against the steel rails. this increas-
es table movement slop, which reduces accuracy,
but makes it easier to slide the table.
adjusting this part of the sliding table correctly is
a matter of trial-and-error by making adjustments,
moving the sliding table, then making additional
adjustments. ultimately, the table must move eas-
ily without any slop.
