Grizzly G0623X3 - Manual (Page 84)

-82-

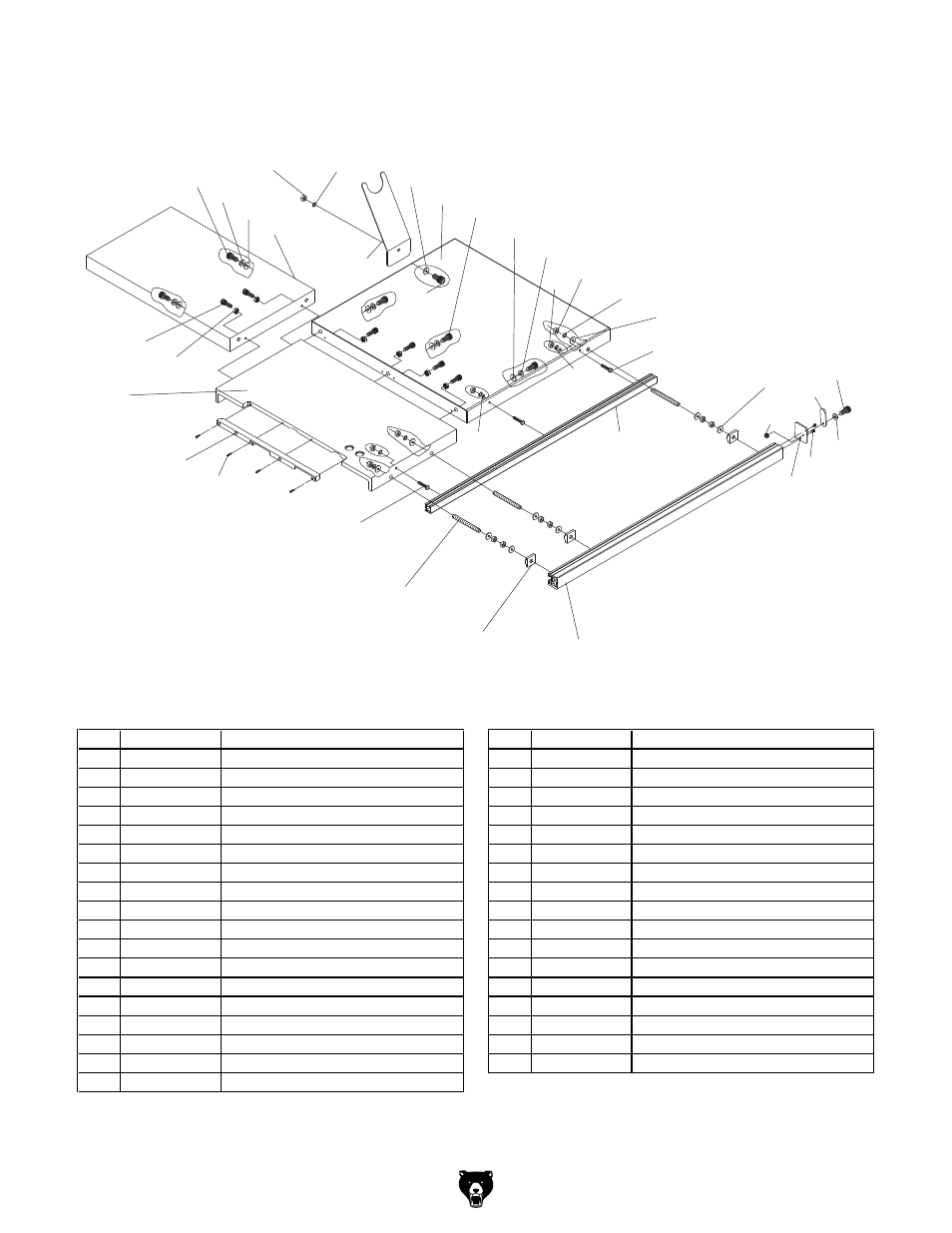

Model G0623X/G0623X3 (Mfg. Since 5/12)
437
409
435
434
411
436
433
430
429
431
405
410
432
428
427
426
419
425
424
423
420
421
422 417
418
416
415
414
413
408
407
406
404
402
403
412
401
tables
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0623X0401 LARGE EXTENSION TABLE 420 PHTEK15M TAP SCREW M4 X 10
402 P0623X0402 CAST IRON TABLE 421 P0623X0421 RAIL END PLATE
403 P0623X0403 TABLE INSERT 422 P0623X0422 SMALL EXTENSION TABLE
404 PCAP15M CAP SCREW M5-.8 X 20 423 PW04M FLAT WASHER 10MM
405 P0623X0405 RIP FENCE SCALE 424 PLW06M LOCK WASHER 10MM
406 P0623X0406 STUD-FT M12-1.75 X 90 425 PCAP64M CAP SCREW M10-1.5 X 25
407 P0623X0407 T-NUT M12-1.75 426 PLW01M LOCK WASHER 5MM
408 P0623X0408 RIP FENCE RAIL 427 PBHS06M BUTTON HD CAP SCR M5-.8 X 12
409 PB10M HEX BOLT M6-1 X 25 428 P0623X0428 STOP TAB
410 PLW03M LOCK WASHER 6MM 429 PCAP64M CAP SCREW M10-1.5 X 25
411 PN01M HEX NUT M6-1 430 P0623X0430 DUST HOSE SUPPORT
412 PW06M FLAT WASHER 12MM 431 PLW06M LOCK WASHER 10MM
413 PW06M FLAT WASHER 12MM 432 PLN05M LOCK NUT M10-1.5
414 PLW05M LOCK WASHER 12MM 433 PW04M FLAT WASHER 10MM
415 PN09M HEX NUT M12-1.75 434 PN03M HEX NUT M8-1.25
416 PLW06M LOCK WASHER 10MM 435 PCAP31M CAP SCREW M8-1.25 X 25
417 PW04M FLAT WASHER 10MM 436 PB83M HEX BOLT M6-1 X 16
418 PCAP64M CAP SCREW M10-1.5 X 25 437 PW03M FLAT WASHER 6MM
419 PLN02M LOCK NUT M5-.8
