Grizzly G0623X3 - Manual (Page 85)

Model G0623X/G0623X3 (Mfg. Since 5/12)
-83-
522
517
511
521
520
519
518
515
516
513
512
507
506
505
501
514
503
510
509
508
504
502

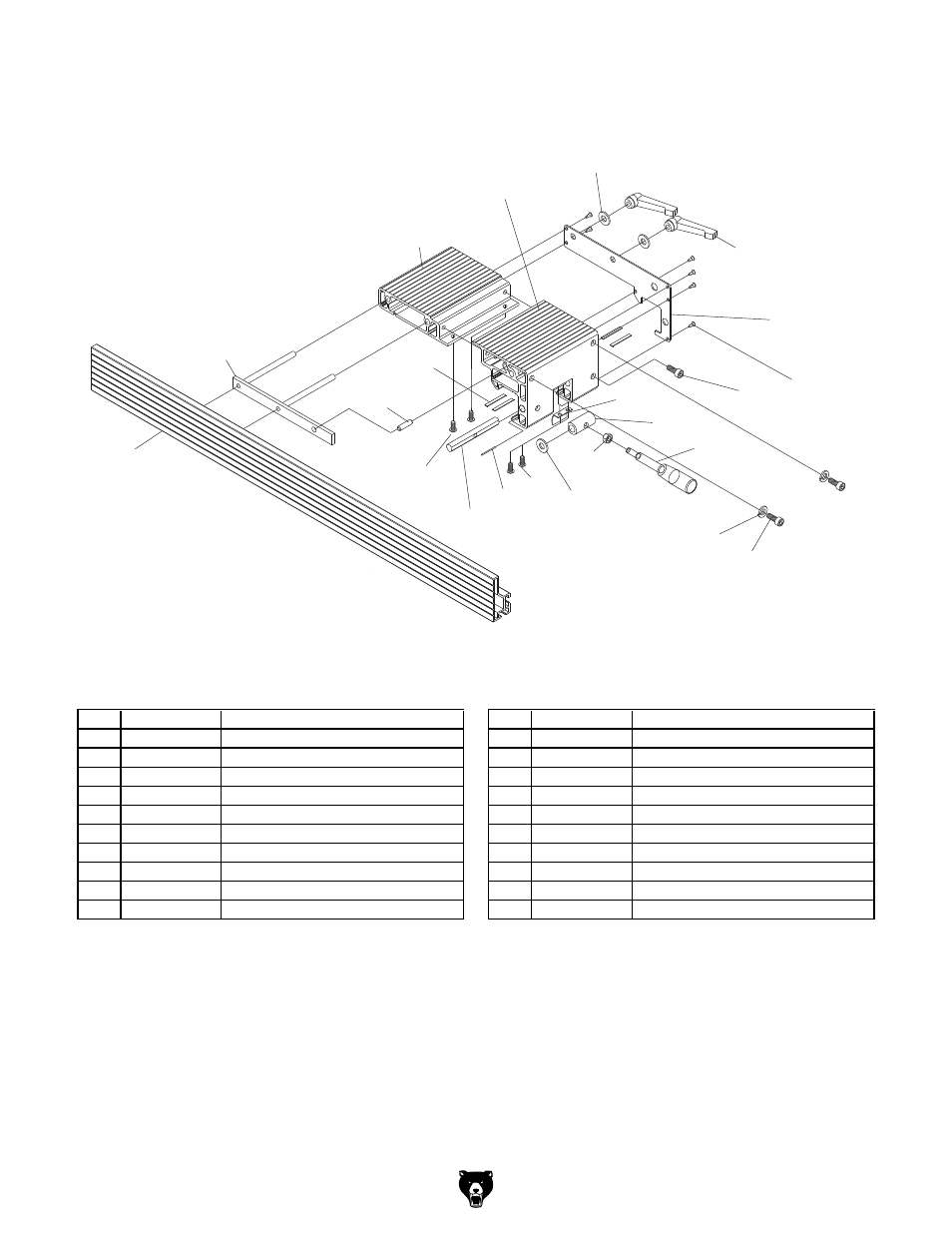

rip fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P0623X0501 RIP FENCE 512 P0623X0512 TAP SCREW
502 P0623X0502 CLAMP PLATE 513 P0623X0513 LOCK PLATE HANDLE M8-1.25
503 P0623X0503 STEEL PIN 6MM 514 PW01M FLAT WASHER 8MM
504 P0623X0504 ROD 515 P0623X0515 RIP FENCE FRONT HOUSING
505 P0623X0505 HDPE STRIP 516 P0623X0516 RIP FENCE REAR HOUSING
506 PFS07M FLANGE SCREW M5-.8 X 10 517 P0623X0517 PLASTIC SCREW
507 PN03M HEX NUT M8-1.25 518 PLW04M LOCK WASHER 8MM
508 P0623X0508 FENCE LOCK HANDLE 519 PCAP14M CAP SCREW M8-1.25 X 20
509 P0623X0509 SLEEVE 520 PFH02M FLAT HD SCR M6-1 X 12
510 P0623X0510 SPRING PRESSURE PLATE 521 P0623X0521 WAVY WASHER 12MM
511 P0623X0511 COVER PLATE 522 P0623X0522 HDPE STRIP 50 X 5MM
