G0623x wiring diagram, 230 vac, Power connection box blade guard limit switch – Grizzly G0623X3 User Manual
Page 75
Model G0623X/G0623X3 (Mfg. Since 5/12)
-73-
READ ELECTRICAL SAFETY
ON PAGE 72!

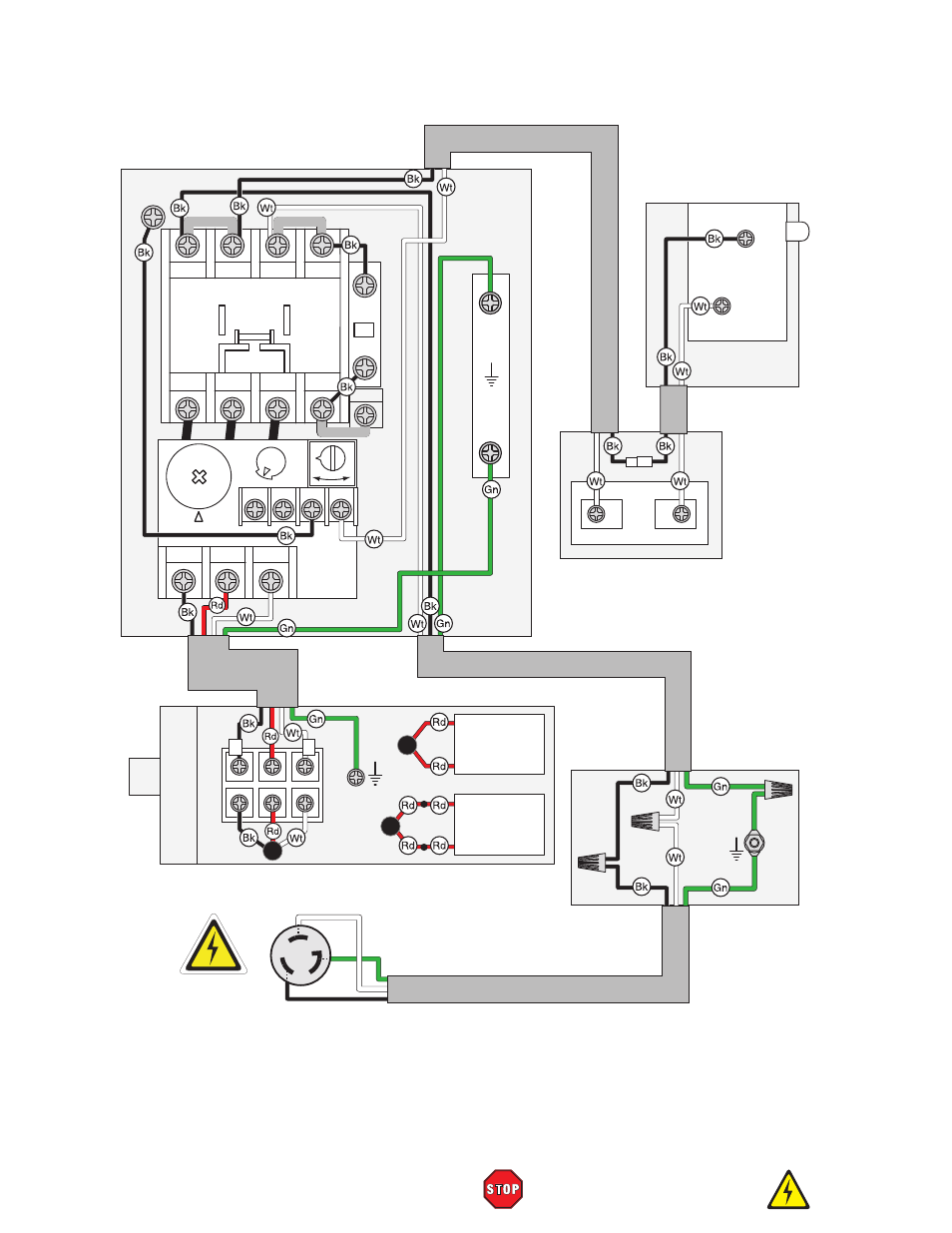

g0623X Wiring diagram
Start
Capacitor
400MFD
250VAC
Run
Capacitor
30MFD
500VAC
EMERGENCY
STOP SWITCH
MAGNETIC SWITCH
ASSEMBLY
MOTOR 5HP 230V SINGLE-PHASE
L6-30 PLUG (AS RECOMMENDED)
Ground
Hot
Hot
230 VAC
G
X
Y
POWER
CONNECTION
BOX
BLADE GUARD
LIMIT SWITCH
Ground
Ground
Ground
2T1
6T3
14NO
4T2
1L1
5L3
13NO
3L2
NHD C-18D
230V
2T1
4T2
6T3
98
97
17
18
A1
96
O
R
95
17
18
19 20
21
NHD
NTH-21
U
V
A2
