-60-
Model G0623X/G0623X3 (Mfg. Since 5/12)

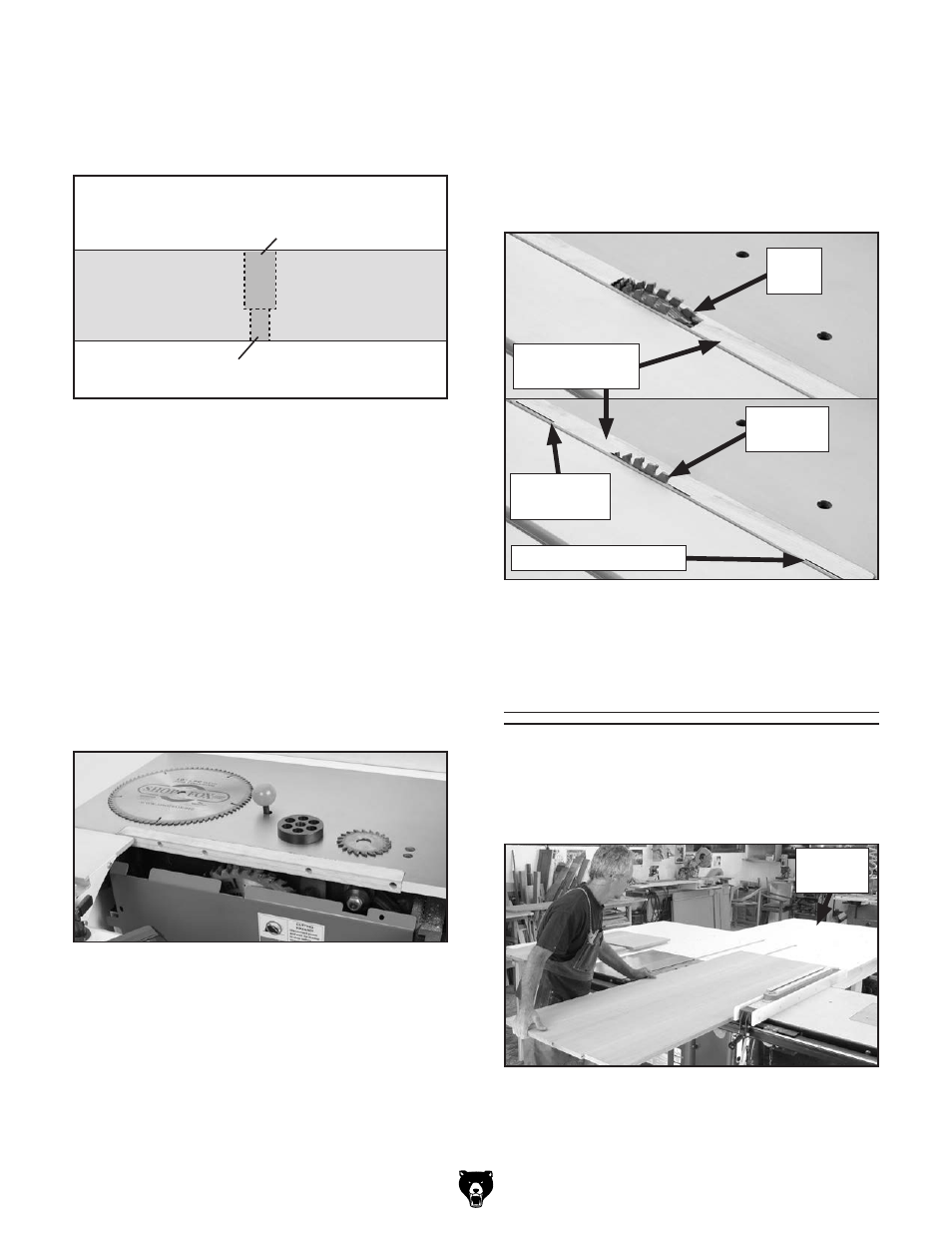

figure 118. example of outfeed table.
outfeed
table
one of the best accessories for improving the
safety and ease of using a table saw is simply
placing a large table (outfeed table) behind the
saw to catch the workpiece.
outfeed table
9. Countersink the holes you drilled in step 7
(see figure 115), so the heads of the mount-
ing screws can be recessed into the table
insert when installed.
figure 115. Countersinking mounting holes.
13 ⁄
32
" Hole
Countersink
for Screw Head
7 ⁄
32
" Hole
for Screw Threads
Cutaway View
of Drilled Hole
New
Table Insert
figure 116. New zero-clearance table insert
installed to be cut with a dado blade.
10. install the blade you will use to cut the insert,
making sure the blade flange is used on the
front of the blade behind the arbor nut, then
lower the blade completely.
11. test fit the new table insert in the table, then
sand the corners or trim the ends as neces-
sary to get a precise fit.
12. mount the new table insert into the table and
check to make sure that it is flush with the top
of the table. if necessary, remove the insert
and sand the top of it down until it will mount
up flush with the table top (see
figure 116).
14. Close the cover over the blade and move the
sliding table to the center of the saw.
15. Connect the saw to power, start the motor,
and slowly raise the blade into the zero-
clearance table insert (see
figure 117) only
as high as you intend to cut with the insert.
13. (This step only for standard blades.) use a
bandsaw or jigsaw to cut slots or notches that
will allow the riving blade to be installed with
minimal open space around it. if you plan to
use the scoring knife, do the same for that
blade (we do not recommend using the scor-
ing blade to cut the slot in the insert because
the adjustment screw is inside the cabinet).
figure 117. zero-clearance table inserts for
dado and standard blades.
dado
blade
slot for
riving Knife
standard
blade
slot for scoring blade
zero-clearance
table insert
