Grizzly G0623X3 - Manual (Page 79)

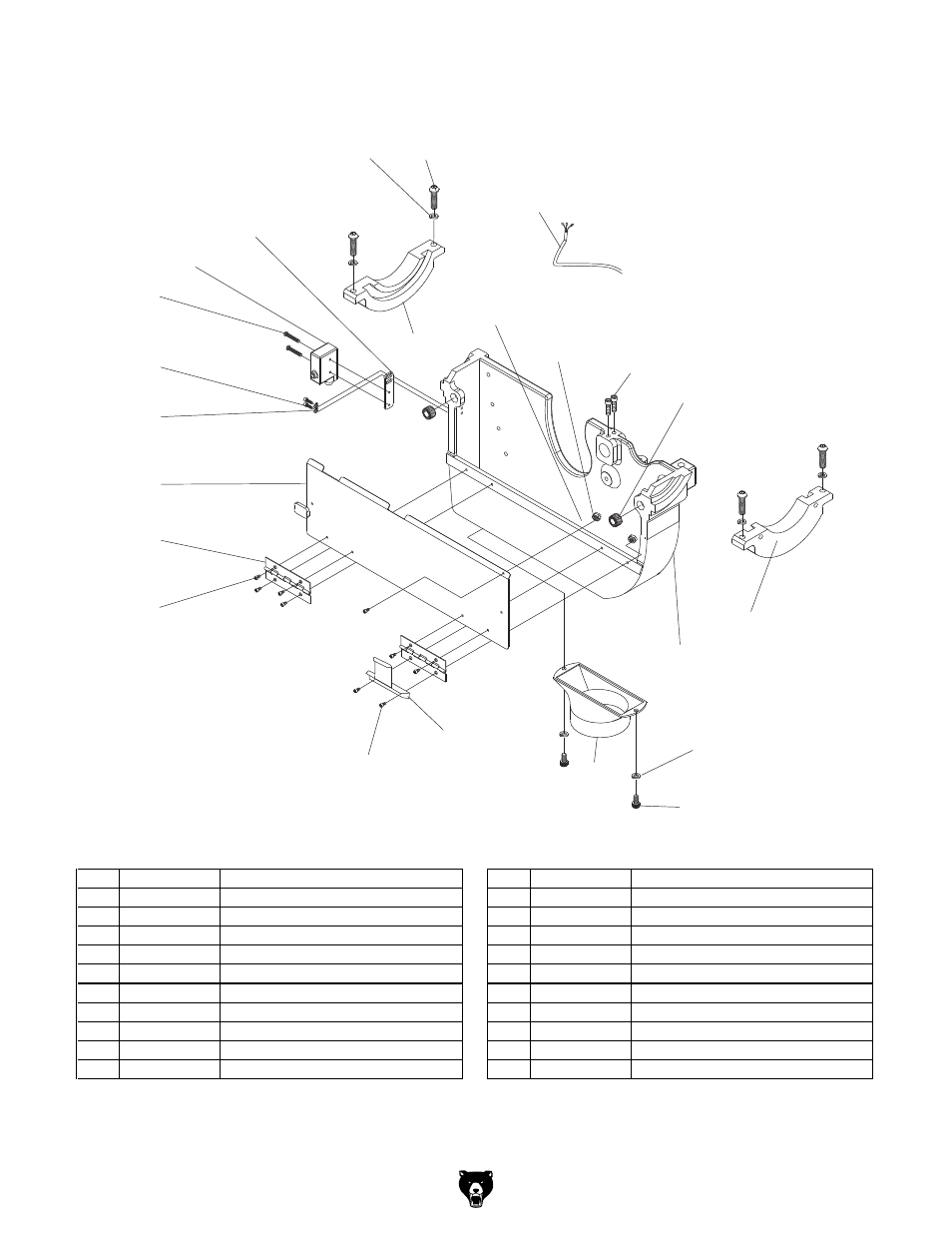

Model G0623X/G0623X3 (Mfg. Since 5/12)
-77-
123
119
122
121
120
104
118
117
115
114
113
112
111
110
109
108
107
103
102
102
101
105
106
main trunnion
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P0623X0101 CHANNEL BASE 112 PLW04M LOCK WASHER 8MM
102 P0623X0102 TRUNNION BRACKET 113 P0623X0113 BLADE GUARD PLATE
103 PCAP04M CAP SCREW M6-1 X 10 114 P0623X0114 HINGE
104 PLW03M LOCK WASHER 6MM 115 PS09M PHLP HD SCR M5-.8 X 10
105 PCAP11M CAP SCREW M8-1.25 X 16 117 P0623X0117 MAGNET ASSEMBLY
106 PBHS04M BUTTON HD CAP SCR M8-1.25 X 35 118 P0623X0118 BLADE SHROUD DUST PORT
107 PLW04M LOCK WASHER 8MM 119 PS22M PHLP HD SCR M5-.8 X 25
108 P0623X0108 STOP BRACKET 120 PLN02M LOCK NUT M5-.8
109 P0623X0109 LIMIT SWITCH AZZ7100 121 PLW01M LOCK WASHER 5MM
110 PS18M PHLP HD SCR M4-.7 X 25 122 P0623X0122 KEEPER PLATE
111 PCAP50M CAP SCREW M5-.8 X 10 123 P0623X0123 CORD
