-70-
Model G0623X/G0623X3 (Mfg. Since 5/12)

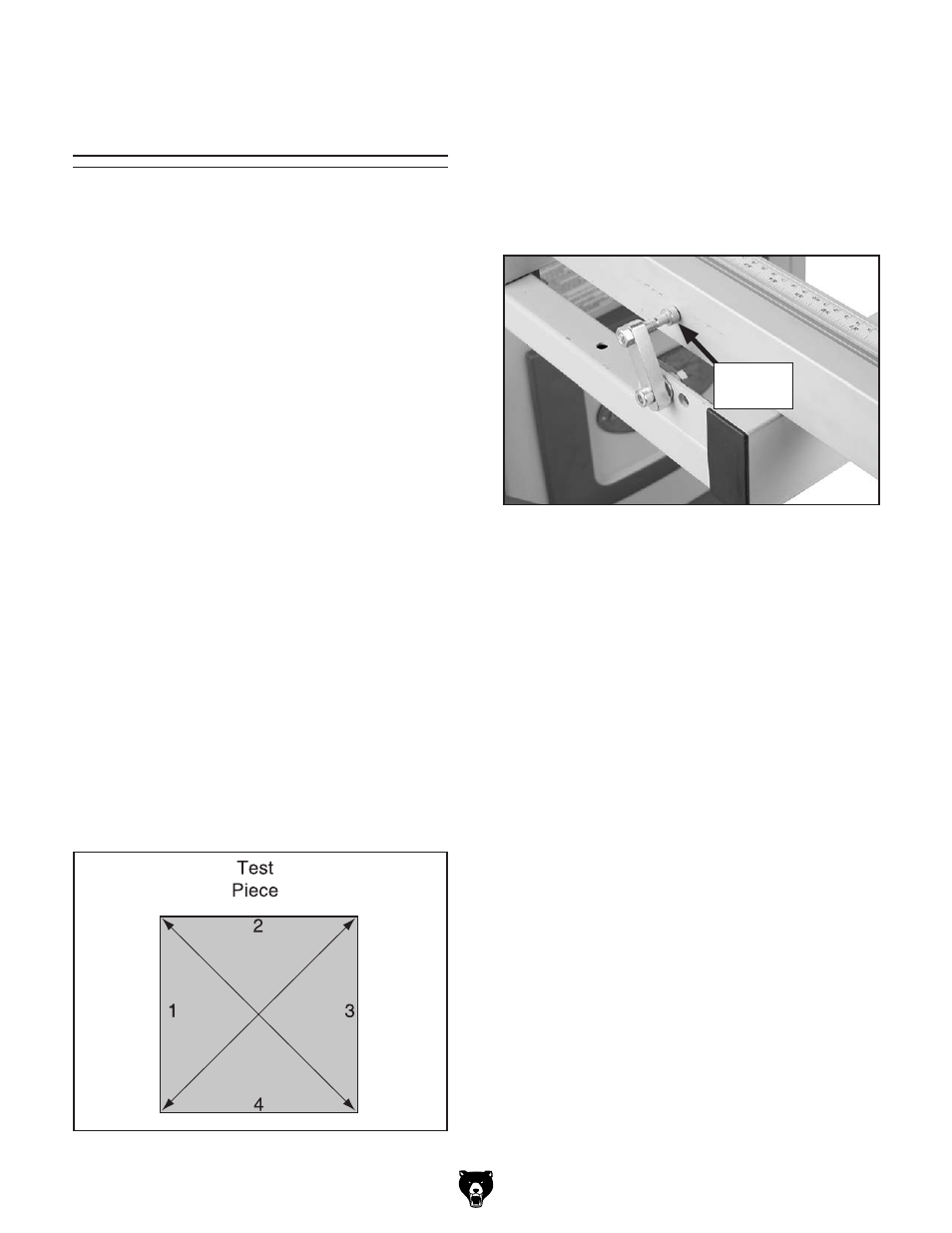

figure 132. fence adjustment test piece.
5. loosen the knob on the crosscut fence to
allow it to pivot (make sure 90° stop bolt
remains against the fence during adjust-
ments).
6. loosen the hex nut on the 90° stop bolt
shown in figure 133, and rotate the 90° stop
bolt to square the crosscut fence.
7. tighten the hex nut on the 90° stop bolt, then
tighten the crosscut fence knob, making sure
the block is touching the 90° stop bolt.
8. repeat steps 3-4.
squaring the crosscut fence to the blade ensures
that cuts made with the crosscut fence will be
square. this procedure can be done by using a
piece of scrap plywood as a test piece and mak-
ing five test cuts, then adjusting the fence as
necessary.
to square the crosscut fence with the blade:
1. make sure the blade is parallel with the slid-
ing table and that the crosscut fence is rest-
ing against the 90° stop bolt (see
figure 133
for locations).
2. prepare the scrap test piece by cutting it to
32" x 32", then number all four sides of the
test piece.
3. use the crosscut fence to cut 1 ⁄
2
" off of each
side of the test piece, then cut side 1 again
(make five cuts total).
4. measure the test piece diagonally from cor-
ner-to-corner as shown in figure 132.
— if both measurements are not within 1 ⁄
16
",
then the crosscut fence needs to be adjust-
ed. proceed to
steps 5–8.
— if both measurements are within 1 ⁄
16
" then
no adjustments need to be made. you are
finished with this procedure.
squaring crosscut
fence to blade
figure 133. Crosscut fence adjustment cam.
90° stop
bolt
