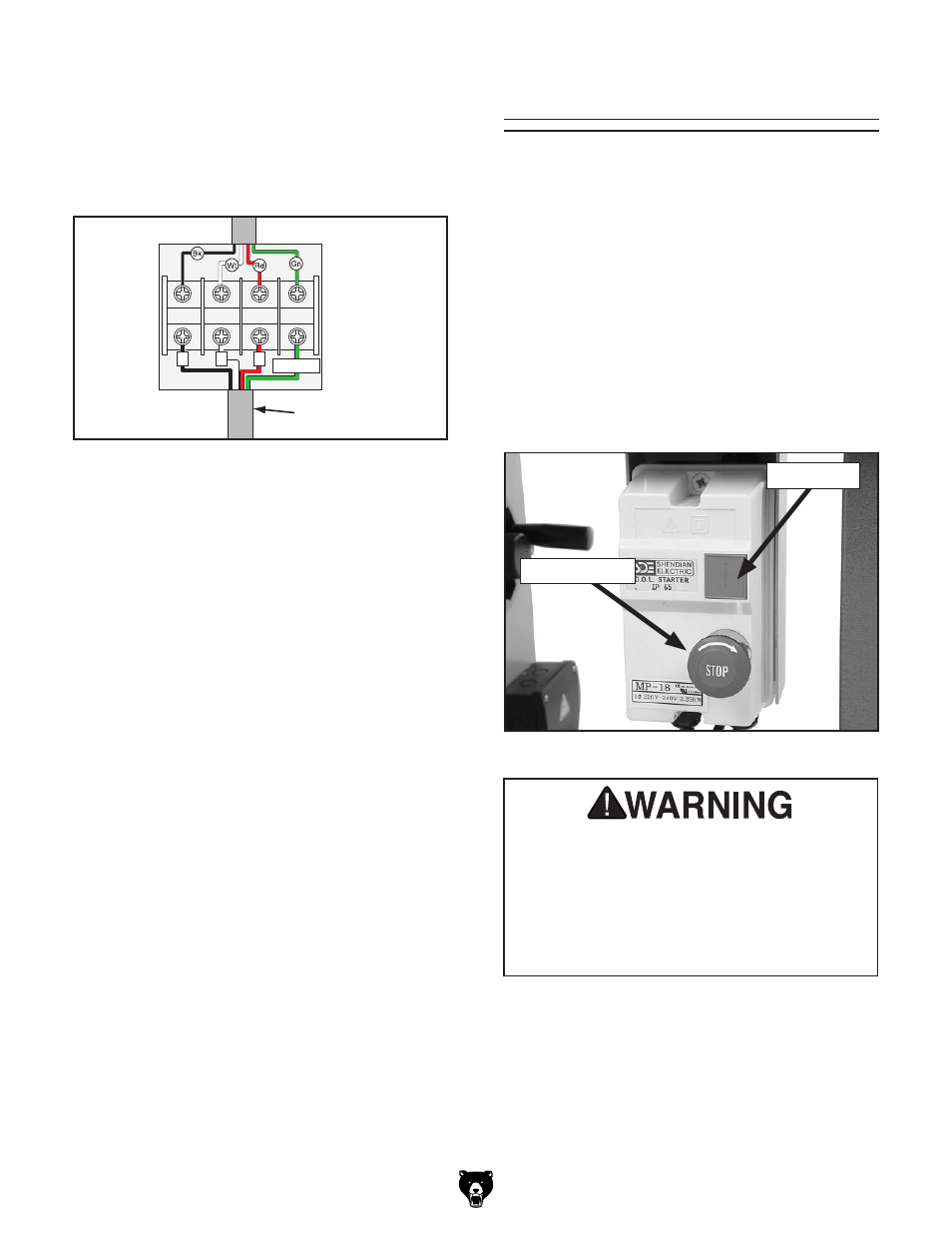

-32-
Model G0623X/G0623X3 (Mfg. Since 5/12)
test run
after the machine has been connected to the
power source, the machine must be test run to
make sure all the controls and safety components
function properly before the machine is placed
into regular operation.
it is extremely important that all steps in this sec-
tion be followed very closely, in the order given,
to ensure that the safety features are tested cor-
rectly.
before beginning the test run, review the power
controls shown in
figure 52 and identification
on page 3.
figure 52. main power controls.
oN button
stop button
if the machine does not operate as stated
in this section, review the troubleshooting
section on page 64. if you need additional
help, call tech support at (570) 546-9663.
do not place a machine into regular opera-
tion if you suspect that it is malfunctioning,
or serious injury could occur.
g0623X3: Connect the incoming power wires
to the terminals shown in
figure 51.
4. tighten the strain relief on the bottom of
the connection box against the power cord
(g0623X or g0623X3, 230v/220v) or con-
duit (g0623X3, 440v)—not directly against
the power cord or the wires—then close the
cover. leave a little slack in the wires inside
the box.
note: If using a phase converter, connect the
manufactured power leg to the #2 terminal to
prevent damage.
figure 51. g0623X3 power connection termi-
nals.
1 2 3 4
Incoming
Power Line
R S T Ground
