Page 99
10-2

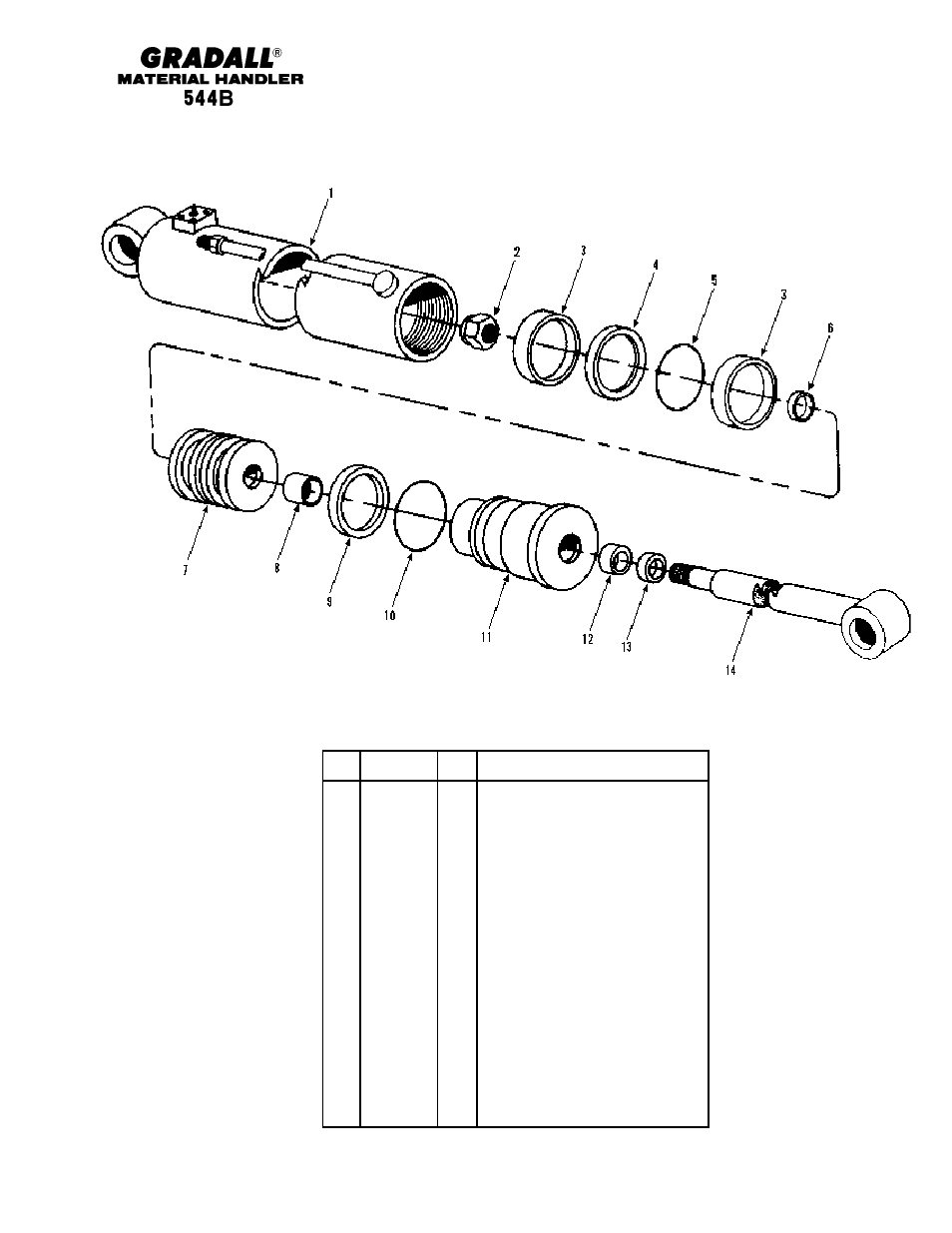

HYDRAULIC COMPONENTS
Crowd Cylinder
Starting Serial No. 0155299S
Original Issue 3-90
Revised 1-91
Item
Part No.
Qty.
Description Of Part
9104-3300
1
CROWD CYLINDER ASSY (includes
all items)
9103-4290
1
SEAL KIT (includes items 3, 4, 5, 6, 9,
10, 12 & 13)
1
9104-4326
1
TUBE ASSY
2
9103-4286
1
LOCKNUT (torque to 590 ft. lbs.)
3
2
WEAR RING
4
1
SEAL
5
1
O-RING
6
1
O-RING
7
9103-4291
1
PISTON
8
9104-4327
1
STOP TUBE
9
1
BACK-UP RING
10
1
O-RING
11
9103-4293
1
GLAND
12
1
SEAL
13
1
WIPER
14
9104-4328
1
ROD ASSY
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE
