Hydraulic components steering cylinder – Gradall 544B Parts Manual User Manual
Page 105
10-7
Item
Part No.
Qty.
Description Of Part
9104-3316
2
STEERING CYLINDER ASSY
(includes all items)
9103-4301
1
SEAL KIT (includes items 5, 6, 7, 8,
10, 12, & 13 )
1
9103-4302
1
TUBE ASSY
2
9108-4194
1
BUSHING
3
8867-1033
1
LUBE FITTING, STRAIGHT 1/4-28
4
9103-4303
1
LOCK NUT (torque to 235 ft. lbs.)
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9103-4304
1
PISTON
10
1
O-RING
11
9104-4305
1
GLAND
12
1
SEAL
13
1
WIPER
14
9104-4368
1
ROD ASSY
15
9108-4182
1
BUSHING
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.

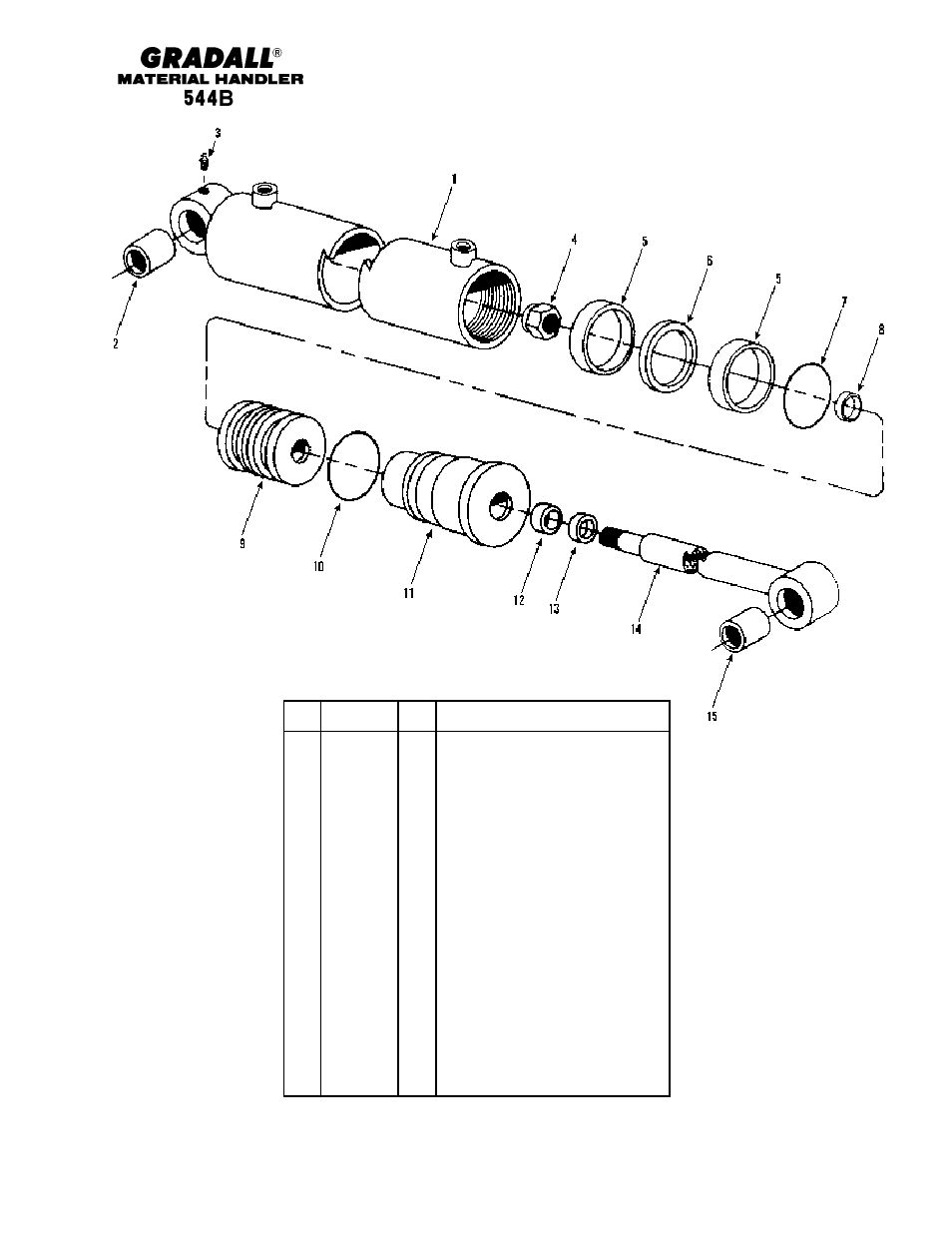

HYDRAULIC COMPONENTS
Steering Cylinder
Starting Serial No. 0155299S
Original Issue 3-90
