13-11
OPTIONAL EQUIPMENT

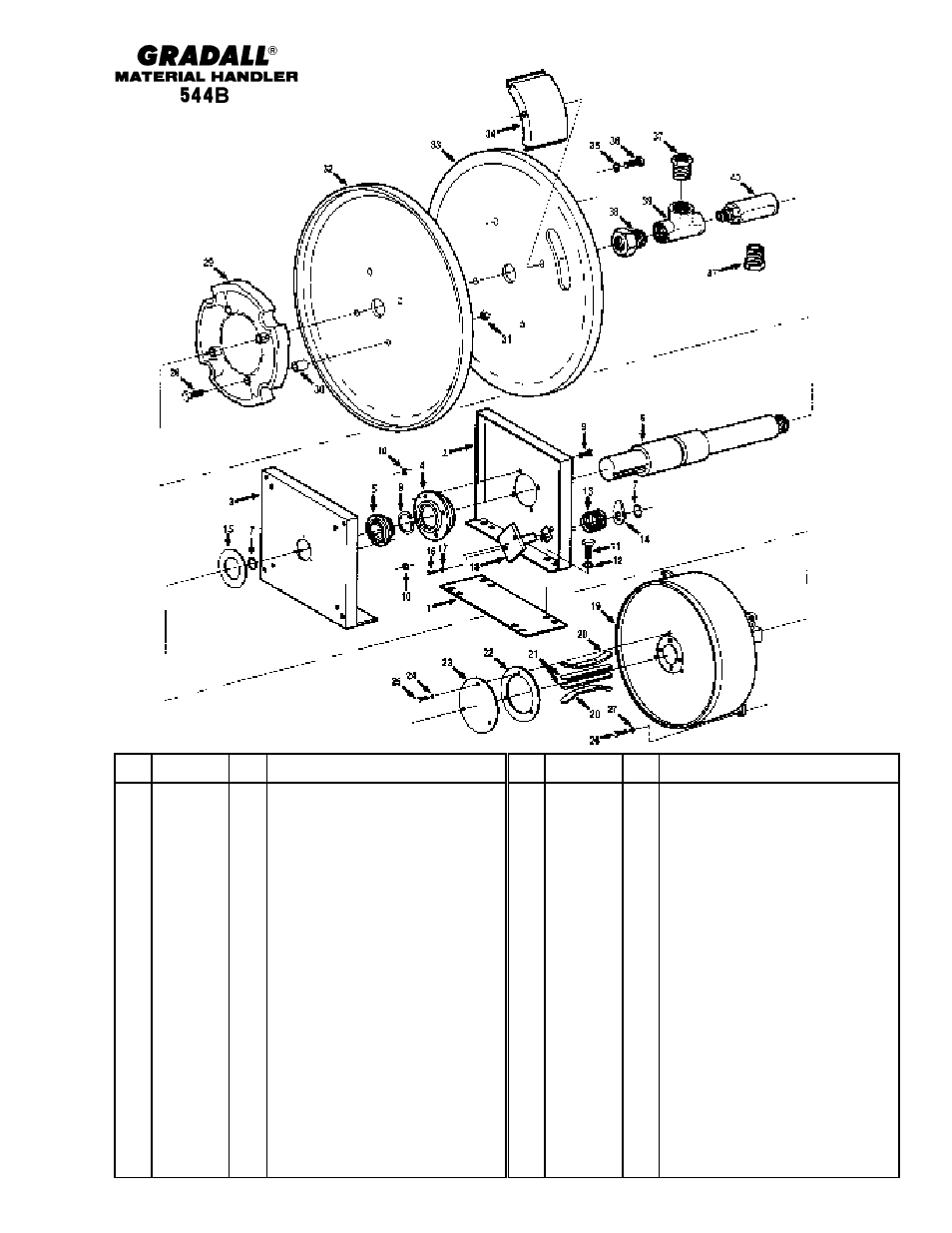

(9104-3165) Single Hose Reel Assembly
Starting Serial No. 0155299S
Original Issue 3-90
Revised 10-22-96
Item Part No. Qty. Description Of Part
9104-3165 1 SINGLE HOSE REEL ASSY
(includes all items)
9104-4287 1 FRAME ASSY (includes items 1 2, 3,
4, 5, 8, 9, 11 & 12)
9104-4476 1 HOLDING DOG & RACHET KIT
(optional) (includes items 13 thru 18)
1 9104-4477 1 BASE PLATE
2 9104-4478 1 FRAME, DRUM END
3 9104-4479 1 FRAME, SPRING END
4 9104-4294 1 BEARING, FLANGETTE
5 9104-4293 1 BEARING, FLANGETTE
6 9104-4480 1 SHAFT
7 9104-4481 2 RETAINING RING
8 9104-4482 1 RETAINING RING
9 9104-4483 4 BOLT
10 9104-4484 7 NUT
11 9104-4485 4 BOLT
12 9104-4486 8 LOCKWASHER
13 9104-4487 1 SPRING
14 9104-4488 1 HOLDING DOG
15 9104-4292 1 GASKET
16 9104-4489 2 BOLT
17 9104-4490 2 LOCKWASHER
18 9104-4491 1 SHAFT ASSY
Item Part No. Qty. Description Of Part
19 9104-4291 1 SPRING MOTOR KIT (standard)
9104-4492 1 SPRING MOTOR KIT (opt. reverse)
20 9104-4289 2 PAWL SPRING
21 9104-4290 2 PAWL
22 9104-4288 1 GASKET
23 9104-4493 1 HUB COVER
24 8855-1006 3 LOCKWASHER, #8
25 9104-4494 3 ROUND HD MACHINE SCREW
26 8820-1075 4 HEX HD CAPSCREW, 1/2-13X3-1/2,
GR5
27 9104-4495 8 LOCKWASHER
28 9104-4496 4 BOLT
29 9104-4497 1 RATCHET PLATE
30 9104-4498 4 SPACER
31 9104-4499 4 NUT
32 9104-4500 1 DRUM DISC
33 9104-4501 1 DRUM DISC
34 9104-4502 4 DRUM CORE SEGMENT
35 8855-1009 4 LOCKWASHER, 1/4
36 8820-1001 4 HEX HD CAPSCREW, 1/4-20X1/2,
GR5
37 9104-4503 2 REDUCER
38 9104-4504 1 REDUCER
39 9104-4505 1 TEE
40 9104-4296 1 SWIVEL JOINT
* Changed quantity on item 7, fixed art to reflect this change. KG
*
