Page 124
10-22

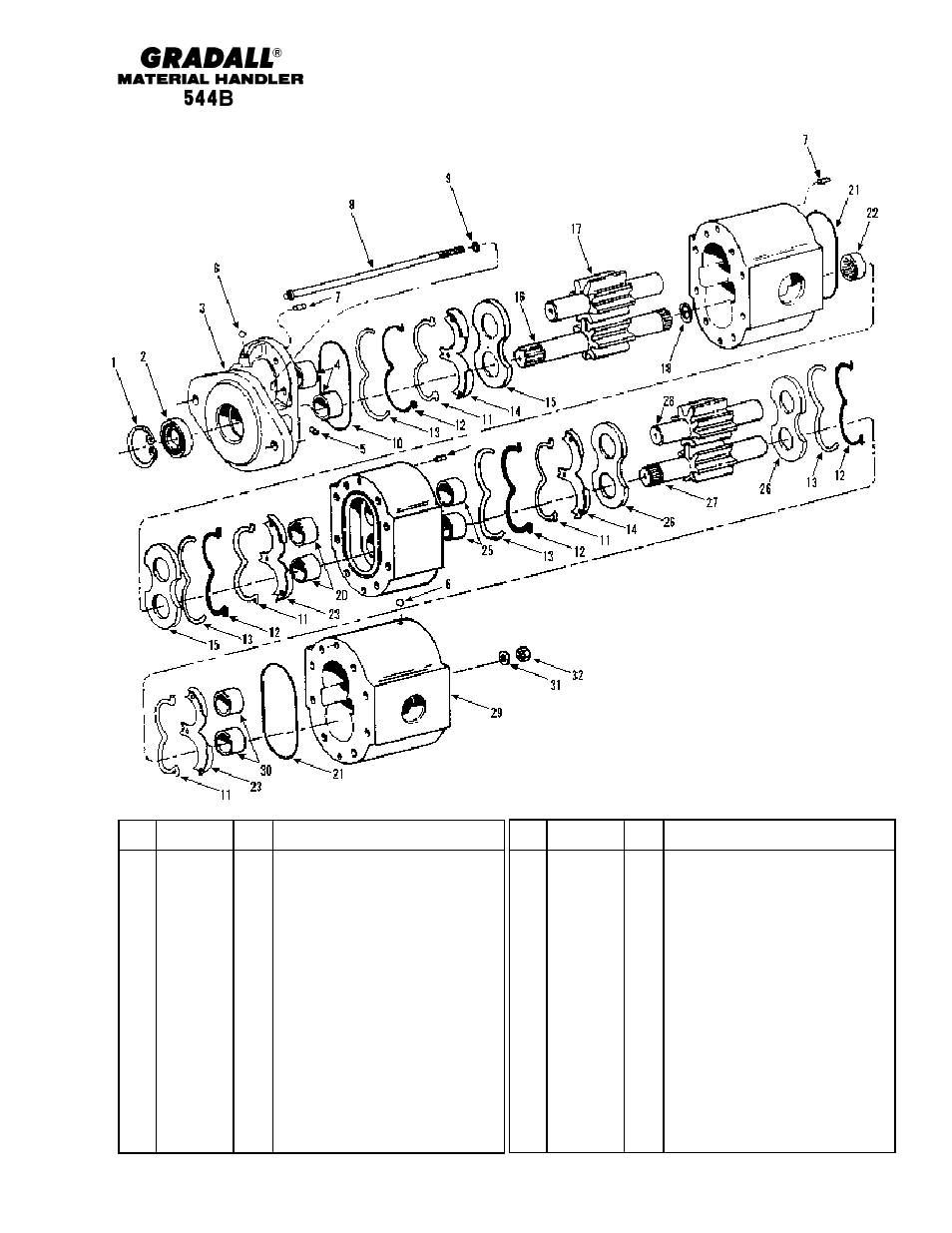

HYDRAULIC COMPONENTS
Main Hydraulic Pump
Starting Serial No. 0155299S
Original Issue 3-90
Item
Part No.
Qty.
Description Of Part
9104-3175
1
MAIN HYDRAULIC PUMP ASSY
(includes all items)
1
9020-2372
1
SNAP RING
2
9020-2371
1
SEAL
3
9104-4211
1
FLANGE ASSY (includes item 4)
4
9104-4212
2
BUSHING
5
9104-4213
1
PLUG
6
9020-2435
2
BALL
7
9102-2376
6
DOWEL
8
9104-4214
8
STUD
9
9020-2383
8
O-RING
10
9020-2379
1
O-RING
11
9020-2404
4
BACK UP RING
12
9020-2403
4
O-RING
13
9020-2405
4
RETAINER RING
14
9020-2407
2
BOTTOM ISOLATION
15
9020-2399
2
PRESSURE PLATE
16
9104-4215
1
FRONT DRIVE GEAR
17
9104-4216
1
FRONT IDLER GEAR
Item
Part No.
Qty.
Description Of Part
18
9020-2402
1
SNAP RING
19
9104-4217
1
FRONT GEAR BODY ASSY
(includes item 20)
20
9104-4212
2
BUSHING
21
9020-2396
2
O-RING
22
9104-4218
1
SPLINE COUPLING
23
9020-2406
2
TOP ISOLATION PLATE
24
9020-2419
1
BEARING PLATE ASSY (includes
item 25)
25
9104-4219
1
BEARING P LATE ASSY (includes
item 25)
26
9104-4220
2
PRESSURE PLATE
27
9020-2416
1
REAR DRIVE GEAR
28
9020-2415
1
REAR IDLER GEAR
29
9104-4221
1
REAR GEAR BODY ASSY (includes
item 30)
30
9104-4219
2
BUSHING
31
9104-4222
8
FLAT WASHER
32
9104-4223
8
HEX NUT
