Gradall 544B Parts Manual - Manual (Page 48)

DRIVE TRAIN

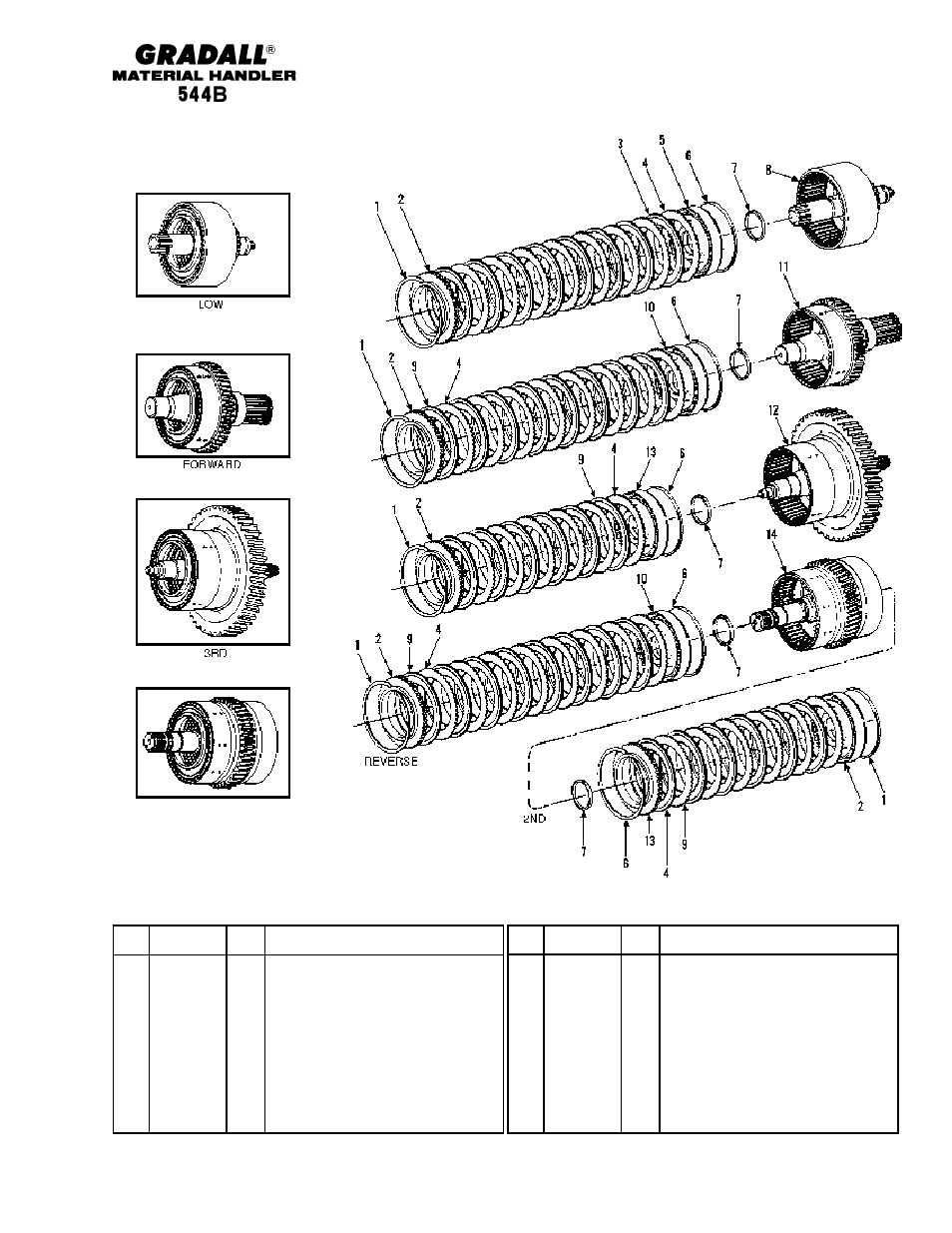

Transmission Clutch Assemblies
Starting Serial No. 0155299S
Original Issue 3-90
6-8
Item Part No. Qty. Description Of Part
1 7710-4188 5 SNAP RING
2 7710-4189 5 CLUTCH DISC BACKING PLATE
3 7710-4190 8 CLUTCH INNER DISC (LOW)
4 7710-4191 36 CLUTCH OUTER DISC
5 7710-4192 1 CLUTCH PISTON (LOW)
6 7710-4193 5 OUTER CLUTCH PISTON RING
7 7710-4194 5 INNER CLUTCH PISTON SEAL
8 9020-4935 1 LOW CLUTCH SHAFT, DRUM &
BLEED VALVE ASSY
9 7710-4209 28 CLUTCH INNER DISC (FORWARD,
3RD, REVERSE & SECOND)
Item Part No. Qty. Description Of Part
10 9020-4938 2 CLUTCH PISTON (FORWARD,
REVERSE & 2ND)
11 9020-4939 1 FORWARD SHAFT, DRUM & PLUG
ASSY
12 9020-6403 1 THIRD CLUTCH SHAFT, DRUM &
PLUG ASSY
13 7710-4230 2 CLUTCH PISTON (3RD & 2ND)
14 9020-4944 1 REVERSE & 2ND SHAFT, DRUM,
PLUG ASSY
