Page 26
3-5
KG
!
NOTE: When purchasing item (1) Push
Beam Weldment (9104-6049), the
rub pads may need to be hand
ground for proper fit when
installing the sheave assy.

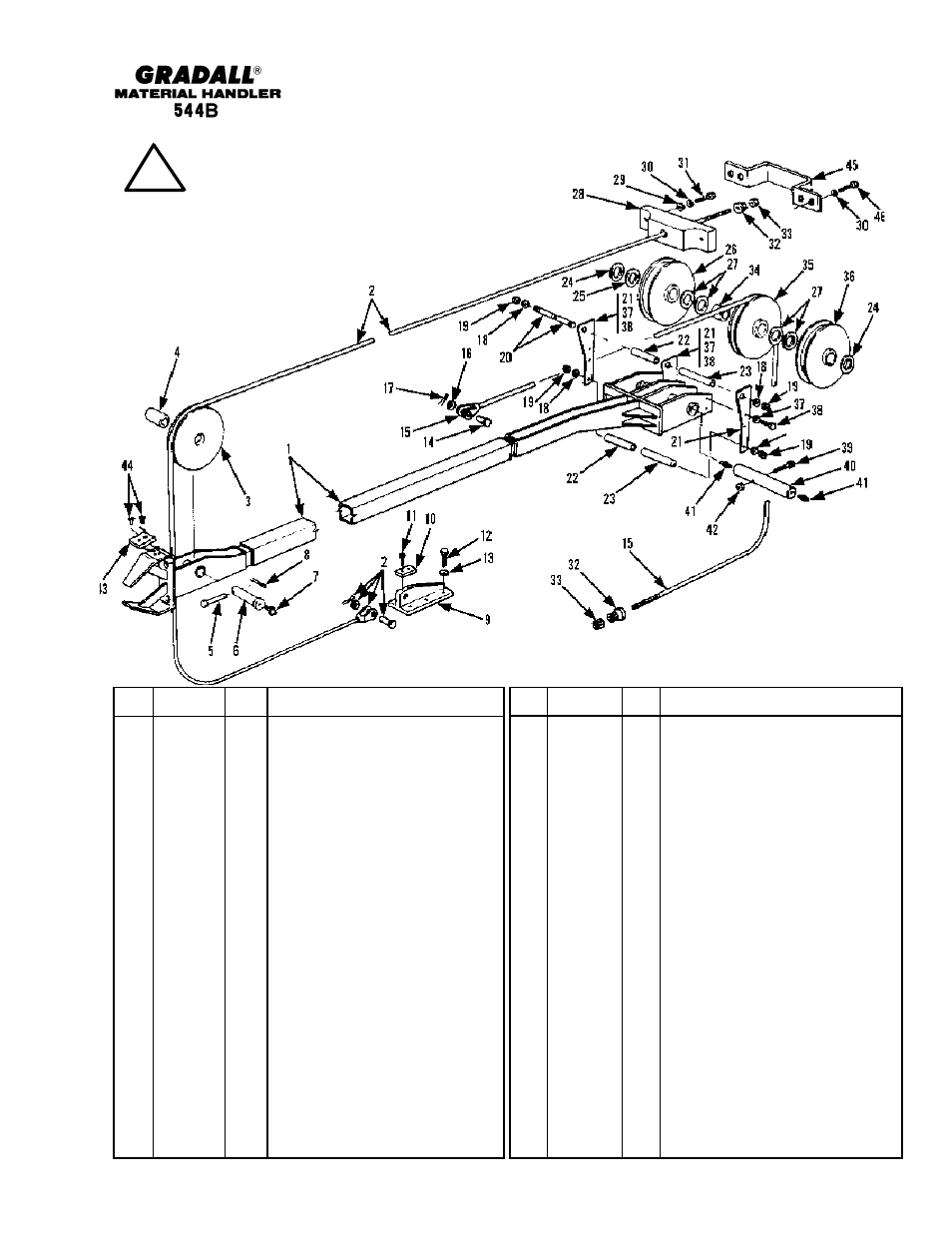

BOOMS
Push Beam & Cables
Starting Serial No. 0155299
Original Issue 3-90
Revised 5-6-97
Item
Part No.
Qty.
Description Of Part
25
9020-3040
1
THRUST WASHER
26
9104-3101
1
SHEAVE
27
9020-0253
4
THRUST WASHER
28
9104-1013
1
STRONGBACK PLATE
29
8540-1340
2
HARDENED WASHER
30
8855-1013
6
LOCKWASHER, 1/2
31
8820-1071
2
HEX HD CAPSCREW, 1/2-13X2-1/2,
GR5
32
9002-8965
2
FLANGE HALF
33
8850-1116
2
HEX JAM NUT, 1"-8
34
1
BUSHING
35
9103-5147
1
SHEAVE ASSY (includes item 34)
36
9104-3100
1
SHEAVE
37
8856-1109
6
FLAT WASHER, 3/8
38
8820-1033
6
HX HD CAPSCREW, 3/8-16X3/4
39
8820-1044
1
HEX HD CAPSCREW, 3/8-16X3-1/4,
GR5
40
9104-1008
1
PUSH BEAM PIN
41
8867-1008
2
LUBE FITTING, STRAIGHT, 1/4-28
42
8852-1006
1
HEAVY HEX JAM LOCKNUT, 3/8-16
43
9104-3261
1
BEARING PAD
44
8830-1339
2
FLAT HD MACHINE SCREW,
3/8-16X1
45
9104-1510
1
BOOM CABLE GUARD
46
8820-1067
4
HEX HD CAPSCREW, 1/2-13X1-1/2,
GR5
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
Item
Part No.
Qty.
Description Of Part
1
9104-6049
1
PUSH BEAM WELDMENT
2
9104-3418
1
EXTENSION CABLE (includes
mounting hardware)
3
9104-5126
1
SHEAVE ASSY (includes item 4)
4
1
BUSHING
5
9002-1608
1
CLEVIS PIN
6
9104-1232
1
SHEAVE PIN
7
8867-1002
1
LUBE FITTING, STRAIGHT, 1/8
8
8863-1310
1
COTTER PIN, 3/32X1
9
9104-6052
1
CABLE ANCHOR
10
9104-3099
1
BEARING PAD
11
8824-1030
2
SOCKET FLAT HD CAPSCREW,
1/4-20X5/8
12
8320-1003
6
HEX HD CAPSCREW, 5/8-11X1-3/4
(nylok) GR8
13
7714-1077
6
HARDENED WASHER
14
9104-3062
1
CABLE PIN
15
9104-3047
1
RETRACTION CABLE
16
8856-1013
1
FLAT WASHER
17
8863-1339
1
COTTER PIN, 3/16X2
18
8855-1011
4
LOCKWASHER, 3/8
19
8850-1006
8
HEX NUT, 3/8-16
20
9104-1012
2
HOSE RETAINER STUD
21
9104-1404
3
HOSE RETAINER PLATE
22
9104-1406
2
RETAINER ROLLER, 5" LONG
23
9104-1405
2
RETAINER ROLLER, 8-1/2" LONG
24
9020-3039
2
THRUST WASHER
* Changed part numbers on items 2, 43 & 44, changed quantities on items 37 &
42, and removed items 47 & 48.
*
*
*
*
*
