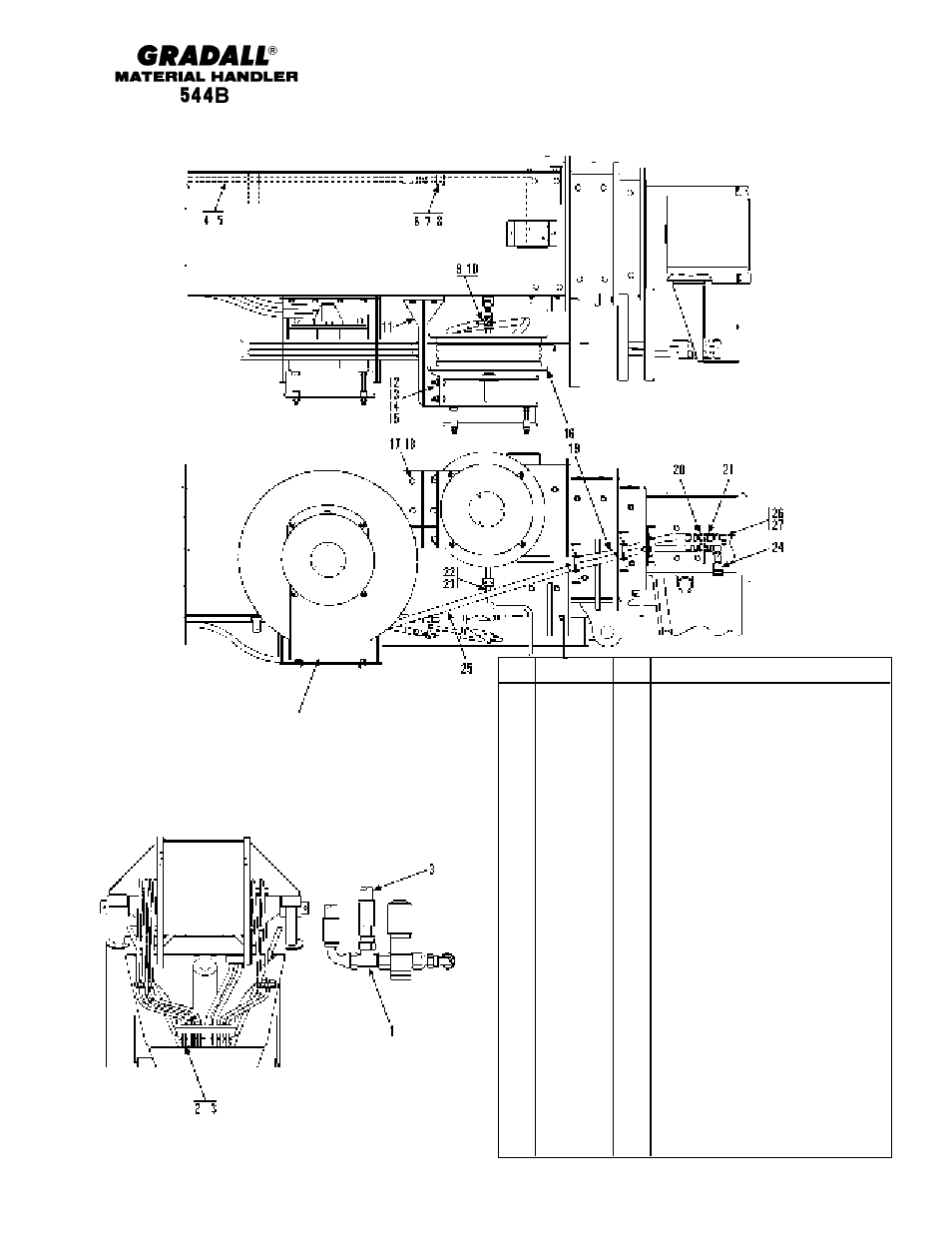

SEE PAGE 13-2 FOR DUAL
HOSE REEL & HYDRAULIC SYSTEM
AUXILIARY VIEW
OF SOLENOID VALVE
ON ENGINE
REAR VIEW OF BOOM
Item
Part No.
Qty.
Description Of Part
1
8866-2240
1
SWIVEL NUT RUN TEE, 1/2 TUBE
2
8866-1065
1
UNION, 1/2 TUBE
3
8471-6377
1
HOSE ASSY
4
8471-7530
1
HOSE ASSY
5
9020-7464
8
HYDRA-ZORB CLAMP
6
7713-3497
2
CLAMP SET
7
7713-3498
2
COVER PLATE
8
7713-3499
4
HEX HD CAPSCREW
9
8866-1013
2
MALE CONNECTOR, 1/2X1/2 TUBE
10
8866-2120
1
ELBOW, 45 DEGREES (swivel nut)
11
9104-6060
1
SINGLE REEL BRACKET
12
8820-1037
4
HEX HD CAPSCREW, 3/8-16X1-1/2,
GR5
13
8856-1004
4
FLAT WASHER, 3/8
14
8855-1011
4
LOCKWASHER, 3/8
15
8850-1006
4
HEX NUT, 3/8-16
16
Ref
SINGLE HOSE REEL ASSY (see
page 13-11 for details)
17
8820-1064
6
HEX HD CAPSCREW, 1/2-13X7/8,
GR5
18
8855-1013
6
LOCKWASHER, 1/2
19
8471-7531
1
HOSE ASSY
20
9002-9939
2
BULKHEAD UNION, 5/8 TUBE
21
9002-9935
1
REDUCER, 5/8 TUBE TO 1/2 TUBE
22
9020-5120
1
HOSE ASSY
23
9104-3322
1
DRAIN TUBE ASSY
24
8471-7925
2
HOSE ASSY
25
9104-3159
1
HOSE ASSY
26
8866-2106
2
ELBOW, 90 DEGREES (swivel nut)
27
7713-3256
1
HOSE ASSY
*
*
*
*
*
OPTIONAL EQUIPMENT
Single Hose Reel & Hydraulic System
Starting Serial No. 0155299S
Original Issue 3-90
Revised 2-14-95
* Change Part Number on item 23, and added Part Numbers 24 thru 27.
13-9
