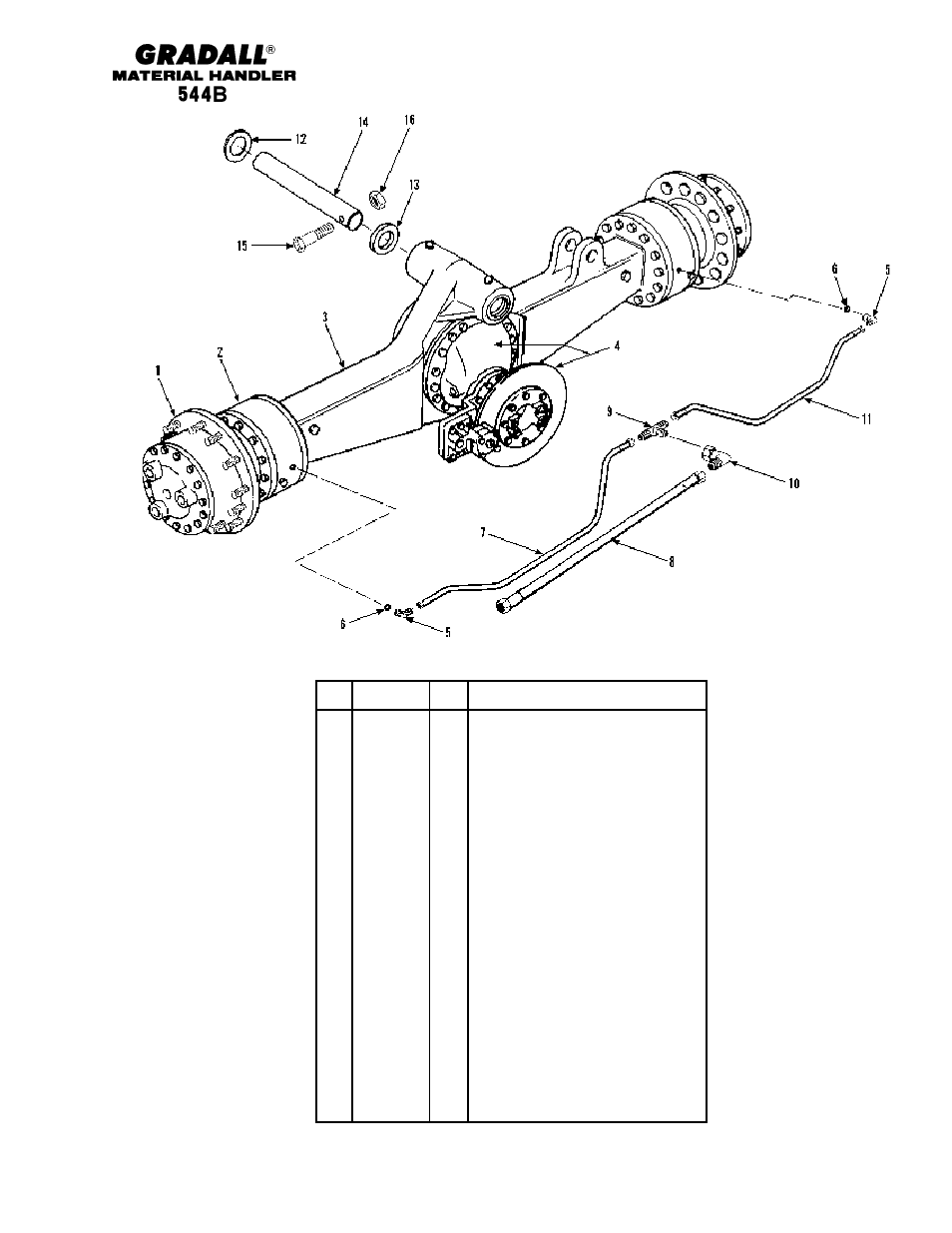

DRIVE TRAIN
Front Axle Assembly
Starting Serial No. 0155309S
Original Issue 7-90
Revised 8-90
6-12 PCN L-8938
Item Part No. Qty. Description Of Part
9103-5208 1 FRONT AXLE ASY (includes
items 1 thru 11)
9103-3359 1 FRONT AXLE ASSY (includes
items 1 thru 4
1 Ref WHEEL END ASSY (see page
6-15 for details)
2 Ref WET DISC BRAKE ASSY (see
page 6-18 for details)
3 Ref HOUSING ASSY (see page 6-13
for details)
4 Ref DIFFERENTIAL CARRIER ASSY &
PAKING BRAKE (see page 6-14 for
details)
5 8866-2064 2 ELBOW, 90 DEGREES (includes
item 6)
6 8859-1204 2 O-RING
7 9103-3374 1 BRAKE LINE, L.H.
8 8471-7524 1 HOSE ASSY
9 8866-1305 1 UNION TEE, 3/8 TUBE
10 8866-2105 1 ELBOW, 90 DEGREES (swivel nut)
11 9103-3373 1 BRAKE LINE R.H.
12 9103-1014 1 SHIM WASHER
13 9020-5891 1 SPACER
14 9108-1176 1 FRONT SWAY PIN
15 8320-1031 1 HEX HD CAPSCREW, 1-8X5, GR8
16 8852-1016 1 HEX LOCKNUT, 1-8
