Page 97
9-16

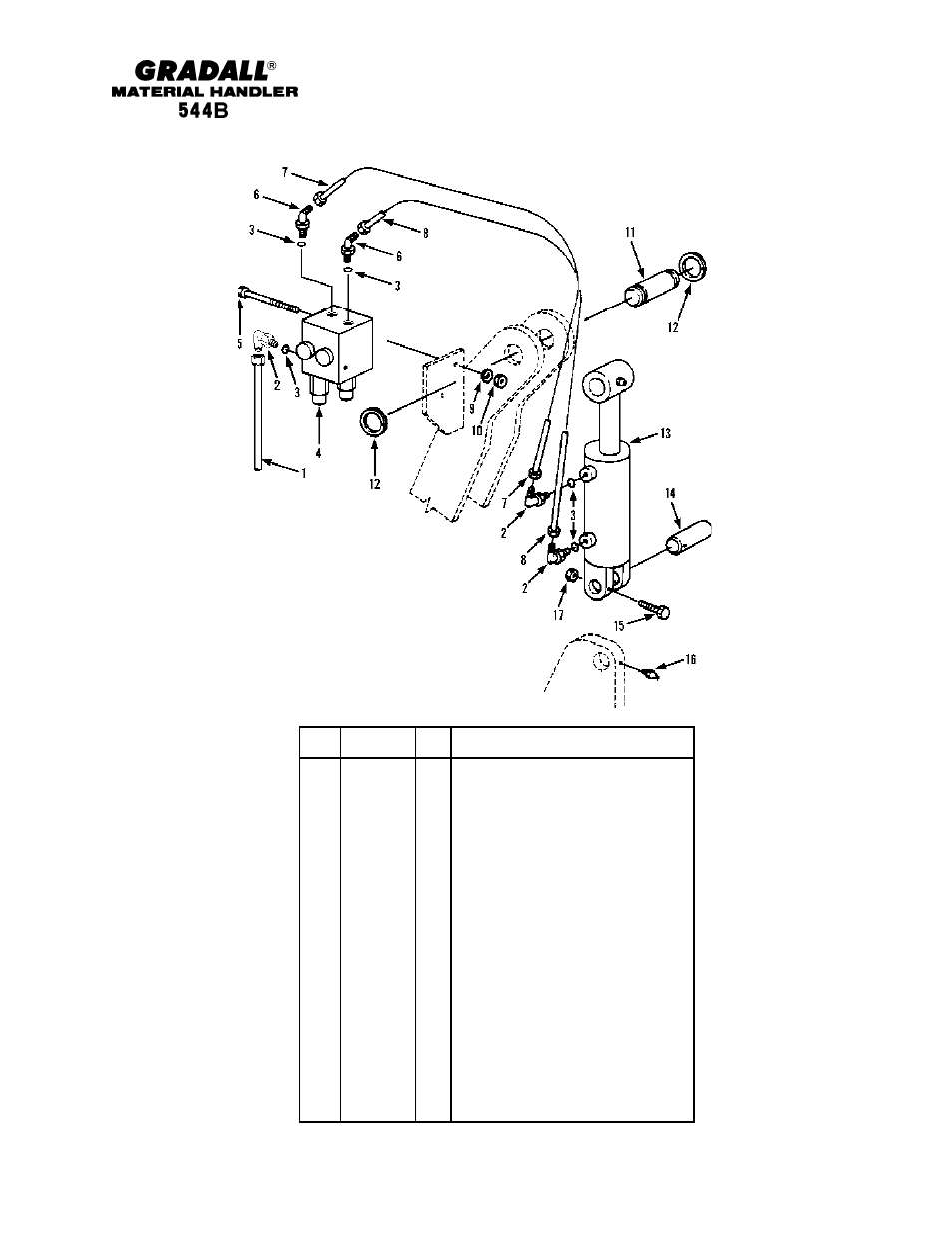

HYDRAULIC CIRCUITS
Stabilizer Cylinder
Starting Serial No. 0155299S
Original Issue 3-90
Item
Part No.
Qty.
Description Of Part
1
8471-7923
1
HOSE ASSY
2
8866-2065
3
ELBOW - 90 DEGREES (includes
item 3)
3
8859-1205
5
O-RING
4
9111-3003
1
STABILIZER VALVE ASSY (see page
10-15 for details)
5
8320-1073
2
HEX HD CAPSCREWP
1-6Z, 3/8-
16X4-1/2, GR5
6
8866-2085
2
ELBOW - 45 DEGREES (includes
item 3)
7
8471-7847
1
HOSE ASSY
8
8471-7848
1
HOSE ASSY
9
8855-1011
2
LOCKWASHER, 3/8
10
8850-1006
2
HEX NUT, 3/8-16
11
9104-1227
1
PIN
12
8858-1140
2
RETAINING RING
13
9104-3303
1
STABILIZER CYLINDER ASSY (see
page 10-8 for details)
14
9104-1561
1
PIN
15
8320-1134
1
HEX HD CAPSCREW, 3/8-16X3-1/4,
GR8
16
8867-1008
1
LUBE FITTING, STRAIGHT, 1/4-28
17
8852-1208
1
HEX LOCKNUT, 3/8-16
