ENGINE & ATTACHING PARTS

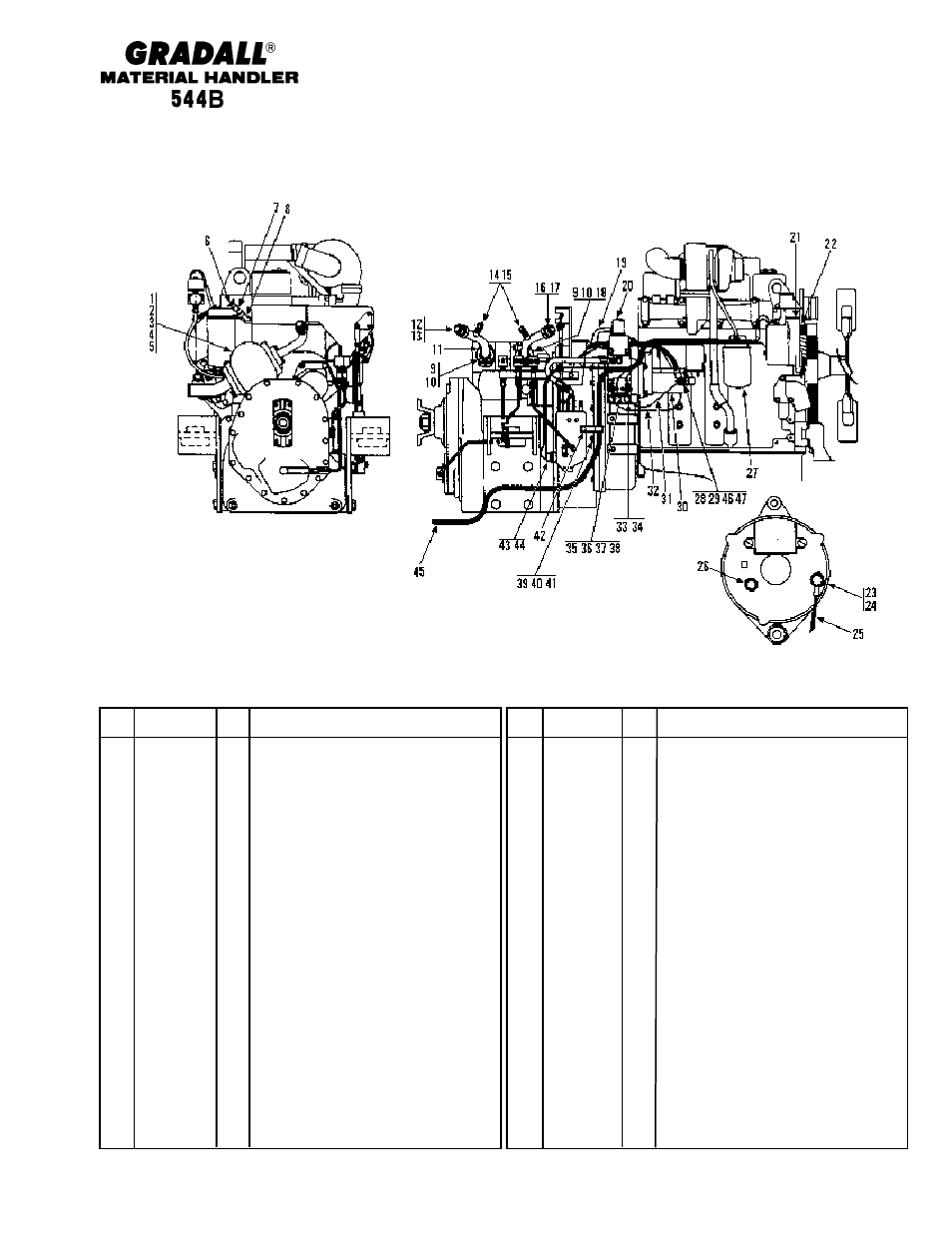

Engine Left Side View
Starting Serial No. 0155299S
Original Issue 3-90
Revised 12-29-95
5-1
Item
Part No.
Qty.
Description Of Part-
1
9104-3175
Ref
MAIN HYDRAULIC PUMP ASSY (see
page 10-22 for details)
2
7713-4059
1
PUMP GASKET
3
8820-1067
2
HEX HD CAPSCREW, 1/2-13X1/2, GR5
4
8540-1340
2
HARDENED WASHER
5
8855-1013
2
LOCKWASHER, 1/2
6
2464-1328
1
SHUT-OFF VALVE
7
8871-1383
1
REDUCING BUSHING, 1/2X3/8
8
8871-2034
1
STREET ELBOW, 45 DEGREES, 1/2
9
8820-1036
8
HEX HD CAPSCREW, 3/8-16X1-1/4,
GR5
10
8855-1011
8
LOCKWASHER, 3/8
11
8471-1369
2
FLANGE HALF
12
9105-3345
1
TUBE ASSY
13
8503-1525
1
SQUARE O-RING
14
7713-3089
2
MINI CHECK COUPLING
15
8859-1204
2
O-RING
16
9105-3344
1
TUBE ASSY
17
8366-1304
1
SQUARE O-RING
18
8471-1333
2
FLANGE HALF
19
9020-7719
1
JUMPER WIRE
20
9020-6739
Ref
SOLENOID VALVE ASSY (see page
10-14 for details)
21
8367-4109
1
ALTERNATOR ASSY
22
8367-4110
1
ALTERNATOR FAN
23
8319-1007
1
HEX HD CAPSCREW, M8X1.25X16
Item
Part No.
Qty.
Description Of Part-
24
8319-1011
1
LOCKWASHER, M8
25
9020-7497
1
JUMPER WIRE
26
8319-1019
1
HEX NUT M6x1
27
9108-4001
1
OIL FILTER (spin-on type)
28
9103-3086
1
POSITIVE BATTERY CABLE (see page
11-2 for details)
29
9103-3134
1
HEX NUT, M10X1.5
30
9104-4350
1
STARTING MOTOR ASSY
31
9020-7497
1
JUMPER WIRE
32
9020-5205
1
JUMPER WIRE
33
8319-1004
2
HEX HD CAPSCREW, M12x1.75x30
34
8319-1010
2
LOCKWASHER, M12
35
9040-2427
1
STARTER SOLENOID
36
8820-1001
2
HEX HD CAPSCREW, 1/4-20X1/2, GR5
37
8855-1009
2
LOCKWASHER, 1/4
38
8856-1107
2
FLAT WASHER, 1/4
39
9104-3342
1
STUD, M10X1.5X57MM LONG
40
8319-1015
1
HEX NUT, M10X1.5
41
8319-1013
1
FLAT WASHER, M10
42
8594-1017
1
SUPPORT CLAMP
43
8998-1036
2
PAN HD MACHINE SCREW, #8-32X3/8
44
8855-1006
2
LOCKWASHER, #8
45
9103-3079
1
WIRING HARNESS
46
7149-2134
84"
LOOM
47
8668-3122
7
TY -WRAP
