CONTROLS

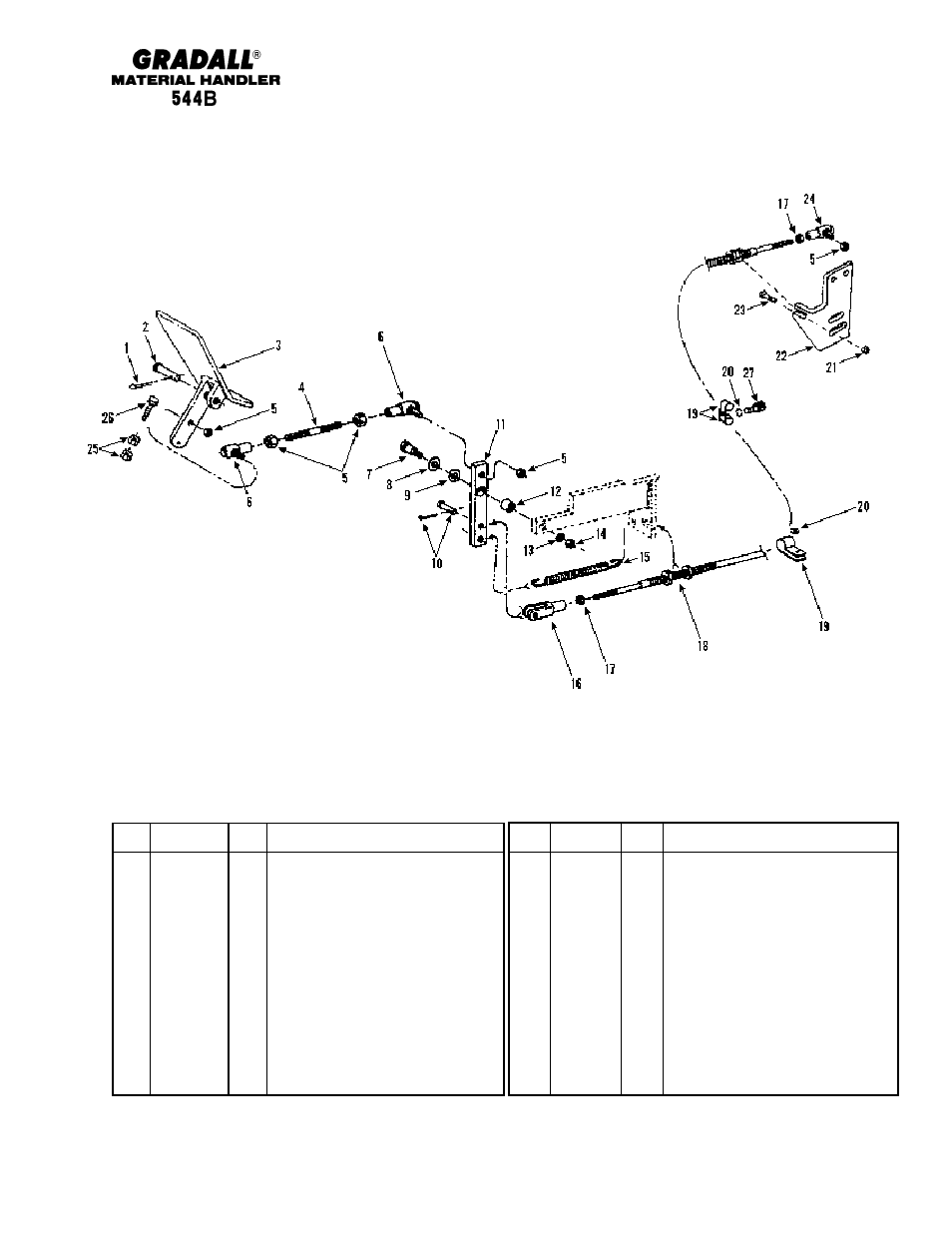

Acceleration Linkage
Starting Serial No. 0155299S
Original Issue 3-90
Revised 5-5-97
7-3
Item Part No. Qty. Description Of Part
1 8863-1318 1 COTTER PIN, 1/8X1
2 9002-1584 1 CLEVIS PIN
3 9103-6022 1 ACCELERATOR PEDAL
4 9103-1088 1 LINKAGE ROD
5 8850-1404 5 HEX NUT, 1/4-28
6 8668-3118 2 BALL JOINT
7 8825-1018 1 SOCKET HD SHOULDER SCREW,
3/8X1/2 (5/16-18 THREAD)
8 8856-1109 1 FLAT WASHER, 3/8
9 9002-8946 AR WAVY WASHER
10 9002-7685 1 CLEVIS & COTTER PIN
11 9103-1087 1 BELLCRANK
12 9103-3281 1 BEARING
13 8856-1111 1 FLAT WASHER, 1/2
14 8850-1105 1 HEAVY HEX JAM NUT, 5/16-18
Item Part No. Qty. Description Of Part
15 9020-7801 1 SPRING
16 9002-8977 1 YOKE
17 8850-1613 2 HEX NUT, #10-32
18 9104-3488 1 ACCELERATOR CABLE
19 9002-8660 3 HOSE CLIP
20 7710-4085 2 LOCKWASHER
21 8852-1305 2 HEX LOCKNUT, 5/16-18
22 9104-1560 1 CABLE & SENDER BRACKET
23 8820-1021 2 HEX HD CAPSCREW, 5/16-18X1-1/4,
GR5
24 9002-7908 1 BALL JOINT
25 8850-1110 2 HEAVY HEX JAM NUT, 5/8-11
26 8820-1106 1 HEX HD CAPSCREW, 5/8 -11X4,GR5
27 8820-1054 2 HEX HD CAPSCREW,7/16-14X2,GR5
PCN 940431-KG
*
* Changed part number on item 18.
