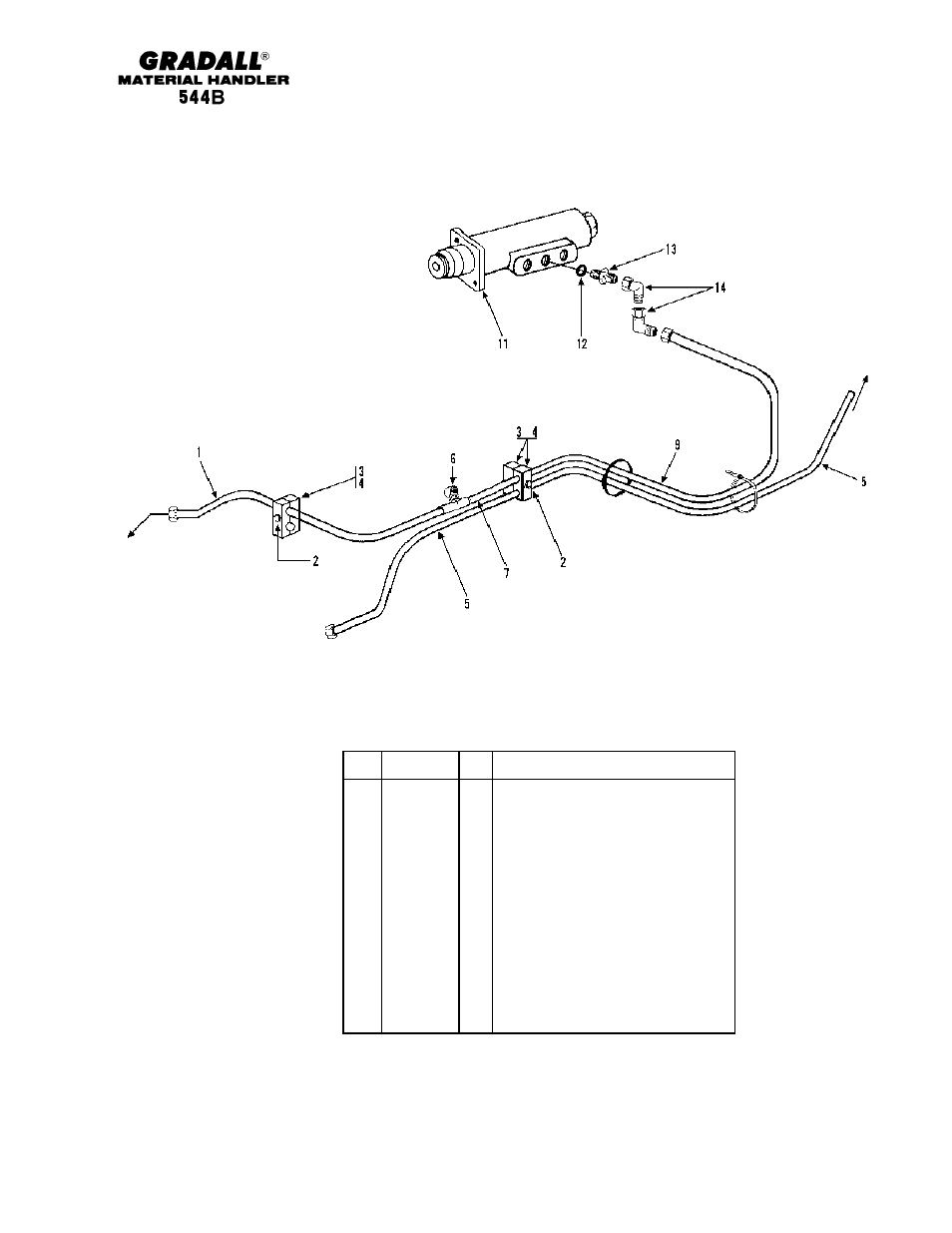

BRAKES
Hydraulics & Parking Brake Lines
Starting Serial No. 0155309S
Original Issue 7-90
PCN L-8938 8-1
Item Part No. Qty. Description Of Part
1 8471-7524 Ref HOSE ASSY (see page 6-12 for
details)
2 7713-3177 2 HEX HD CAPSCREW
3 7713-3140 2 COVER PLATE
4 7713-3139 2 CLAMP SET
5 8471-7987 1 HOSE ASSY
6 9103-3032 1 MINI-CHECK COUPLING
7 9104-3091 1 FEMALE BRANCH TEE
8 9104-3227 1 NEOPRENE GROMMET
9 8471-7523 1 HOSE ASSY
10 9002-7187 AR NYLON HOSE TIE
11 9108-3154 Ref BRAKE VALVE ASSY (see page 10-
19 for details)
12 8859-1205 1 O-RING
13 8866-2018 1 CONNECTOR (includes item 12)
14 8866-2105 2 ELBOW, 90 DEGREES (swivel nut)
TO PARKING
BRAKE VALVE
(SEE PAGE 8-2)
SEE PAGE 6-12
FOR CONTINUATION
OF SERVICE AND
PARKING BRAKE LINES.
