Gradall 544B Parts Manual User Manual
Page 106
10-7
Item
Part No.
Qty.
Description Of Part
9103-3478
2
STEERING CYLINDER ASSY
(includes all items)
9103-4301
1
SEAL KIT (includes items 5, 6, 7, 8,
10, 12, & 13 )
1
1
TUBE ASSY
2
9108-4194
1
BUSHING
3
8867-1022
1
LUBE FITTING, 90 DEGREE
4
9103-4303
1
LOCK NUT (torque to 235 ft. lbs.)
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9103-4304
1
PISTON
10
1
O-RING
11
9104-4305
1
GLAND
12
1
SEAL
13
1
WIPER
14
9104-4368
1
ROD ASSY
15
9104-3246
1
BUSHING
16
8867-1001
1
LUBE FITTING, STRAIGHT
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
HYDRAULIC COMPONENTS

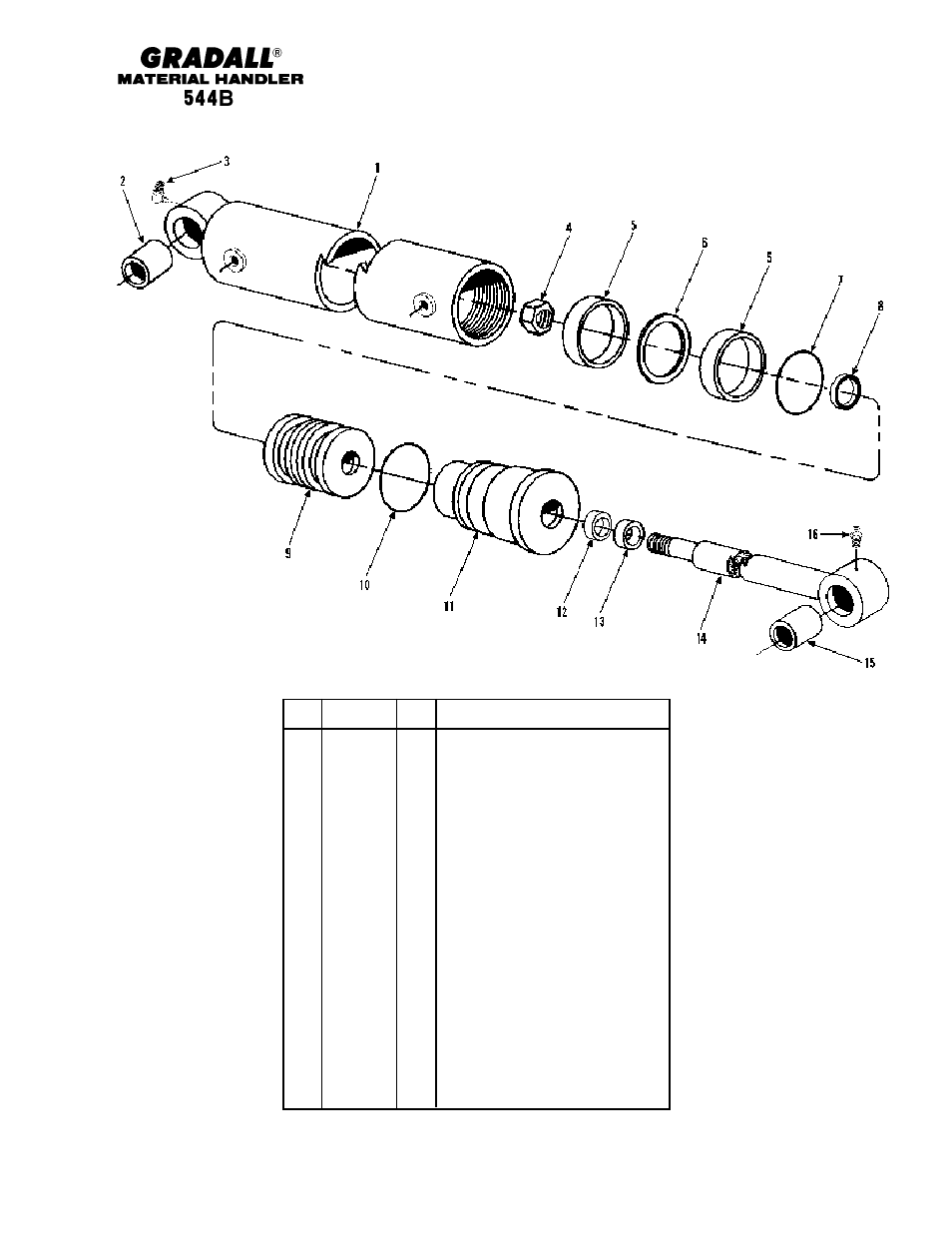

(9103-3478) Steering Cylinder
Starting Serial No. 0155382S
Original Issue 2-97
Revised 4-4-97
KG
*
* Corrected part number on Steering Cylinder Assy.
