Page 108
10-9

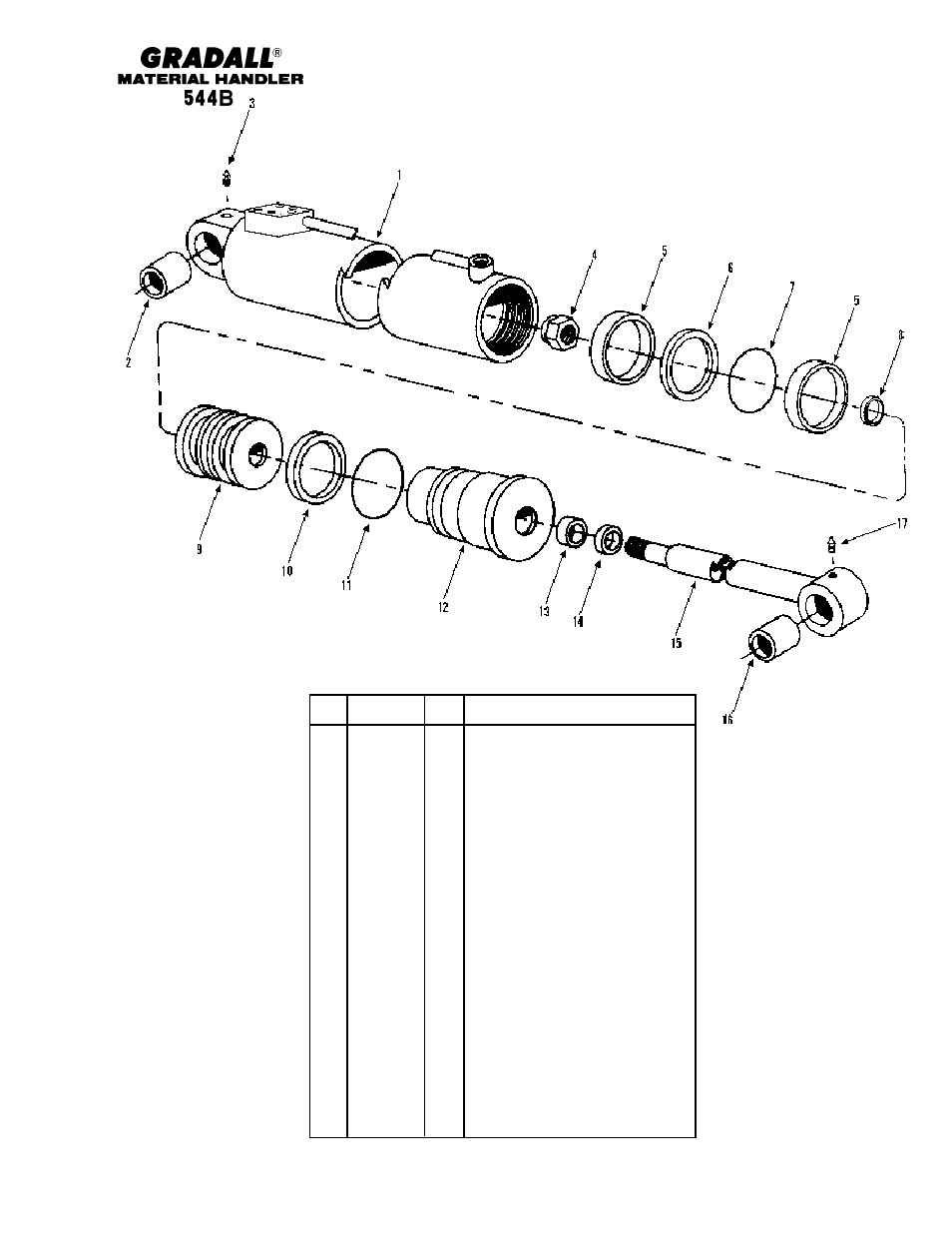

HYDRAULIC COMPONENTS
Outrigger Cylinder
Starting Serial No. 0155299S
Original Issue 3-90
Item
Part No.
Qty.
Description Of Part
9104-3305
2
OUTRIGGER CYLINDER ASSY
(includes all items)
9103-4278
1
SEAL KIT (includes items 5, 6, 7, 8,
10, 11, 13, & 14)
1
9104-4316
1
TUBE ASSY
2
9104-4371
1
BUSHING
3
8867-1018
1
LUBE FITTING, 45 DEGREES, 1/8
4
9103-4280
1
LOCK NUT (torque to 1100 ft. lbs.)
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9103-4281
1
PISTON
10
1
BACK-UP RING
11
1
O-RING
12
9103-4282
1
GLAND
13
1
SEAL
14
1
WIPER
15
9104-4317
1
ROD ASSY
16
9104-4371
1
BUSHING
17
8867-1033
1
LUBE FITTING, STRAIGHT 1/4-28
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
