Page 27

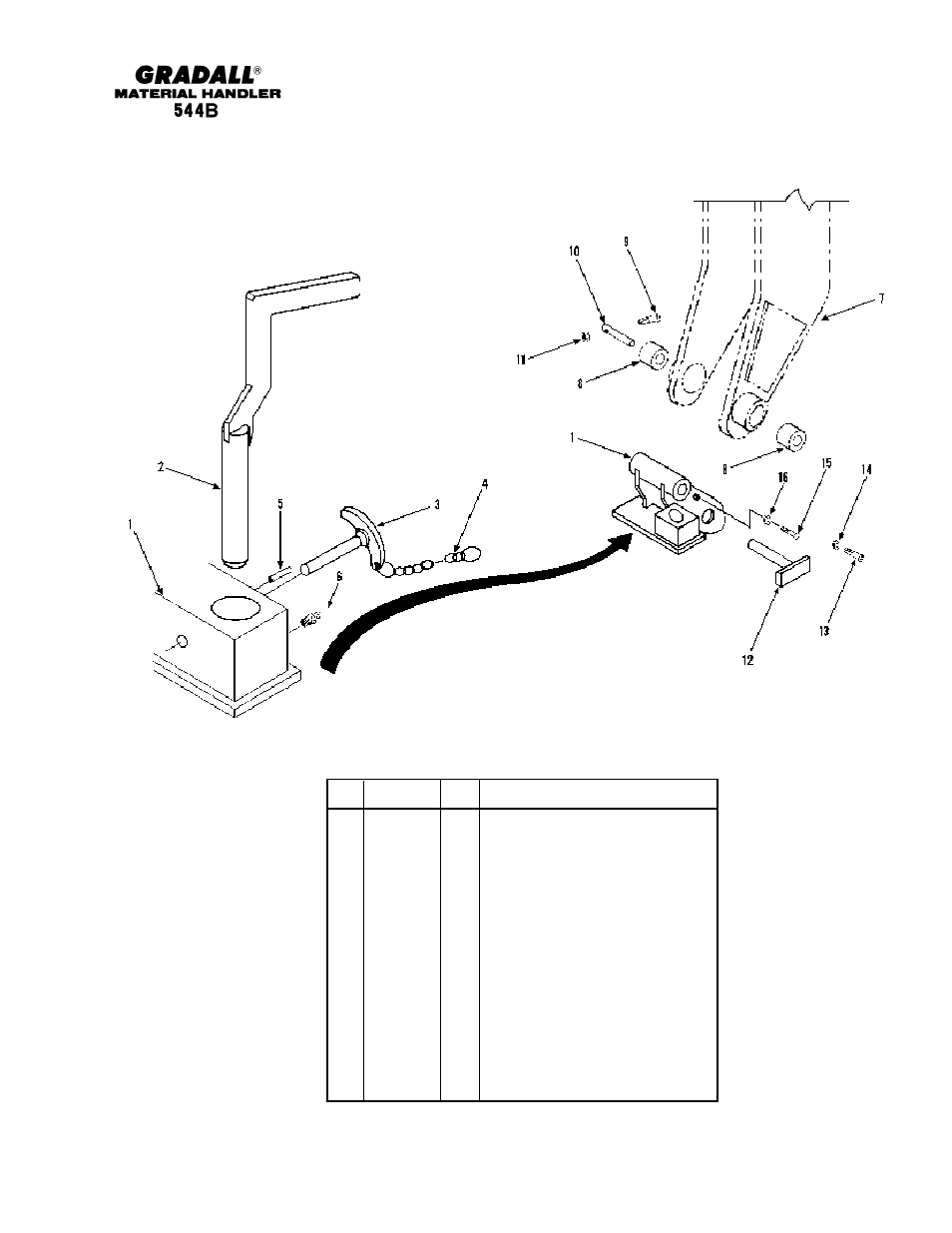

BOOMS
Quick Switch Assembly
Starting Serial No. 0155299S thru 0155421S
Original Issue 3-90
Revised 3-9-98
3-6
Item
Part No.
Qty.
Description Of Part
9104-5095
1
QUICK SWITCH ASSEMBLY
1
9108-6074
1
QUICK SWITCH WELDMENT
2
9108-6073
1
PLUNGER WELDMENT
3
9020-7902
1
QUICK RELEASE PIN
4
9103-3038
1
JACK CHAIN, 8" LONG, SIZE 12
5
8863-1509
1
ROLL PIN, 1/4"X2
6
8867-1008
1
LUBE FITTING, STRAIGHT, 1/4-28
7
9104-6020
REF FOURTH BOOM SECTION
WELMENT
8
9103-1136
REF BUSHING
9
8864-1057
1
HEX HD CAPSCREW
10
9104-1365
1
HEAD PIN
11
8852-1010
1
HEX LOCKNUT, 5/8-11
12
9020-7046
1
TILT CYLINDER ROD END PIN
13
8820-1065
2
HEX HD CAPSCREW, 1/2-13X1, GR5
14
8855-1013
2
LOCKWASHER, 1/2
15
8830-1090
1
RD. HD MACH SCREW, #10-24X1/2
16
8856-1105
1
FLAT WASHER #10
PCN 940033-JH
* Changed part number on item 1.
*
