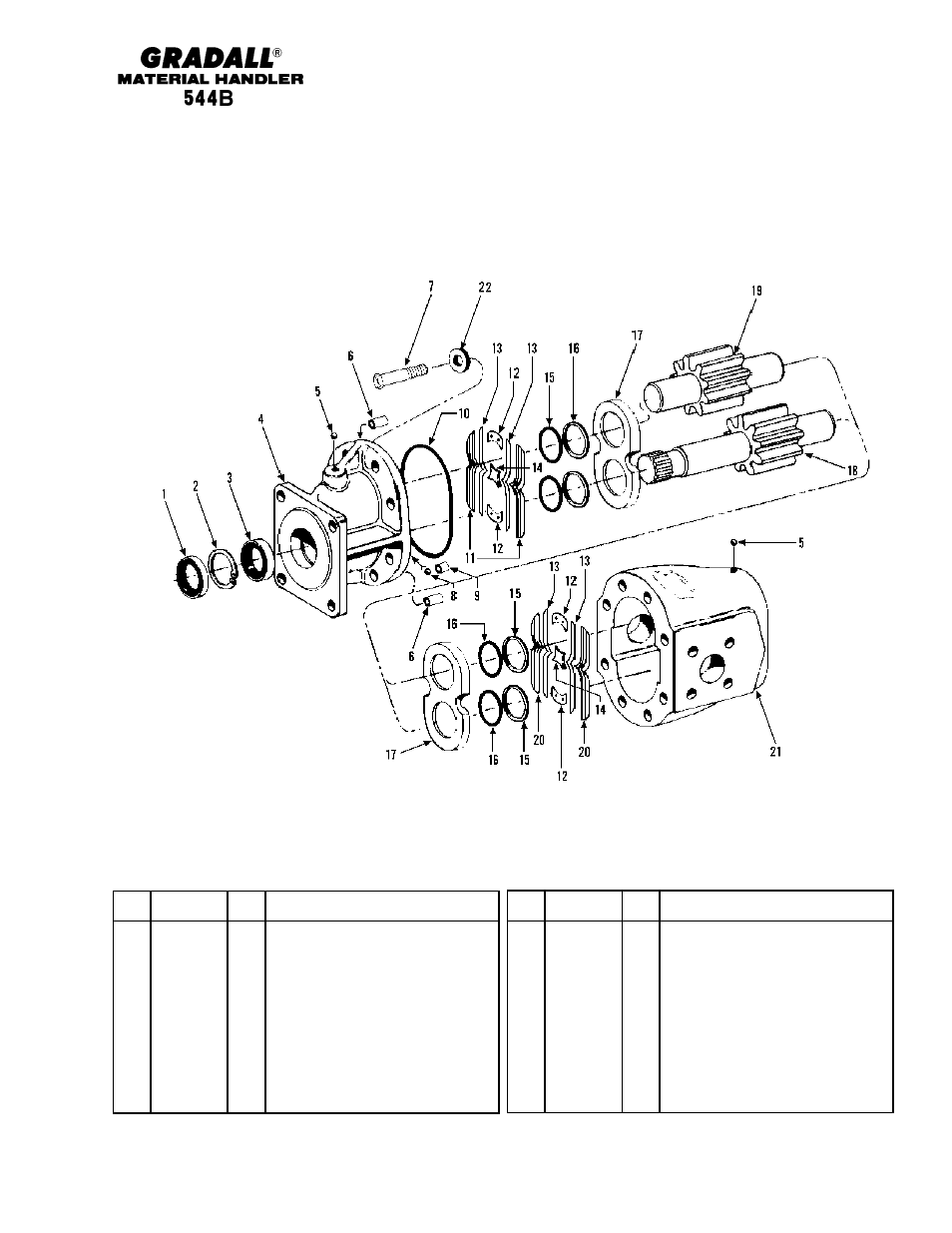

Hydraulic components rear drive motor – Gradall 544B Parts Manual User Manual
Page 126
Item
Part No.
Qty.
Description Of Part
9020-6748
2
REAR DRIVE MOTOR ASSY
(includes all items)
1
9020-2371
1
OUTER SHAFT SEAL
2
9020-2372
1
SNAP RING
3
9020-5716
1
INNER SHAFT SEAL
4
9020-8193
1
FLANGE (includes bushings)
5
9020-2435
2
BALL
6
9020-2376
2
DOWEL
7
9002-7736
8
HEX HD CAPSCREW
8
9020-2377
2
CHECK BALL
`
9
9020-2378
2
BALL CHECK RETAINER
10
9020-2379
1
O-RING
10-24
HYDRAULIC COMPONENTS
Rear Drive Motor
Starting Serial No. 0155299S
Original Issue 3-90
Item
Part No.
Qty.
Description Of Part
11
9020-2390
2
TOP ISOLATION PLATE
12
9020-2391
4
END SEPARATOR
13
9020-2393
4
SEALING STRIP
14
9020-2392
2
CENTER SEPARATOR
15
9020-8194
4
O-RING
16
9020-8195
4
BACK-UP RING
17
9020-2382
2
PRESSURE SWITCH
18
9020-8196
1
DRIVE GEAR
19
9020-8197
1
IDLER GEAR
20
9020-2389
2
BOTTOM ISOLATION PLATE
21
9020-8198
1
BODY (includes bushings)
22
9104-4222
8
SPECIAL WASHER
