Item Part No. Qty. Description Of Part
1 8830-1099 6 ROUND HD MACHINE SCREW,
#10-24X1-3/4
2 8855-1007 6 LOCKWASHER, #10
3 9104-4546 3 SWITCH
4 9104-3118 1 WIRING HARNESS ASSEMBLY
5 8594-1016 2 SUPPORT CLAMP
6 8820-1004 6 HEX HD CAPSCREW, 1/4-20X7/8, GR5
7 9104-6001 1 HOSE SUPPORT
8 8855-1009 10 LOCKWASHER, 1/4
9 8850-1004 2 HEX NUT, 1/4-20
10 9104-3161 2 NYLON TUBE FITTING, 3/4X1/2
11 9104-3119 1 WIRING HARNESS ASSEMBLY
12 A/R NYLON TUBE, 3/4 O.D.
13 Ref PUSH BEAM CABLES, (see page 3-5
for details)
14 8856-1107 8 FLAT WASHER, 1/4
15 9104-6002 1 SWITCH COVER
16 8850-1612 2 HEX NUT, #10-24
17 9104-3117 1 WIRING HARNESS ASSEMBLY
18 9104-3120 6 CUSHION CLAMP
19 8850-1008 1 HEAVY HEX JAM NUT, 1/2-13
20 8850-1008 1 HEX NUT, 1/2-13
21 9020-7041 1 SPRING RETAINER
22 9020-0313 1 SPRING
23 9104-6007 1 HOSE TAKE-UP WELDMENT
Item Part No. Qty. Description Of Part
24 Ref SOLENOID VALVE ASSEMBLY,
(see page 10-28 for details)
25 8820-1010 2 HEX HD CAPSCREW, 1/4-20X2-1/4,
GR5
26 9002-8959 6 FEMALE TERMINAL
27 9104-1014 2 JUMPER WIRE
28 8820-1008 2 HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
29 Ref SOLENOID VALVE ASSEMBLY,
(see page 10-27 for details)
30 9104-3122 1 WIRING HARNESS ASSEMBLY
31 A/R SPLIT WIRE LOOM, 1/2 I.D.
32 8668-3122 1 TY-RAP
33 9103-3079 1 WIRING HARNESS ASSEMBLY
34 9002-8960 1 MALE TERMINAL
35 9104-1554 1 JUMPER WIRE
36 9104-3199 2 SQUARE NUT, #10-24
37 Ref SERIES PARALLEL CONTROL VALVE,
(see page 10-13 for details)
38 9104-5035 1 JUMPER WIRE
39 9104-4475 3 LEVER/ROLLER ASSEMBLY
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE
11-3

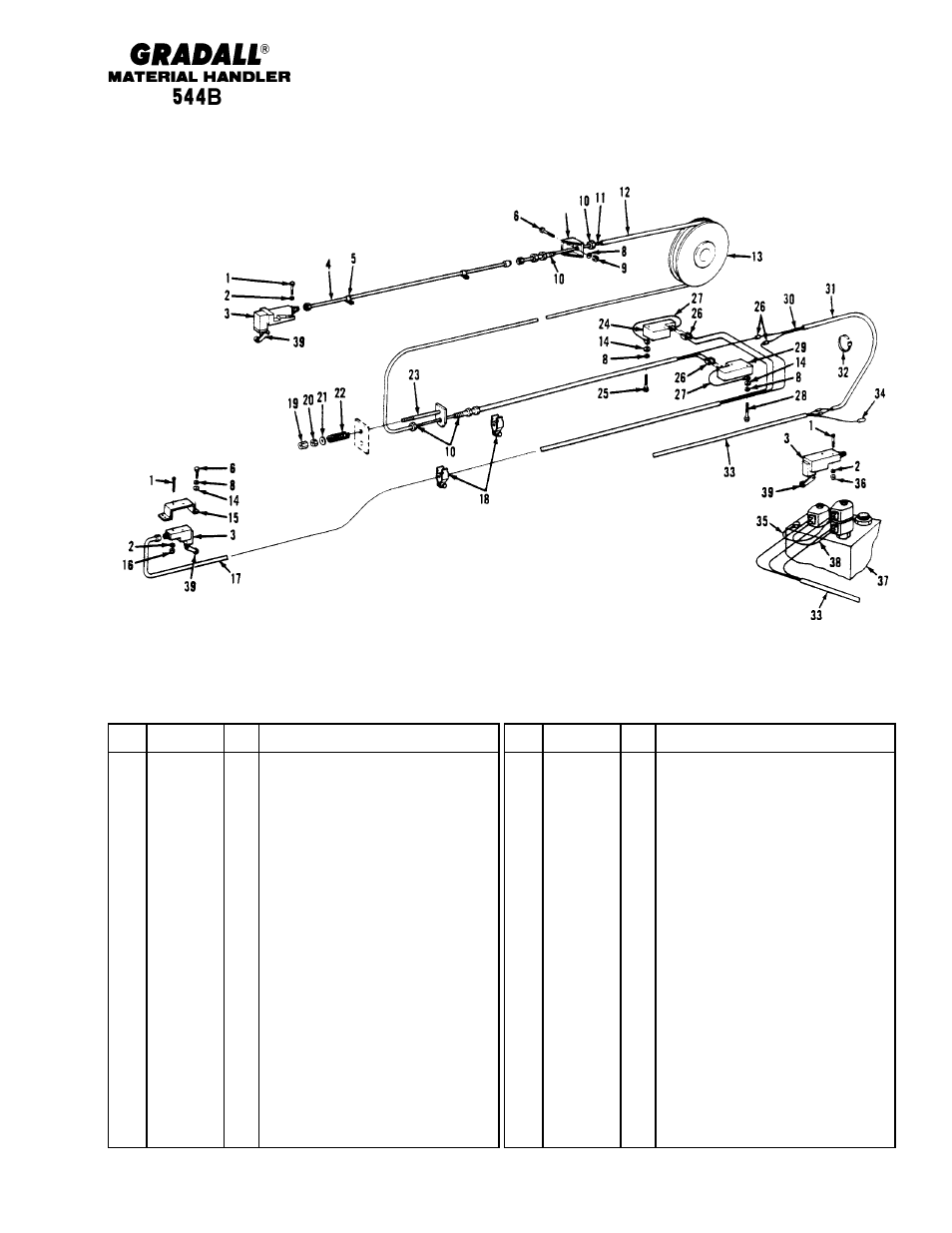

ELECTRICAL
Boom Section Wiring
Starting Serial No. 0155299S
Original Issue 3-90
Revised 11-04-05
* Revised illustration. JD
