Gradall 544B Parts Manual User Manual
Page 153
13-10

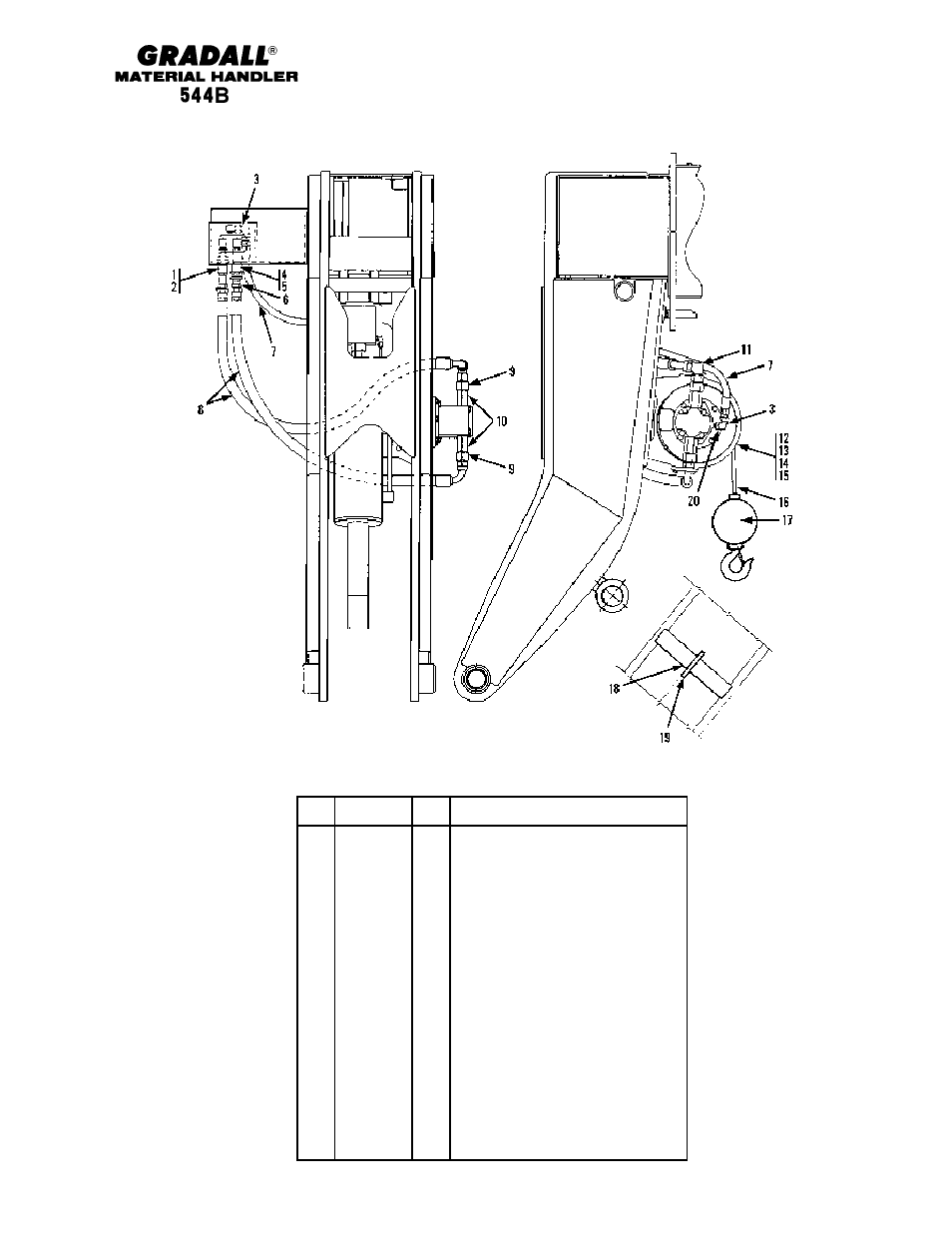

OPTIONAL EQUIPMENT
Winch & Hydraulic System
Starting Serial No. 0155299S
Original Issue 3-90
Item
Part No.
Qty.
Description Of Part
1
9020-4244
1
MALE HYDRAULIC COUPLER
2
9104-3126
1
DUST CAP
3
8866-2106
3
ELBOW, 90 DEGREES (swivel nut)
4
9020-4245
1
FEMALE HYDRAULIC COUPLER
5
9104-3125
1
DUST PLUG
6
8866-1017
2
MALE CONNECTOR, 1/2X3/4 TUBE
7
7713-3256
1
HOSE ASSY
8
8471-6404
2
HOSE ASSY
9
9103-3159
2
TUBE END REDUCER, 1 TO 3/4
10
9103-3161
2
FLOW REGULATOR
11
8866-2108
1
ELBOW, 90 DEGREES (swivel nut)
12
Ref
WINCH ASSY (see pages 13-12 &
13-13 for details)
13
8820-1069
4
HEX HD CAPSCREW, 1/2-13X2, GR5
14
8855-1013
4
LOCKWASHER, 1/2
15
8850-1008
4
HEX NUT, 1/2-13
16
9020-7882
1
CABLE
17
9020-1443
1
HOOK & BALL
18
9103-1077
1
BAR
19
9102-1009
1
RING
20
8866-1011
1
MALE CONNECTOR, 1/4X1/2 TUBE
