Page 36
Item
Part No.
Qty.
Description Of Part-
1
9103-6051
1
FAN GUARD
2
8820-1003
2
HEX HD CAPSCREW, 1/4-20x3/4, GR5
3
8855-1009
2
LOCKWASHER, 1/4
4
8856-1107
2
FLAT WASHER, 1/4
5
8507-1128
3
HOSE CLAMP
6
9104-3345
1
UPPER RADIATOR HOSE
7
8688-3327
1
HOSE CLAMP
8
9104-3320
1
LOWER RADIATOR HOSE
9
8452-1056
1
DRAIN VALVE
10
9002-8492
2
ELBOW, 90 DEGREES
11
8471-7570
1
HOSE ASSY
12
9020-7622
1
HOSE GUARD
13
8471-7571
1
HOSE ASSY
14
8866-1118
2
MALE ELBOW, 90 DEGREES 3/4X3/4
TUBE
Item
Part No.
Qty.
Description Of Part-
15
8667-1609
1
RADIATOR CAP (7 PSI)
16
9103-3254
1
RADIATOR
17
8852-1305
8
HEX LOCKNUT, 5/16-18
18
8856-1108
8
FLAT WASHER, 5/16
19
9103-3137
2
SHOCK MOUNT
20
8820-1022
4
HEX HD CAPSCREW, 5/16-18X1-1/2,
GR5
21
9100-6016
1
LEFT RADIATOR MOUNT
9100-6017
1
RIGHT RADIATOR MOUNT
22
8820-1039
4
HEX HD CAPSCREW, 3/8-16X2, GR5
23
8368-3308
4
SHOCK MOUNT
24
9020-5918
8
SPECIAL WASHER
25
8852-1206
4
HEX LOCKNUT, 3/8-16
5-5

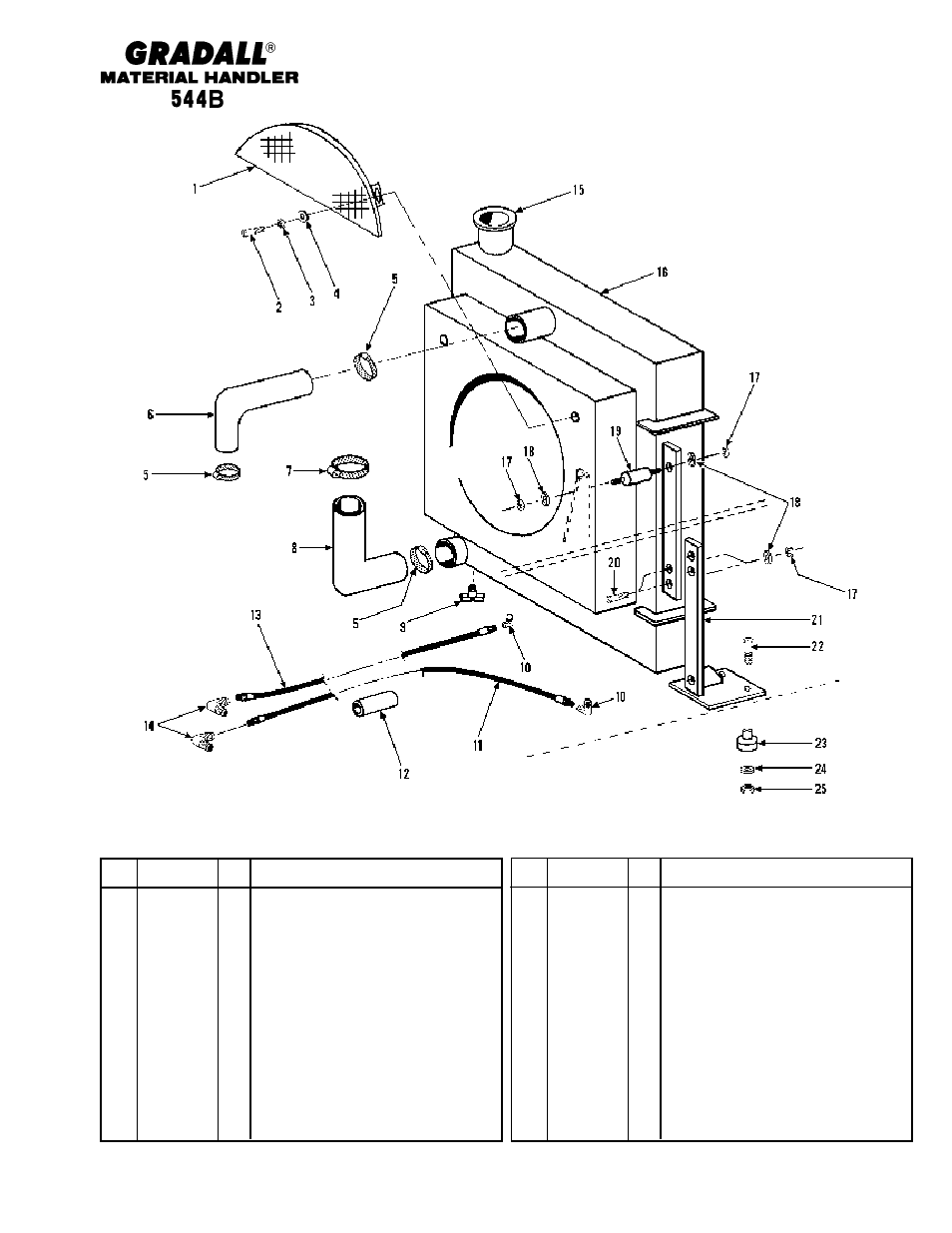

ENGINE & ATTACHING PARTS
Radiator & Hoses
Starting Serial No. 0155299S
Original Issue 3-90
