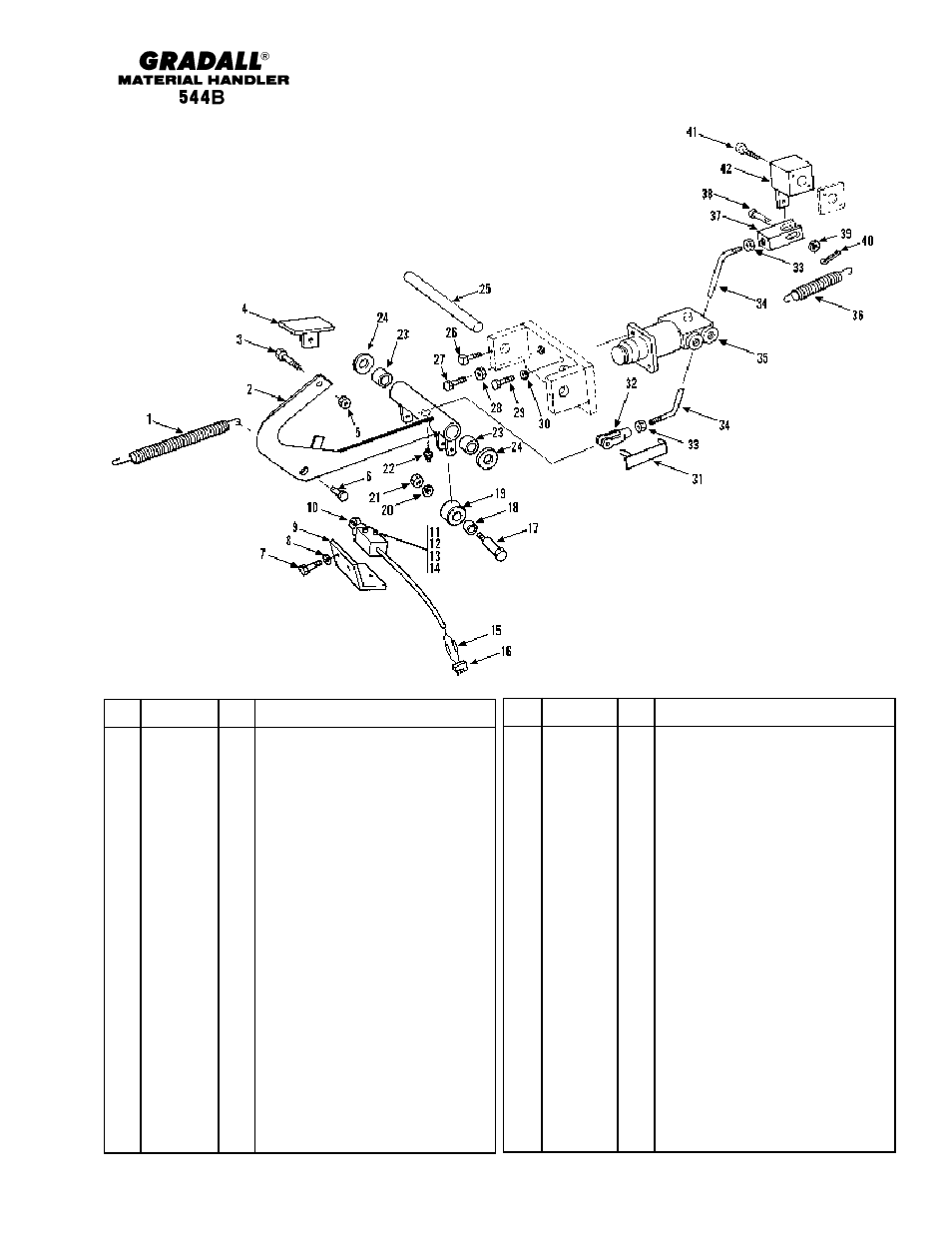

BRAKE
Brake Pedal & Inching Linkage
Starting Serial No. 0155299S
Original Issue 3-90
Revised 4-92
PCN L-9207
8-3
Item
Part No.
Qty.
Description Of Part
1
9104-3214
1
RETURN SPRING
2
9104-6083
1
BRAKE LEVER WELDMENT
3
8820-1068
1
HEX HD CAPSCREW, 1/2-13X1-3/4,
GR5
4
9020-1463
1
PEDAL WELDMENT
5
8850-1008
1
HEX NUT, 1/2-13
6
9104-1402
1
SPECIAL CLEVIS PIN
7
8820-1003
2
HEX HD CAPSCREW, 1/4-20X3/4,
GR5
8
8855-1009
2
LOCKWASHER, 1/4
9
9104-1431
1
SWITCH MOUNTING BRACKET
10
9103-3439
1
TRANSMISSION DISCONNECT
SWITCH
11
8821-1032
2
SOCKET HD CAPSCREW, #10-24,
GR8
12
8856-1105
2
FLAT WASHER, #10
13
8855-1007
2
LOCKWASHER, #10
14
8850-1612
2
HEX NUT, #10-24
15
8668-3480
2
CRIMP-ON CONNECTOR
16
8348-3114
1
MALE CONNECTOR
17
8825-1023
1
SOCKET HD SHOULDER SCREW,
3/81-1/2, 5/16-18 THREAD
18
9104-3086
1
BEARING
19
9104-1196
1
ROLLER
20
8855-1010
1
LOCKWASHER, 5/16
21
8850-1005
1
HEX NUT, 5/16-18
22
8867-1008
1
LUBE FITTING, STRAIGHT, 1/4-28
Item
Part No.
Qty.
Description Of Part
23
9020-0290
2
BEARING
24
9002-8662
2
WASHER
25
9020-1562
1
PIN
26
8844-1001
2
SQUARE HD SET SCREW,
1/4-20X1/2 (cup point)
27
8820-1038
1
HEX HD CAPSCREW, 3/8-16X1-3/4,
GR5
28
8850-1106
1
HEX JAM NUT, 3/8-16
29
8319-1028
2
HEX HD CAPSCREW, M8X1.25
30
8319-1011
2
LOCKWASEHR, M8
31
9002-7987
1
CLEVIS PIN
32
8882-1004
1
ADJUSTABLE YOKE END, 3/8-24
33
8850-1406
2
HEX JAM NUT, 5/16-24
34
9103-1085
1
ROD
35
Ref
BRAKE VALVE ASSY (see page
10-19 for details)
36
9020-7801
1
SPRING
37
9104-1424
1
SPECIAL YOKE END
38
9104-1425
1
SPECIAL CLEVIS PIN
39
8856-1004
1
FLAT WASHER, 3/8
40
8863-1303
1
COTTER PIN, 1/16X1
41
8821-2228
2
SOCKET HD CAPSCREW, 5/16-
18X1-1/4, GR8
42
9103-3096
1
INCHING VALVE
9103-4018
1
INCHING VALVE SEAL KIT
