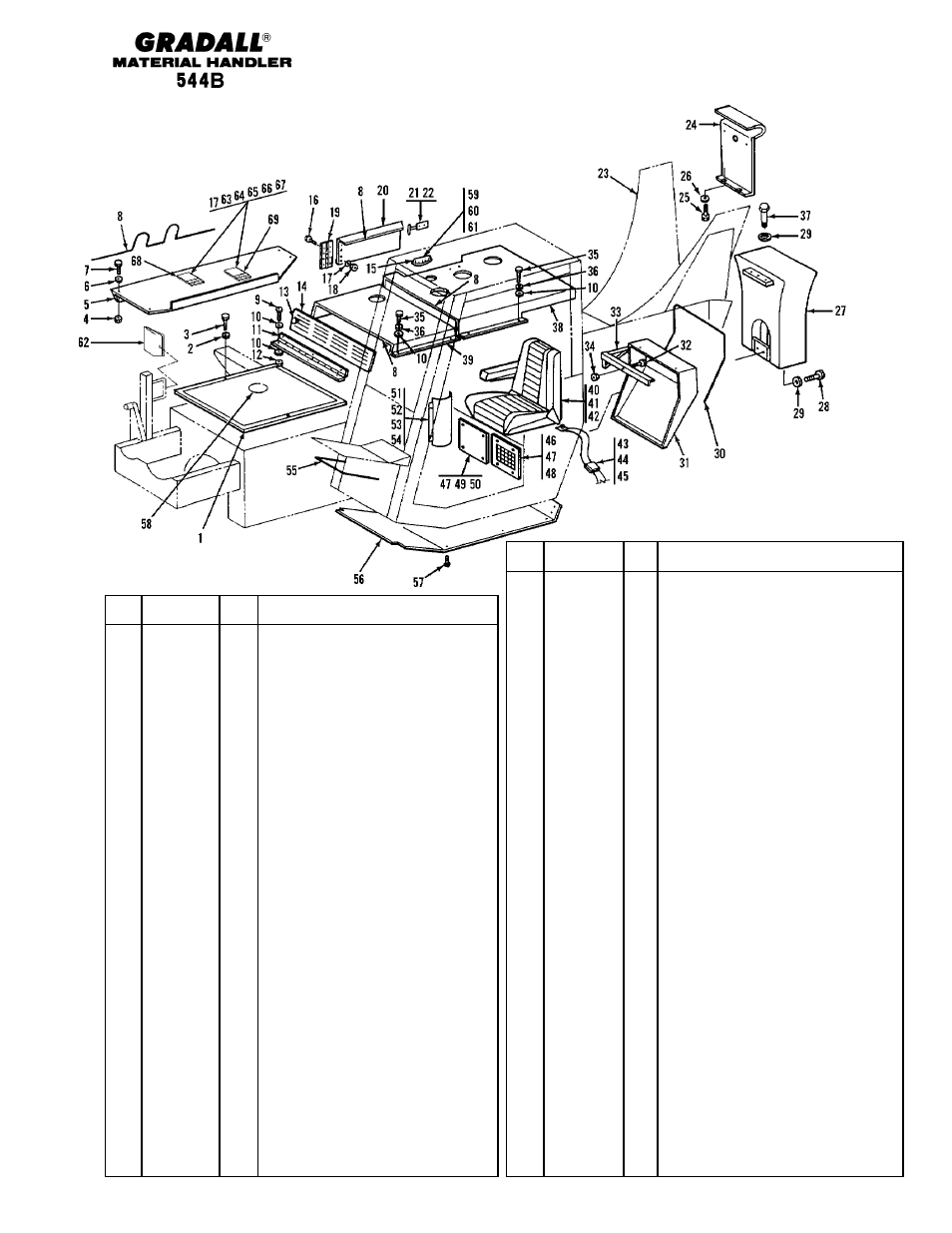

CHASSIS & ATTACHING PARTS
Frame Shrouding & Trim
Starting Serial No. 0155299S
Original Issue 3-90
Revised 2-12-97
Item
Part No.
Qty.
Description Of Part
35
8820-1003
8
HEX HD CAPSCREW, 1/4-20X3/4 GR5
36
8855-1009
8
LOCKWASHER, 1/4
37
8820-1118
2
HEX HD CAPSCREW, 3/4-10X3-3/4
GR5
38
9104-5027
1
REAR HOOD ASSY (includes items 16
thru 20)
39
9103-6016
1
FRONT HOOD ASSY
40
9103-3485
1
SEAT (standard)
9112-4107
1
SLIDE ADJ. KIT
9104-3237
1
SEAT W/BELTS (optional)
41
8667-1164
2
SPACER
42
7714-3006
4
LOCK NUT
43
9103-3029
1
SEAT BELT
44
8820-1050
2
HEX HD CAPSCREW, 7/16-14X1 GR5
45
8850-1007
2
HEX NUT, 7/16-14
46
9020-5746
1
HEATER COVER
47
7714-3003
8
LOCK SCREW
48
7714-3006
4
LOCK NUT
49
7710-3044
4
CLIP NUT
50
9020-5730
1
VALVE COVER
51
9104-6056
1
JOYSTICK COVER
52
8820-1018
2
HEX HD CAPSCREW, 5/16-18X3/4,
GR5
53
8855-1010
2
LOCKWASHER, 5/16
54
8850-1005
2
HEX NUT, 5/16-18
55
9020-6196
AR
TRIM, 4 FT. LONG
56
9103-1363
1
CAB BOTTOM COVER
57
7714-3003
1
LOCK SCREW
58
9020-6200
AR
TRIM, 15.7" LONG
59
8820-4912
1
HEX HD CAPSCREW, 1/4-20X1 GR5
60
8856-1107
1
FLAT WASHER, 1/4
61
8852-1204
1
HEX LOCKNUT, 1/4-20
62
8368-3291
1
MIRROR (starting S/N 0155436. For
earlier models use service kit
9104-5150)
63
8507-1132
2
SEMI OFFSET HINGE
64
8507-1028
2
SPRING & BRACKET
65
8830-1092
8
RD HD MACH SCREW, 10-24X5/8
66
8855-1007
8
LOCKWASHER, #10
67
8850-1612
8
HEX NUT, #10-24
68
9103-1456
1
SERVICE DOOR
69
9103-1457
1
SERVICE DOOR
Item
Part No.
Qty.
Description Of Part
1
9103-5096
1
DECK ASSY
2
8855-1010
2
LOCKWASHER, 5/16
3
8820-1021
2
HEX HD CAPSCREW, 5/16-18X1-1/4,
GR5
4
8852-1308
4
HEX LOCKNUT, 1/2-13
5
9103-1260
1
TANK COVER
6
8540-1340
4
HARDENED WASHER
7
8820-1066
4
HEX HD CAPSCREW, 1/2-13X1-1/4
GR5
8
9020-6196
AR
TRIM, 11 FT. LONG
9
8826-1017
6
SOCKET BUTTON HD CAPSCREW
1/4-20X7/8
10
8856-1107
16
FLAT WASHER, 1/4
11
9103-1075
1
HINGE
12
8852-1304
6
HEX LOCKNUT, 1/4-20
13
8368-3311
2
PAWL LATCH
14
9103-1074
1
FRONT SERVICE DOOR
15
9103-3320
1
LEVEL GAUGE
16
8826-1009
8
SOCKET BUTTON HD CAPSCREW,
#10-24X5/8
17
8856-1105
16
FLAT WASHER, #10
18
8852-1605
8
HEX LOCKNUT, #10-24
19
9103-3077
1
HINGE
20
9103-1067
1
SIDE SERVICE DOOR
21
9020-7458
2
DRAW LATCH
22
9002-8951
8
POP RIVET
23
9104-6032
1
FRAME WELDMENT
24
9104-1080
1
BOOM COVER
25
8820-1031
4
HEX HD CAPSCREW, 3/8-16X1/2 GR5
26
8856-1109
4
FLAT WASHER, 3/8
27
9104-0002
1
COUNTERWEIGHT
28
8820-1115
3
HEX HD CAPSCREW, 3/4-10X3 GR5
29
8856-1009
3
FLAT WASHER, 3/4
30
9020-6194
AR
TRIM, 8 FT. LONG
31
9103-6079
1
REAR CAB COVER
32
7714-3004
3
LOCK SCREW
33
9060-2885
1
BRACKET
34
7714-3006
3
LOCK NUT
2-1
* Changed quantity on item 17, added items 63 thru 69.
*
*
*
*
*
*
*
*
