DRIVE TRAIN
Wheels & Tires
Starting Serial No. 0155309S
Original Issue 7-90
Revised 4-3-95
6-16

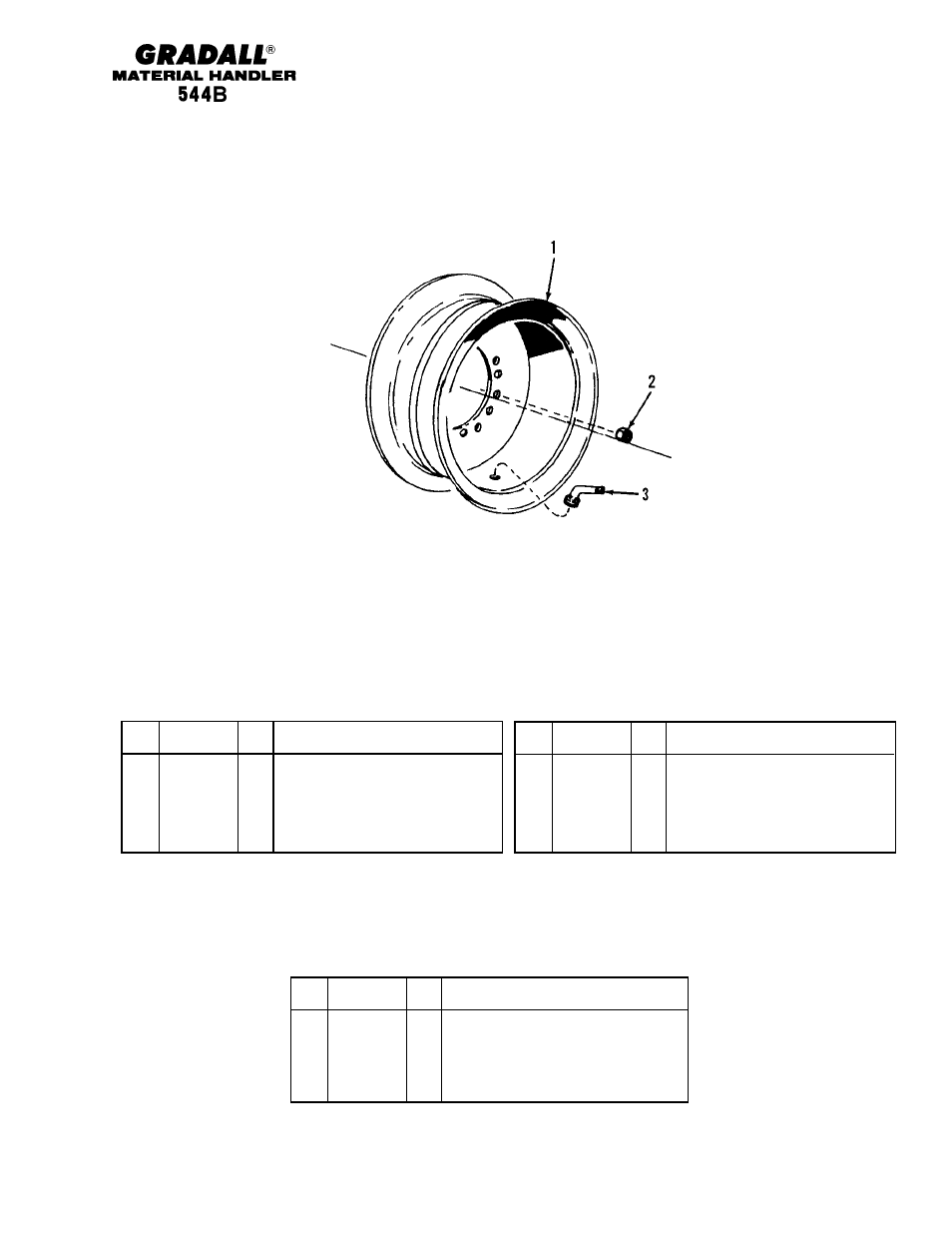

FRONT-STANDARD REAR-STANDARD
FRONT-FLOATATION
Item Part No. Qty. Description Of Part
1 9104-3292 1 RIM, 14.00 X 25
2 9104-3146 10 LUG NUT (lubricate and torque to
350-400 ft. lbs.)
3 9020-1452 1 VALVE (air / liquid)
9103-3361 1 TIRE, 17.5 X 25, (L-2 Michelin radial)
(not illustrated)
Item Part No. Qty. Description Of Part
1 9104-3298 1 RIM, 9.00 X 24
2 9104-3146 12 LUG NUT (lubricate & torque to 350-
400 ft.lbs.)
3 9108-3385 2 VALVE (air/liquid)
4 9104-3084 1 TIRE, 14.00 X 24, 12 PLY (G-2
Grader tubeless)(not illustrated)
Item Part No. Qty. Description Of Part
1 9104-3298 1 RIM, 9.00 X 24
2 9104-3146 12 LUG NUT (lubricate & torque to 350-
400 ft.lbs.)
3 9108-3385 2 VALVE (air/liquid)
4 9104-3084 1 TIRE, 14.00 X 24, 12 PLY (G-2
Grader tubeless)(not illustrated)
*
* *
KG * Changed Valve part number on front & rear standard, also changed tire description on front floatation.
